rEcliNiNg TrayS

spiral trays are complete with a leverage system that
enables the operator to recline them to the bottom to
facilitate the load cycle.
Just lock the leverage system by means of a screw in the
position in which it is most convenient for you to keep the
tray horizontal.
trays can not be reclined.
multimax

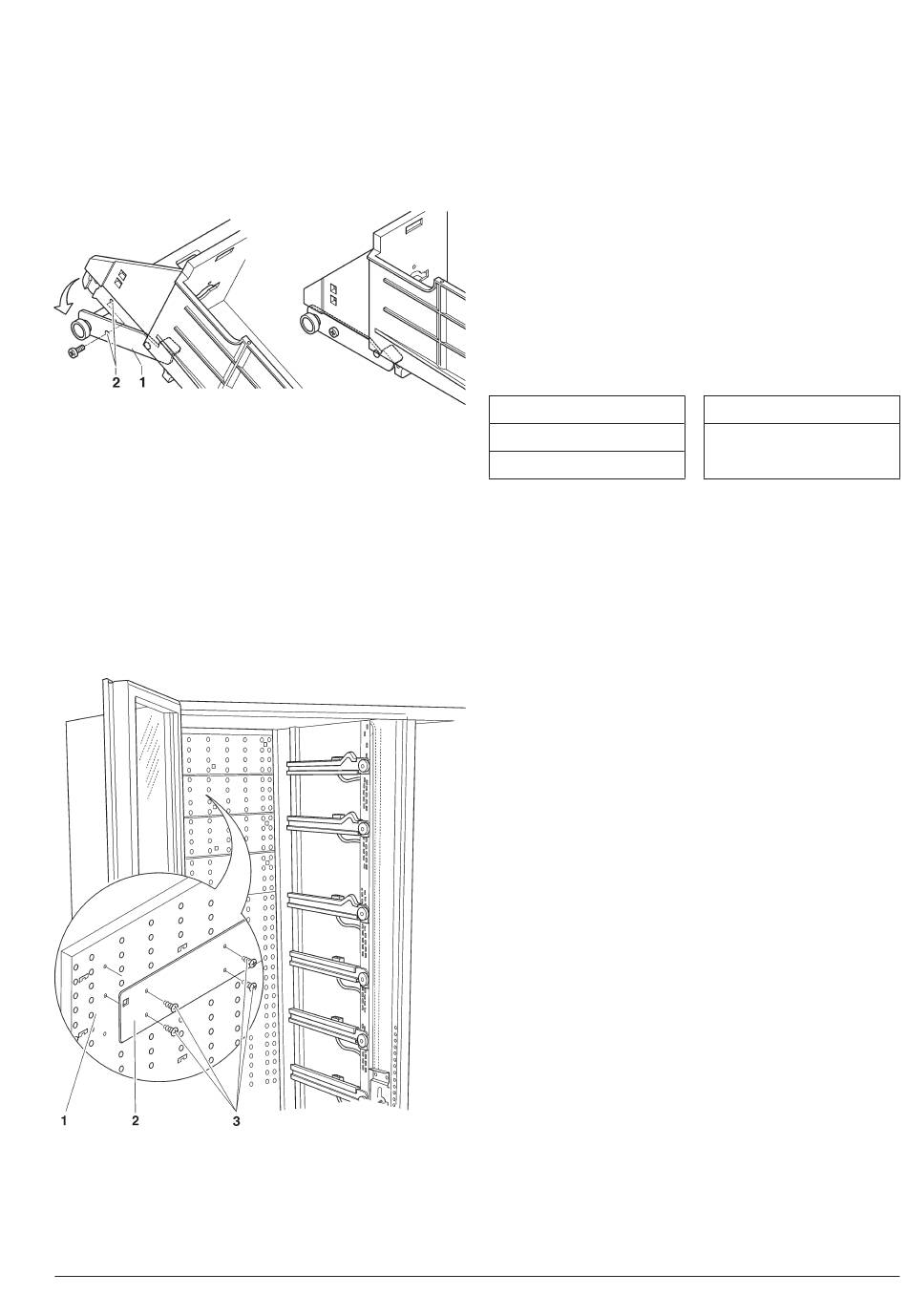

Fig. 37
1- Reclining tray lever
2- Lever locking holes (horizontal trays)

box coNfiguraTioN

Cool air is dispensed by the grid at the back of the box
(behind the trays).
The machine is supplied with shutters intended to vary
the stratification level of the box temperature.
Fasten the shutters on the grid intended to dispense cool
air by using all eight fastening screws.
Fig. 38
1- Cold air distribution grid
2- Shutter
3- Shutter fastening screws (8 per shutter)
© by N&W GLOBAL VENDING S.p.A.
uNiform tEmpEraturE
If you wish to have a uniform temperature in the box
(8-16°C or 0-4°C if the food management is active), the
grid intended to dispense cool air shall be completely
open (never assemble the shutters)
stratifiED tEmpEraturE
If the food management is enabled, the machine can
have up to 3 areas at various temperatures in its maxi-
mum configuration.
The shutters shall be consecutively arranged behind the
trays on the grid intended to dispense cool air. The strati-
fication level varies according to the number and position
of the shutters.
The table shows the configurations that have been ex-
perimentally established by the manufacturer.
3-area configuration
8-16°c closed grid
0-4°c open grid
5-8°C closed grid
The temperature is software-controlled on the "food"
area (0-4°C); the temperature is correspondingly distrib-
uted in the remaining areas
47
2-area configuration
8-16°c closed grid
0-4°c open grid
