ElEcTric coNNEcTioN
the machine is arranged for electrical operation at a 230
V~ single-phase voltage and it is protected by T6.3A
fuses.
For connection make sure that the rating will comply with
the mains data, in particular:
the supply voltage value shall lie within the limits rec-
-
ommended for the connection points;
the main switch shall be featured in such a way that it
-
can support the maximum load required and to ensure
omnipolar disconnection from the mains with an open-
ing gap of the contacts of min. 3 mm.
The switch, the power socket and the correspond-
ing plug shall be located in an accessible position.
The electrical safety of the machine is only ensured
when the machine is correctly and efficiently grounded
according to the safety standards in force.
It is necessary to check this fundamental safety
requirement and, in case of doubt, to require pro-
fessionally qualified personnel to check the instal-
lation carefully.
The supply cable is of the type with a fixed plug. If neces-
sary, the connection cable (see fig. 19) shall be replaced
by qualified personnel by using only cables of the HO5
RN - F or HO5 V V-F or H07 RN-F type, 3x1-1.5 mm2 in
cross-section.

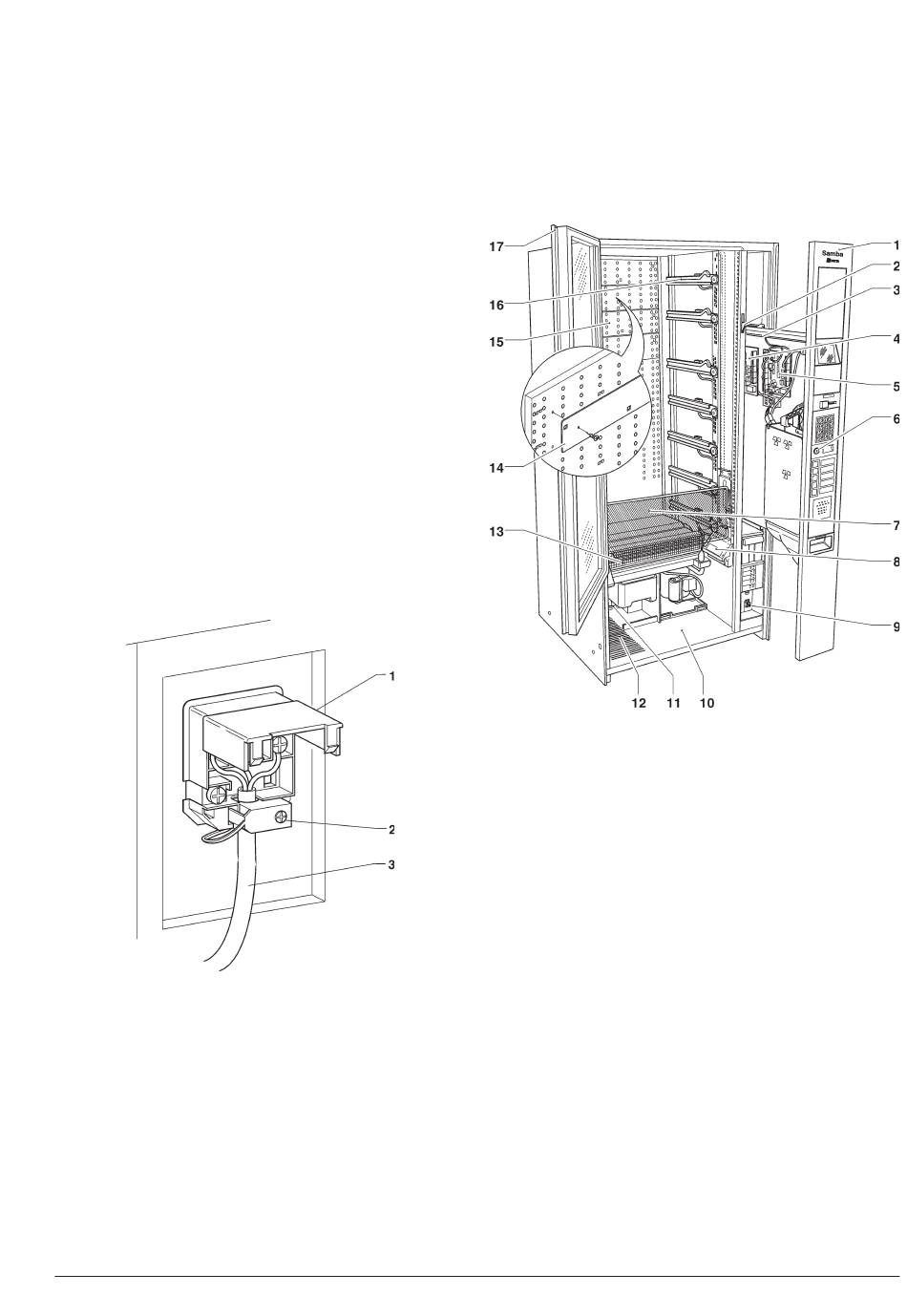

Fig. 19
1-
Lift cover
2-
Cable clamp
3-
Mains cable
It is forbidden to use adapters, multiple sockets
and/or extensions.
THE maNufacTurEr Will diSclaim all rE-
SPoNSibiliTy for aNy damagE cauSEd by THE
NoN-obSErVaNcE of THE PrEcauTioNS mEN-
TioNEd aboVE
© by N&W GLOBAL VENDING S.p.A.

iNTErNal comPoNENTS

The evaporator unit on the shelf of the refrigerated box is
composed by two fans, the evaporator, the air conveyor
and the water retaining trap beneath the evaporator.
The C.P.U. (central process unit) board inside the pay-
ment system compartment is intended to manage the
various functions of the dispensing machine.
Fig. 20
1-
Slide-in compartment
2-
safety actuator
Softvend
3-
Current regulator board
4-
Actuation board
5-
CPU board
6-
Lock and grip of the slide-in compartment
7-
S
(optional)
oftvend
8-
Photocells (optional)
9-
Main switch
10-
Housing of the product dispensing compartment
11-
Cooling unit condenser
12-
Ventilation grid
13-
Cooling unit evaporator
14-
Removable shutters of the cold air grid
15-
Cold air distribution grids
16-
Tray guides
17-
Glassfront opening grip
