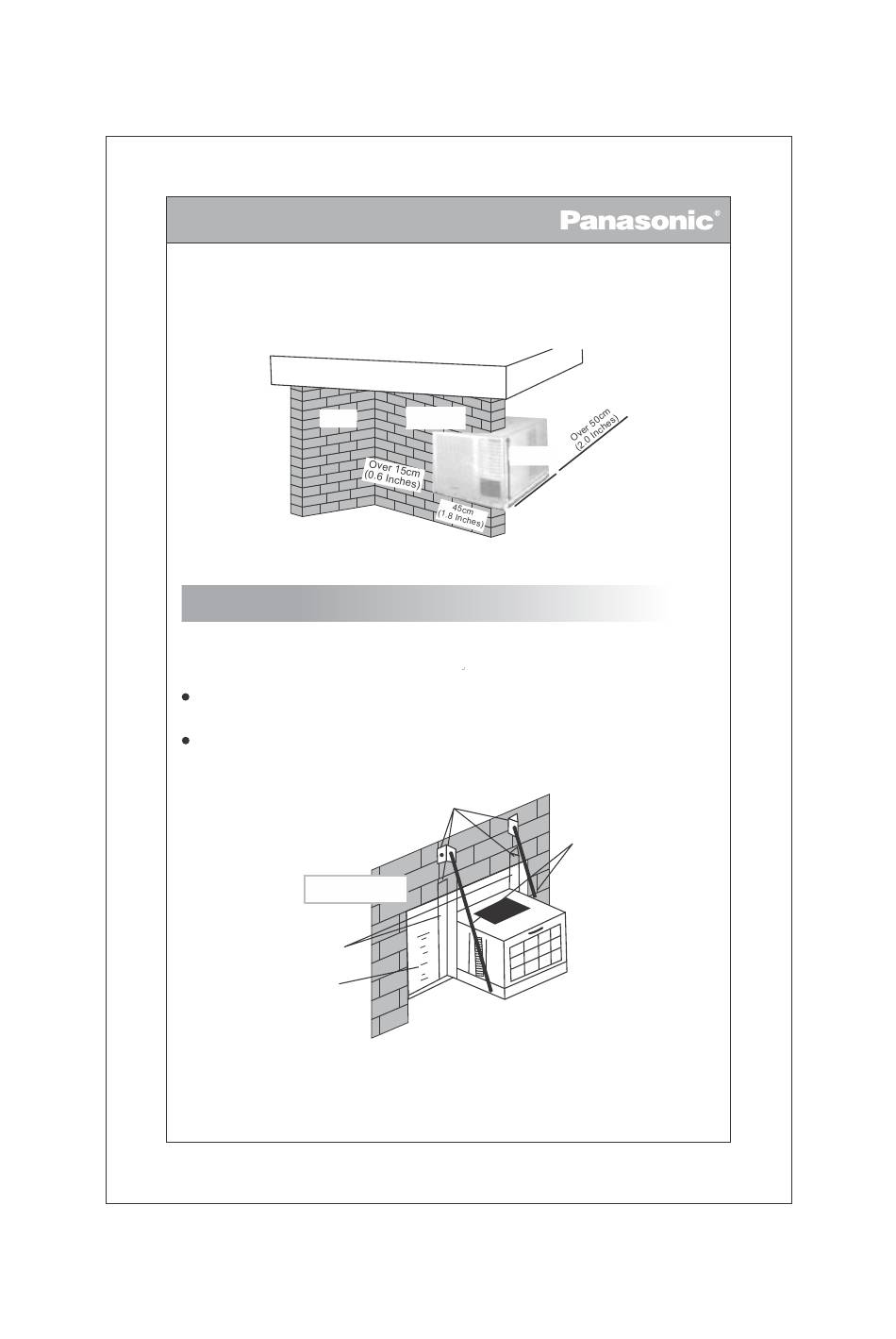

A/C INSTALLATION
Do not install the unit near a heat source, steam source and flammable gas.
Select a location where the power supply is within 1.5 metres (59 Inches).
Prepare the installation hole slightly bigger than the actual cabinet size.
Ensure that the minimum distances around the unit are maintained as shown below.
WALL
INSTALLING THE UNIT
For testing purpose and enhanced performance use the Installation
guidelines given below
The unit should be inclined 15-20mm (0.6-0.8 Inches) towards the back
for optimum performance.
For optimum performance Drain should be plugged.
concrete wall
Vertical
supporting bar
Glass window
or thin partition
CEILING
Over 15cm
(0.6 Inches)
34.6cm
(1.4 Inches)
(2.3 Inches)
Less than 20 cm (0.8 Inches)
fixed to concrete wall
External view of air-conditioner
installation
-: 7 :-
Fence
58cm
or likewise
Side
supporting
bar
