Paxton TOUCHLOCK Compact K Series Quick Start Manual page 3

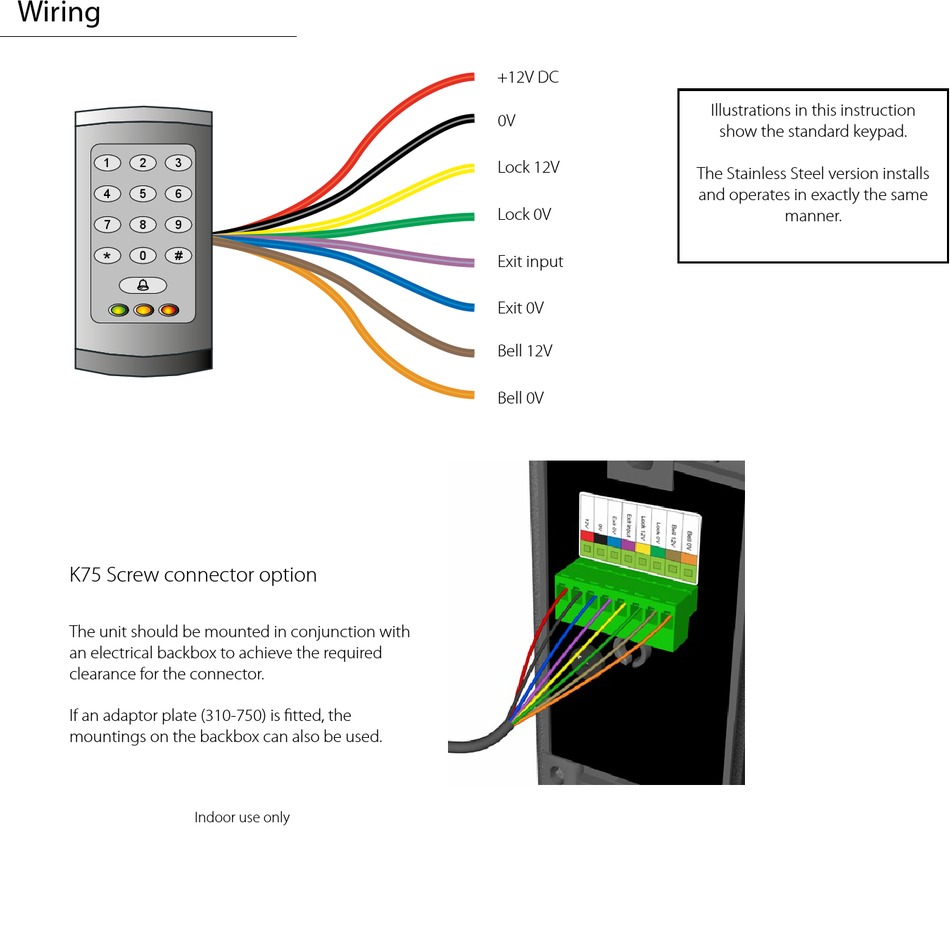

Wiring
1 2 3
4 5 6
7 8 9
*
0 #

K75 Screw connector option
The unit should be mounted in conjunction with
an electrical backbox to achieve the required
clearance for the connector.
If an adaptor plate (310-750) is fitted, the
mountings on the backbox can also be used.
Indoor use only
+12V DC
0V
Lock 12V
Lock 0V
Exit input
Exit 0V
Bell 12V
Bell 0V
Illustrations in this instruction
show the standard keypad.
The Stainless Steel version installs
and operates in exactly the same
manner.
