Paxton TOUCHLOCK Compact K Series Quick Start Manual page 2

Quickstart guide
This supplement is a brief guide to installing a TOUCHLOCK K series compact system. Further information is available
for download at: http://paxton.info/140 or call the communications team on: 01273 811011.

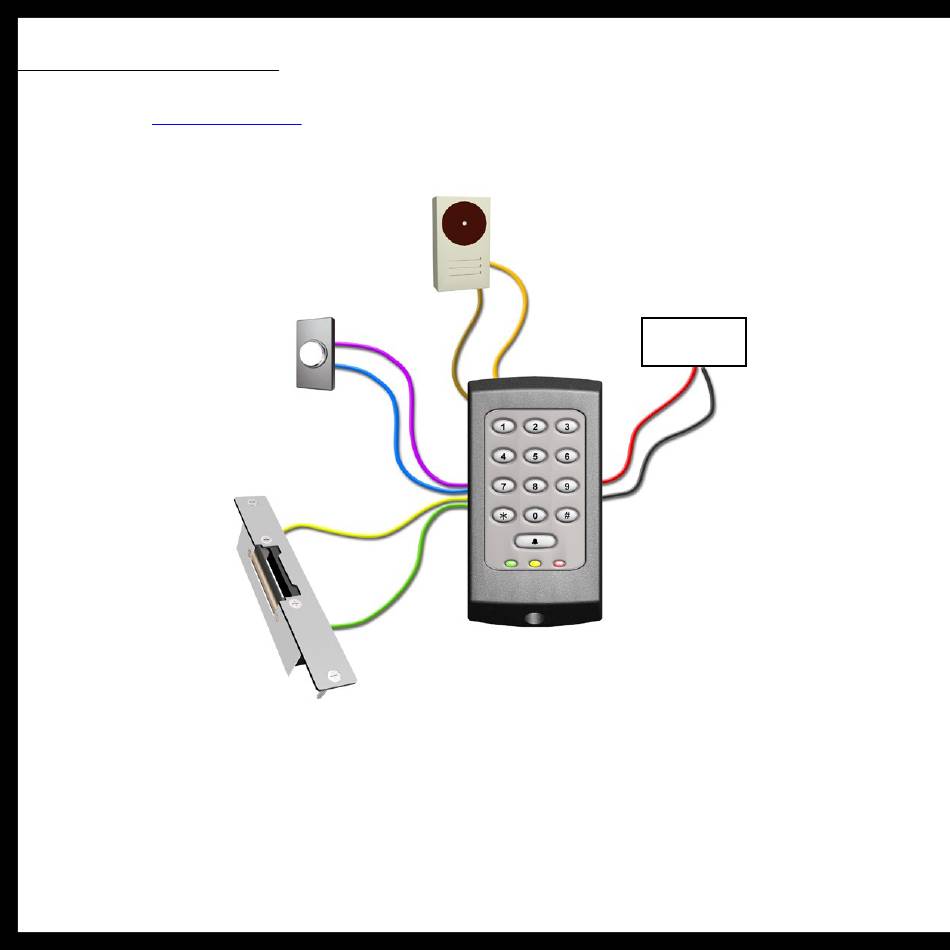

0V
+12V
Exit
12V DC power
Exit button
supply
(push to make)
+12V
0V
0V
+12V
Electric release 0V
12V DC release current rating must be less than 1A.
The reader's default indication has all the LED's on. Access granted is denoted with a single flashing Green
LED. Access Denied is a single flashing Red LED.
