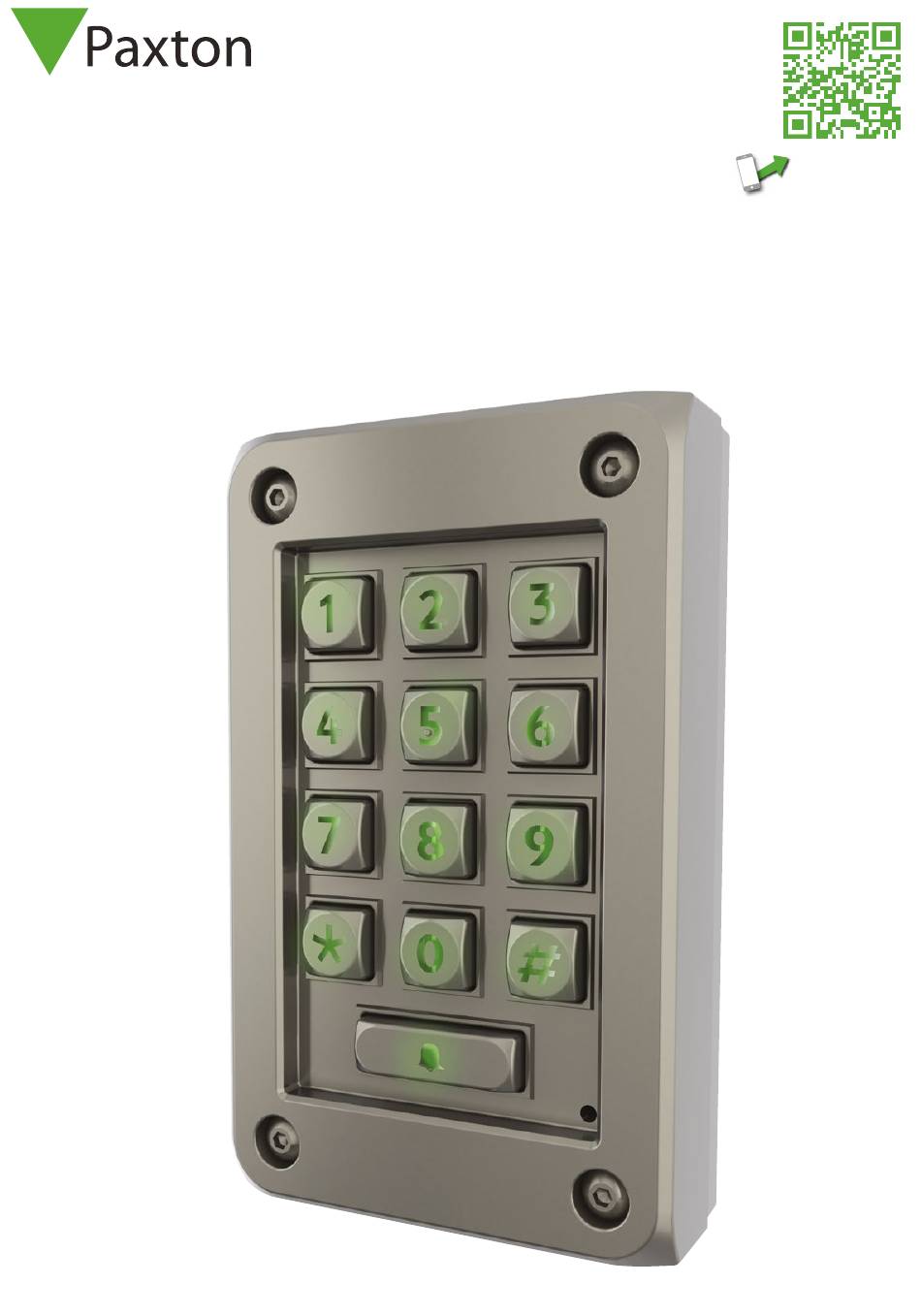

- Page 1 ins-30109...
- Page 2 Fitting for a water resistant installation. The assembly is waterproof (IPX7 rated) when used with the mounting plate and all the cable connections are made inside the building. Fitting to existing wiring The alternative surface box contains a terminal strip making it ideal for connection to existing wiring.
- Page 3 Wiring Lock control is provided by both a powered lock output and also a voltage free relay. Bell If the V+ lock wire (Yellow) or V+ bell wire (Brown) are not connected they must be terminated to avoid a short circuit. Power supply Exit button...
- Page 4 This box can be used to write down the Programming Code for future reference. Ensure that this information is stored in a secure place. START - Enter the 6 digit Programming Code and hold down a function key 3 seconds. - The unit beeps and the LED flashes faster. Continue the key sequence to set the option - The keypad returns to operating mode.
- Page 5 2 - How do I integrate an entry phone system? QThe output from the entry phone system is used to simulate the 'push' of an exit button for the Paxton equipment. No voltage should be directly applied to the exit wires (Blue / Mauve).
- Page 6 With surface mount box 40 mm The declaration of conformity is available on request. Contact details are provided at: http://paxton.info/596 These products are not suitable for retail sale. All warranties are invalid if these products are not installed by a competent person.
- Page 7 +44 (0)1273 811011 877.438.7298 support@paxton.co.uk supportUS@paxton-access.com paxton.support usapaxton.support +31 (0)76 3333 999 +32 (0) 78485147 support@paxton-benelux.com support@paxton-benelux.com paxton.benelux.support paxton.benelux.support +33 (0)1 57 32 93 56 +49 (0) 251 2080 6900 verkauf@paxton-gmbh.de support@paxtonaccess.fr paxton.gmbh.support paxton.support 8000 3570 3783 +27 (0) 21 4276691 support@paxtonaccess.co.za...
- Page 8 Made in the UK © Paxton Ltd 1.0.2...
