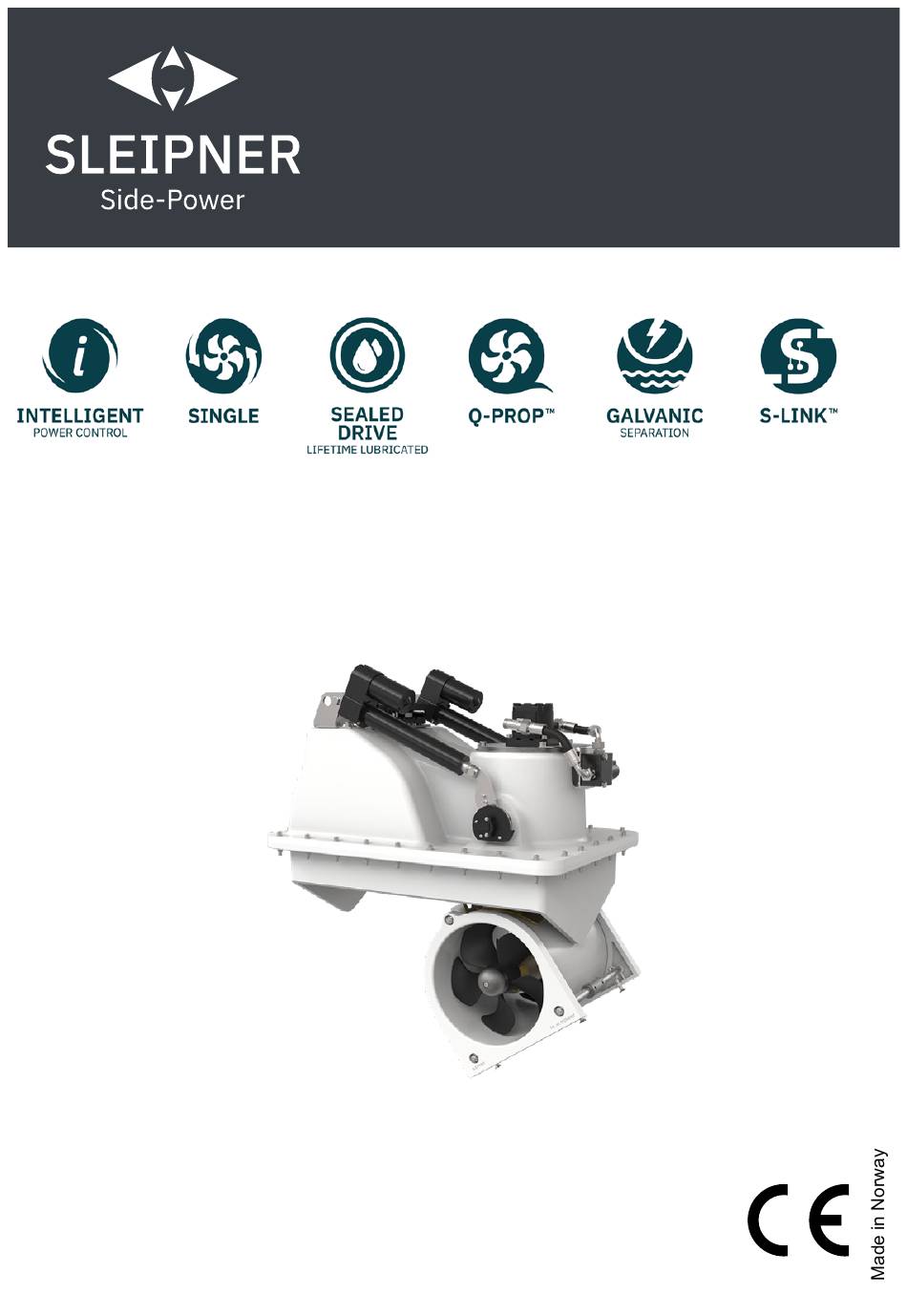

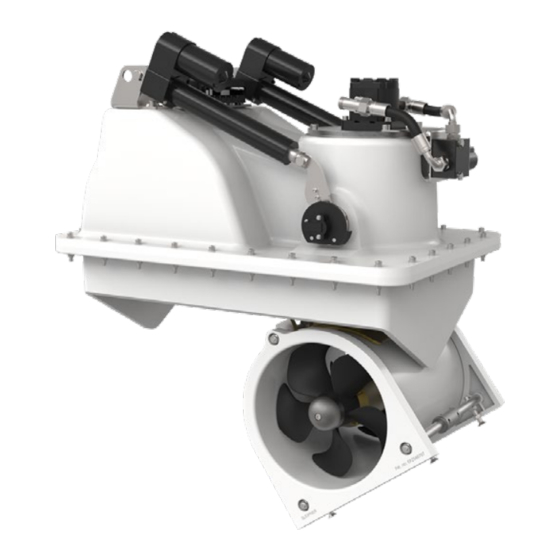

- Page 1 - 240/250 TC - 320/300 TC Installation Guide SLEIPNER AS P.O. Box 519 Document id: N-1612 Fredrikstad 2933 Norway Revision: www.sleipnergroup.com Date: 2021 © Sleipner Motor AS 2021...
-
Page 2: Table Of Contents
Spare Parts ................26 Warranty statement .............. 26 DECLARATION OF CONFORMITY MC_0020 Sleipner Motor AS P.O. Box 519, Arne Svendsensgt. 6-8 N-1612 Fredrikstad, Norway Declare that this product with accompanying standard control systems complies with the essential health and safety requirements according to:... -
Page 3: Planning Considerations And Precautions
Before installation, it is important that the installer reads this guide to ensure necessary acquaintance with the product. The recommendations made in this manual are guidelines ONLY, and Sleipner Motor AS (Sleipner) strongly recommend that before installation, advice is obtained from a naval architect familiar with the particular vessel and regulations/ classifi cations. -
Page 4: Thruster Measurements
MG_0422 Thruster Measurements MC_0168 SRH *240 Measurement Measurement description code inch Height 15.4 Length 27.1 Additional Length Width 18.9 Internal Diameter 9.80 Water Depth 9.80 Retract Depth 14.2 Retract Width 13.7 Mould Width 16.3 Mould Height SH 240 & SH 320 2933 2021... - Page 5 MG_0421 Thruster Measurements MC_0364 SRH *320 Measurement Measurement description code inch Height 17.9 Length 33.2 Width 22.83 Internal Diameter 11.8 Water Depth 11.8 Retract Depth 17.5 Retract Width 16.3 Mould Width 18.9 Mould Height SH 240 & SH 320 2933 2021...
-
Page 6: Thruster Specifications
Thruster Specifi cations MC_0169 Description * 240 * 320 Light duty thrust up to (kg * lbs) 240kg * 529lbs 320kg * 705lbs Typical Boat Size (m * ft) 13m - 23m * 42ft - 75ft 22m - 34m * 72ft - 110ft Propulsion System Twin Counter Twin Counter... -
Page 7: Positioning Of The Retract Thruster
Stern Installation Thruster moved to avoid conflict Thruster moved to avoid conflict Bow Installation WATERLINE Minimum tunnel depth Hatch opens towards the direction of travel SR 80 & 100 = 185mm SR 130 & 210 = 250mm SR 250 & 300 = 300mm MG_0181 Positioning of the Retract thruster MC_0067... -
Page 8: Performance Table
Performance Table MC_0171 60 % 80 % 100 % Thruster model Motor type Flow Pressure Flow Pressure Flow Pressure L/min -Bar 26.2 30.2 33.8 USG-PSI 2291 3060 3828 L/min -Bar 33.1 38.2 42.7 SRH 250 USG-PSI 1798 10.1 2407 11.3 3002 L/min -Bar 38.1... -
Page 9: Hydraulic Thruster Installation Considerations And Precautions
Hydraulic Thruster Installation Considerations and Precautions MC_0009 Before installation, The installer must read this guide to ensure necessary acquaintance with this product. • If the height of the room you are installing the Side-Power is limited, it can be installed horizontally or at any angle in-between. •... -
Page 10: Marking And Trimming Of Srf Flange
Ensure to have a minimum Mark using of 100mm space around internal surface Thrusters can be positioned outside of the thruster installation to the boat centre line, however, all have service access positioning measures must be considered Mark the centre line Ensure SRF of the hull keel flange is centred... -
Page 11: Installation Pre-Check
Controller Controller Apply silicon to corner areas (FUSE) SETTINGS 1 2 3 4 DOWN FAULT STATUS From power supply Remove wooden installation part Conflict with hatch hatch opens and hull without conflict Hatch does not close Hatch closed with with pressure pressure... -
Page 12: Required Modifications After Pre-Check
Raise SRF flange on stern end Conflict with hatch hatch opens and hull without conflict Use wedge to prop the SRF flange to required height hatch opens without conflict Hatch closed with pressure MG_0183 Required Modifi cations After Pre-check MC_0068 ! Please refer to the graphic for special considerations relating to your model ! To increase the space between the hatch and the hull the entire SRF flange and motor must be raised at the stern end. -
Page 13: Srf Flange Installation
Inside and outside moulding surfaces must be ground to remove coating/ material to achieve correct adhesion preparations for moulding. Fill all gaps with Expoxy filler or equivalent, with thruster case resting on Apply Epoxy filer or equivalent for the SRF flange. Grind and smoothen bonding between hull and SRF flange surfaces after cutting. -
Page 14: Motor House Installation
IMPORTANT Do not position support on the motor cap. MG_0122 Motor House Installation MC_0068 ! Please refer to the graphic for special considerations relating to your model ! Apply MS Polymer or equivalent on SRF flange top surface to seal and avoid water leakage. (NB: Ensure that glue is compatible with SRF and thruster case materials.) Place the upper thruster Housing down on the SRF flange. -
Page 15: Hatch Installation
Pin bolts with sharp Drill holes ends to punch mark the hole pattern to hatch Tap/ press to get punch marks of hole pattern Inside of hatch Countersink all 4 holes Outside of hatch Apply a layer of aluminium or duct Ensure to adjust the hatch tape on hatch bolts so they do NOT... -
Page 16: Motor To House Installation
Install the relevant motor and other electronics according to electrical instructions in the manual Bolt tightening force (4x): 33 Nm (24 lb/ft) MG_0185 Motor to House Installation MC_0173 ! Please refer to the graphic for special considerations relating to your model ! Install the motor onto the motor bracket ensuring both the couplings and the drive shafts have locked together. -
Page 17: Hydraulic Connections
DRAIN PORT A PORT B MG_0186 Hydraulic connections MC_0174 SH 240 & SH 320 2933 2021... -
Page 18: Oil Tank Installation
Oil tank 20% x waterline to tunnel centre WATERLINE Pivot shaft Oil valve MG_0184 Oil Tank Installation MC_0023 ! Please refer to the graphic for special considerations relating to your model ! Install the oil tank above the waterline by at least 20% of the distance from the waterline to the centre of the tunnel. This ensures enough overpressure for the oil in the gear leg. -
Page 19: Control Panel Cable Installation
Retract **Setup with automatic panel main switch +12V Battery Power supply black cable yellow Automatic Main Switch w/S-link T-connector T-connector T-connector Controller Terminator 120 ohm Terminator 120 ohm 8730 Controller 6 1242 Foot Retract Switches Remote control thruster ( opt.) (opt.) optional Retract... -
Page 20: S-Link Planning & Precautions
You need: Example of the control wiring Control Panel 2 x 6 1327 End terminators with S-link system for boats Wiring of S-link system with one control position and 3 x 6 1326 T-connectors one thruster. 1 x 6 1328 Power spur 2 x 6 1320-xxM Backbone cables 2 x 6 1321-xxM Spur cables Explaining S-link... -
Page 21: Visual Wiring Diagram
Visual Wiring Diagram Joystick Control panel PJC 221 (1 thruster) PJC 222 (2 thrusters) +12/24v S-link supply Power black supply yellow cable End Terminator 120 ohm End Terminator 120 ohm Hydr. tank unit + Supply 12v / 24v Actuator 2 - (See dim. -
Page 22: Technical Wiring Diagram
Technical Wiring Diagram To S-link control system + 12v / +24v supply Brown black Crossover Valve Actuators black Controller Blue 150000 Thruster Motor Blue Position Sensor Suggested supply cable dimensioning: Max total length. Sum of pos and neg cable. 6 mm2 10 mm2 16 mm2 25 mm2 4.2m 6.7m... -
Page 23: Check Drive Shaft Alignment
Actuator arm and bearing Controller (FUSE) SETTINGS 1 2 3 4 DOWN FAULT STATUS Align pointer on lever arm with red mark on bearing MG_0108 Check drive shaft alignment MC_0069 IMPORTANT Before the thruster motor is operated, check the drive shaft alignment is completely straight when it reaches the end position form the control panel operation: 1) Connect power to thruster and S-link system. -
Page 24: Control Panel Installation
4x SCREWS Ø 4.5 mm Ø 4.5 mm 75.7 mm 58 mm 67 mm GASKET Ø 4.5 mm Ø 4.5 mm Ø 4.5 mm External alarm / buzzer connection (S-link) Supply + 12V / 24V DC Internal fuse / relay External alarm buzzer 12V / 24V DC - max 0,5A MG_0063... -
Page 25: Checklist For Dc And Ip Thrusters
Pre-delivery Checklist MC_0033 ..The bolts holding the gear house and motor bracket together are tightened correctly... The bolts holding the motor to its bracket are tightened correctly... All electrical connections are clean, dry and tight, and the correct cable, fuse and main switch size. -
Page 26: Spare Parts
Warranty statement MC_0024 1. The equipment manufactured by Sleipner Motor AS (The “Warrantor”) is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in effect for of two years (Leisure Use) or one year (Commercial use) from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period. - Page 27 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SH 240 & SH 320 2933 2021...
- Page 28 SLEIPNER AS * AS P.O. Box 519 * N-1612 Fredrikstad * Norway The information given in the document was correct at the time it was published. However, Sleipner Motor AS can not accept liability for any inaccuracies or omissions it may contain.
