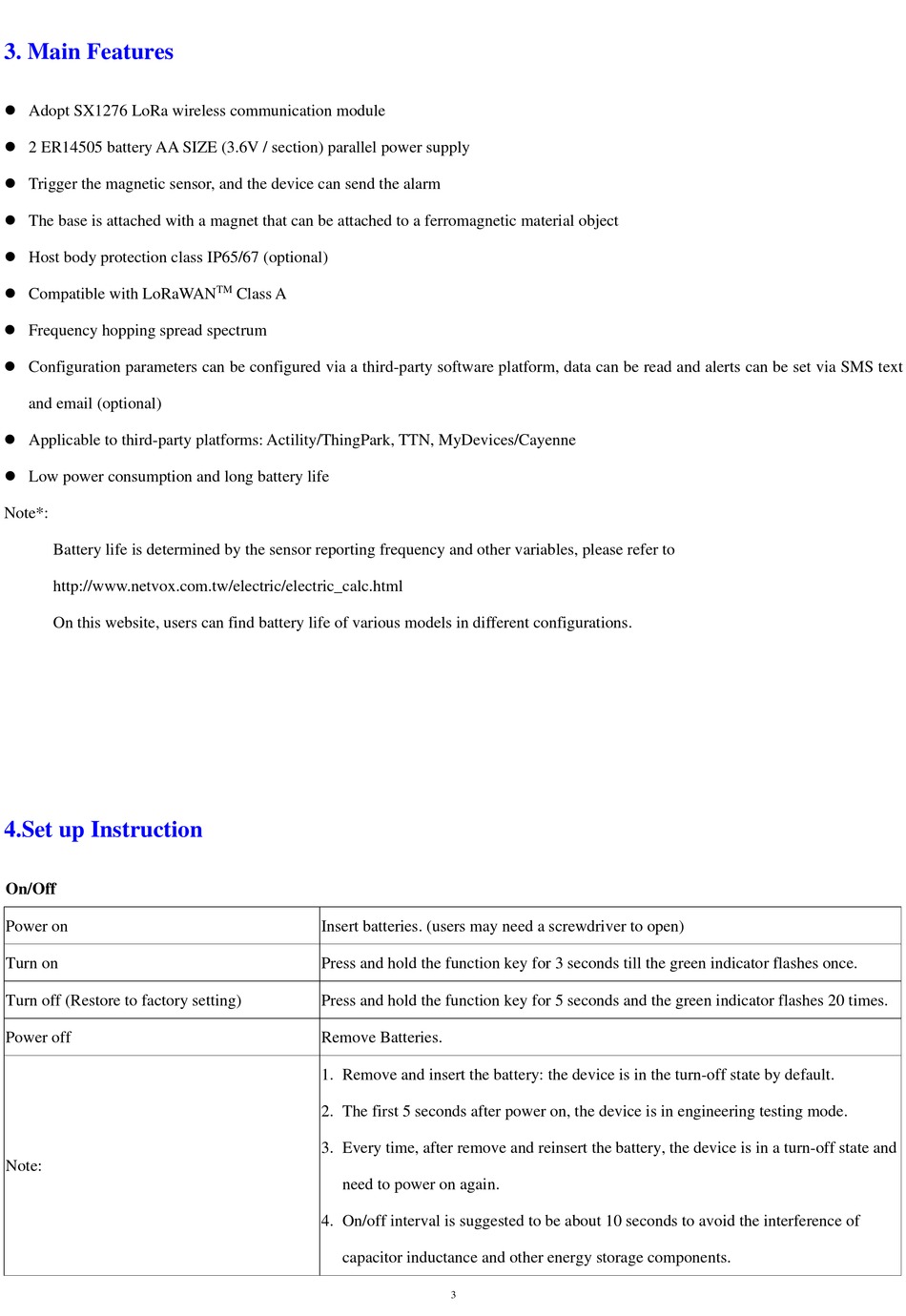

3. Main Features

 Adopt SX1276 LoRa wireless communication module
 2 ER14505 battery AA SIZE (3.6V / section) parallel power supply
 Trigger the magnetic sensor, and the device can send the alarm
 The base is attached with a magnet that can be attached to a ferromagnetic material object
 Host body protection class IP65/67 (optional)
 Compatible with LoRaWAN
 Frequency hopping spread spectrum
 Configuration parameters can be configured via a third-party software platform, data can be read and alerts can be set via SMS text
and email (optional)
 Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
 Low power consumption and long battery life
Note*:
Battery life is determined by the sensor reporting frequency and other variables, please refer to
http://www.netvox.com.tw/electric/electric_calc.html
On this website, users can find battery life of various models in different configurations.

4.Set up Instruction

On/Off
Power on
Turn on
Turn off (Restore to factory setting)
Power off
Note:
TM
Class A
Insert batteries. (users may need a screwdriver to open)
Press and hold the function key for 3 seconds till the green indicator flashes once.
Press and hold the function key for 5 seconds and the green indicator flashes 20 times.
Remove Batteries.
1. Remove and insert the battery: the device is in the turn-off state by default.
2. The first 5 seconds after power on, the device is in engineering testing mode.
3. Every time, after remove and reinsert the battery, the device is in a turn-off state and
need to power on again.
4. On/off interval is suggested to be about 10 seconds to avoid the interference of
capacitor inductance and other energy storage components.
3
