R718UBD Series
Wireless Multifunctional CO2 Sensor
Wireless Multifunctional
CO2 Sensor
R718UBD Series
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be
maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written
permission of NETVOX Technology. The specifications are subject to change without prior notice.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for netvox R718UBD Series
Summary of Contents for netvox R718UBD Series
- Page 1 User Manual Copyright©Netvox Technology Co., Ltd. This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written...
-
Page 2: Table Of Contents
Table of Content 1. Introduction ............................2 2. Appearance ............................4 3. Main Feature............................4 4. Set up Instruction ..........................5 5. Data Report ............................6 5.1 Example of ReportDataCmd ......................7 5.2 Example of ConfigureCmd ......................8 5.3 Example of calibration configuration ................... 10 6. -
Page 3: Introduction
1. Introduction R718UBD all-in-one series is a ClassA type of netvox based on LoRaWAN open protocol, which can support a variety of combined detection devices composed of temperature and humidity, CO2, vibration, atmospheric pressure, illumination, TVOC and dust, and is compatible with LoRaWAN protocol. - Page 4 The specific model of R718UBD all-in-one is shown in the following table: UBD represents the basic function CO2 of DC power supply “1” represents temperature and humidity, “2” represents vibration “3” represents air pressure “5” represents light “6” represents TVOC “7”...
-
Page 5: Appearance

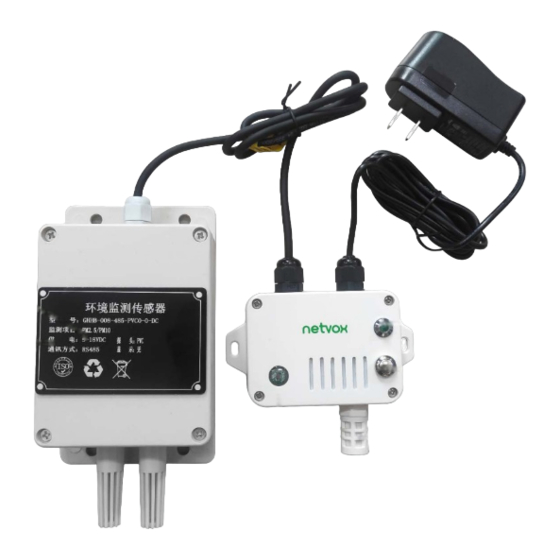

2. Appearance Indicator Dust sensor (PM2.5 / PM10) Function Key Temperature and humidity Light Sensor 3. Main Feature Apply SX1276 wireless communication module DC 12V power supply It can detect temperature and humidity, CO2, vibration, atmospheric pressure, illumination, TVOC and dust ... -
Page 6: Set Up Instruction
4. Set up Instruction On/Off Power on Power on Restore to factory setting Press and hold the function key for 5 seconds till green indicator flashes 20 times. Power off Remove adapter 1. On/off interval is suggested to be about 10 seconds to avoid the interference of capacitor Note: inductance and other energy storage components. -
Page 7: Data Report
If the CO2 value which customers test is inconsistent ,or there is large discrepancy of the primary standard, it can be recalibrated. For specific calibration methods,please refer to command 0x03 CalibrateType. Refer to Netvox LoRaWan Application Command documents and for data analysis reported by the device http://www.netvox.com.cn:8888/page/index... -
Page 8: Example Of Reportdatacmd
Version– 1 byte –0x01——the Version of NetvoxLoRaWAN Application Command Version DeviceType– 1 byte – Device Type of Device The devicetype is listed in Netvox LoRaWAN Application Devicetype doc ReportType – 1 byte –the presentation of the NetvoxPayLoadData，according the devicetype NetvoxPayLoadData– Fixed bytes (Fixed =8bytes) -
Page 9: Example Of Configurecmd
(0001870F): AirPressure－1001.11hPa,1870F(HEX)=100111(DEC),100111*0.01hPa=1001.11hPa byte (000032): Illuminance－50 Lux , 000032(HEX)=50(DEC),50*1Lux=50Lux # Report data 3: 01BB030000110011FFFF00 byte (01): Version byte (BB): DeviceType 0xBB － R718UBD Series byte (03): ReportType byte (00): Battery－0x00 means is powered by DC power source byte (0011):PM2.5－17ug/m , 11(HEX)=17(DEC) byte (0011): PM10－17ug/m... - Page 10 CalibrateType (1Byte) CalibratePoint 0x01_TargetCalibrate Calibrate (2Bytes,Unit:1ppm) Reserved 0x03 0x02_ZeroCalibrate CO2Req Only valid in (6Bytes,Fixed 0x00) 0x03_BackgroudCalibrate targetCalibrateType 0x04_ABCCalibrate Calibrate Status Reserved 0x83 CO2Rsp (0x00_suBBess) (8Bytes,Fixed 0x00) SetShockSensor ShockSensorSensitivity Reserved 0x04 SensitivityReq (1Byte) (8Bytes,Fixed 0x00) SetShockSensor Status Reserved 0x84 SensitivityRsp (0x00_success) (8Bytes,Fixed 0x00) GetShockSensor Reserved...
-
Page 11: Example Of Calibration Configuration
(self calibration is default when power on, and 8 days is a cycle of self calibration. The sensor must be exposed to fresh air at least once (well ventilated) for calibration) Device return: 83BB000000000000000000 (configuration successful) // Successfully configured, (Target/Zero/Background/ABC-alignments) 83BB010000000000000000 (configuration failed) //After calibration, the returned CO2 value is not within the error range (4) SetShockSensorSensitivityReq:... - Page 12 CalibrateReq ClearGlobal Status Reserved 0x83 CalibrateRsp (1Byte,0x00_success) (9Bytes,Fixed 0x00) The calibration sensor type and channel corresponding to each sensor : Sensor Sensor Type Channel Temperature 0x01 0x03 Humidity 0x02 0x04 Light 0x03 0x05 PM2.5 0x01 0x04 PM10 0x02 0x06 0x00 Air Press 0x35 0x06...
-
Page 13: Installation
6. Installation The waterproof breathable film inside the product is waterproof but not waterproof against steam. Therefore, in order to prevent water vapor from condensing inside the body, it should not be used in high humidity and steam environments. 6-1 Precautions for use of dust sensor ... -
Page 14: Precautions For Outdoor Installation
6-3 Precautions for outdoor installation According to Enclosure Protection Class This standard is equivalent to IEC 60529:2001 Degrees of Protection Provided by Enclosures The test method of IP65 waterproof grade is: spray the device in all directions under 12.5L/min water flow for 3min, and the internal electronic function is normal. The test method of IP67 waterproof grade is: the device is immersed in 1m deep water for 30min, and the internal electronic function is normal. -
Page 15: Important Maintenance Instruction
7. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: • Keep the device dry. Rain, moisture and various liquids or water may contain minerals that can corrode electronic circuits. In case the device is wet, please dry it completely.
