Model: R718F2
Wireless 2-Gang Reed Switch Open/Close Detection Sensor
Wireless 2-Gang Reed Switch
Open/Close Detection Sensor
R718F2
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in
strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R718F2 and is the answer not in the manual?

Questions and answers

Related Manuals for netvox R718F2

Summary of Contents for netvox R718F2

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.

  • Page 2: Table Of Contents

    Table of Content 1. Introduction ................................2 2. Appearance ................................3 3. Main Features ................................3 4. Set up Instruction ..............................4 5. Data Report ................................5 5.1 Example of ReportDataCmd..........................6 5.2 Example of ConfigureCmd ..........................7 5.3 Example of LastMessageResendtime ....................... 8 5.4 Example for MinTime/MaxTime logic......................

  • Page 3: Introduction

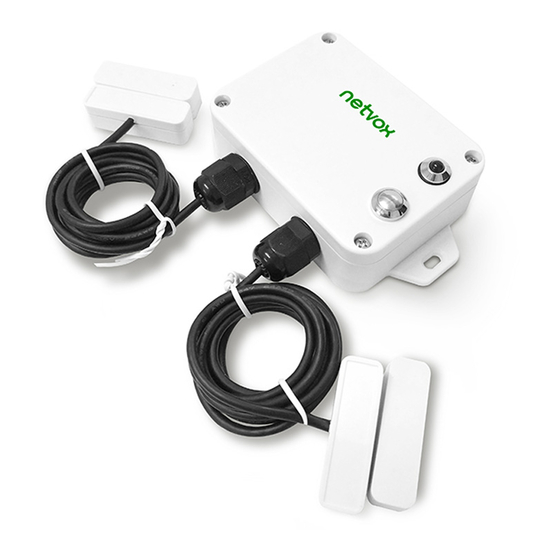

    1. Introduction R718F2 is a long-distance door Sensor based on the LoRaWAN open protocol (Class A). The device is equipped with 2-gang reed sensors, The reed switch is on (conducting) within the magnetic range, and is off (nonconducting) when it's out of the magnetic range.

  • Page 4: Appearance

     Compatible with LoRaWAN Class A  Using frequency hopping spread spectrum technology  Available for third-party platforms: Actility / ThingPark, / TTN / MyDevices / Cayenne  Improved power management for longer battery life Battery Life: ⁻Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html...

  • Page 5: Set Up Instruction

    4. Set up Instruction On/Off Power on Insert batteries. (Users may need a screwdriver to open) Turn on Press and hold the function key for 3 seconds till the green indicator flashes once. Turn off (Restore to factory setting) Press and hold the function key for 5 seconds till green indicator flashes for 20 times. Power off Remove Batteries.

  • Page 6: Data Report

    1. The cycle of the device sending the data report is according to the default. 2. The interval between two reports must be the Mintime. 3. Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver http://cmddoc.netvoxcloud.com/cmddoc to resolve uplink data.

  • Page 7: Example Of Reportdatacmd

    Version– 1 byte –0x01——the Version of NetvoxLoRaWAN Application Command Version DeviceType– 1 byte – Device Type of Device The devicetype is listed in Netvox LoRaWAN Application Devicetype doc ReportType – 1 byte –the presentation of the NetvoxPayLoadData，according the devicetype NetvoxPayLoadData– Fixed bytes (Fixed =8bytes) Tips 1.

  • Page 8: Example Of Configurecmd

    BatteryChange Reserved ConfigReport 0x01 (2bytes Unit: s) (2bytes Unit: s) (1byte Unit: 0.1v) (4Bytes, Fixed 0x00) ConfigReport Status Reserved 0x81 (0x00_success) (8Bytes, Fixed 0x00) R718F2 0x3E ReadConfig Reserved 0x02 ReportReq (9Bytes, Fixed 0x00) ReadConfig MinTime MaxTime BatteryChange Reserved 0x82 ReportRsp...

  • Page 9: Example Of Lastmessageresendtime

    5.3 Example of LastMessageResendtime SetLastMessage Resendtime(1Byte)Unit:1s , Range:3-254s Reserved 0x1F ResendtimeReq when 0 or 255 no resend, default is no resend (8Bytes,Fixed 0x00) SetLastMessage Status Reserved ALL(0xFF) 0x9F ResendtimeRsp only used in (0x00_success) (8Bytes,Fixed 0x00) 0xFF GetLastMessage contact switch Reserved 0x1E ResendtimeReq device type...

  • Page 10: Installation

    6. Installation 2. Tear off the 3M glue at the bottom of the reed switch probe 1. R718F2 has a built-in magnet (as the figure below). When and the magnet (as the red frame in the figure above). Then, installed, it can be attached to the surface of an object with stick the reed switch probe to the door and is parallel to the iron which is convenient and quick.
  • Page 11 3. When the door or window is opened, the reed switch probe is R718F2 is suitable below scenarios:  Door, window separated from the magnet, and the device sends an alarm  Machine room door message about the opening.  Archives When the door or window is closed, the reed switch probe and ...

  • Page 12: Information About Battery Passivation

    7. Information about Battery Passivation Many of Netvox devices are powered by 3.6V ER14505 Li-SOCl2 (lithium-thionyl chloride) batteries that offer many advantages including low self-discharge rate and high energy density. However, primary lithium batteries like Li-SOCl2 batteries will form a passivation layer as a reaction between the lithium anode and thionyl chloride if they are in storage for a long time or if the storage temperature is too high.

  • Page 13: Important Maintenance Instruction

    8. Important Maintenance Instruction The device is a product with superior design and craftsmanship and should be used with care. The following suggestions will help you use the warranty service effectively. • Keep the equipment dry. Rain, moisture and various liquids or water may contain minerals that can corrode electronic circuits.
