Main Features - netvox R718B1 Series User Manual

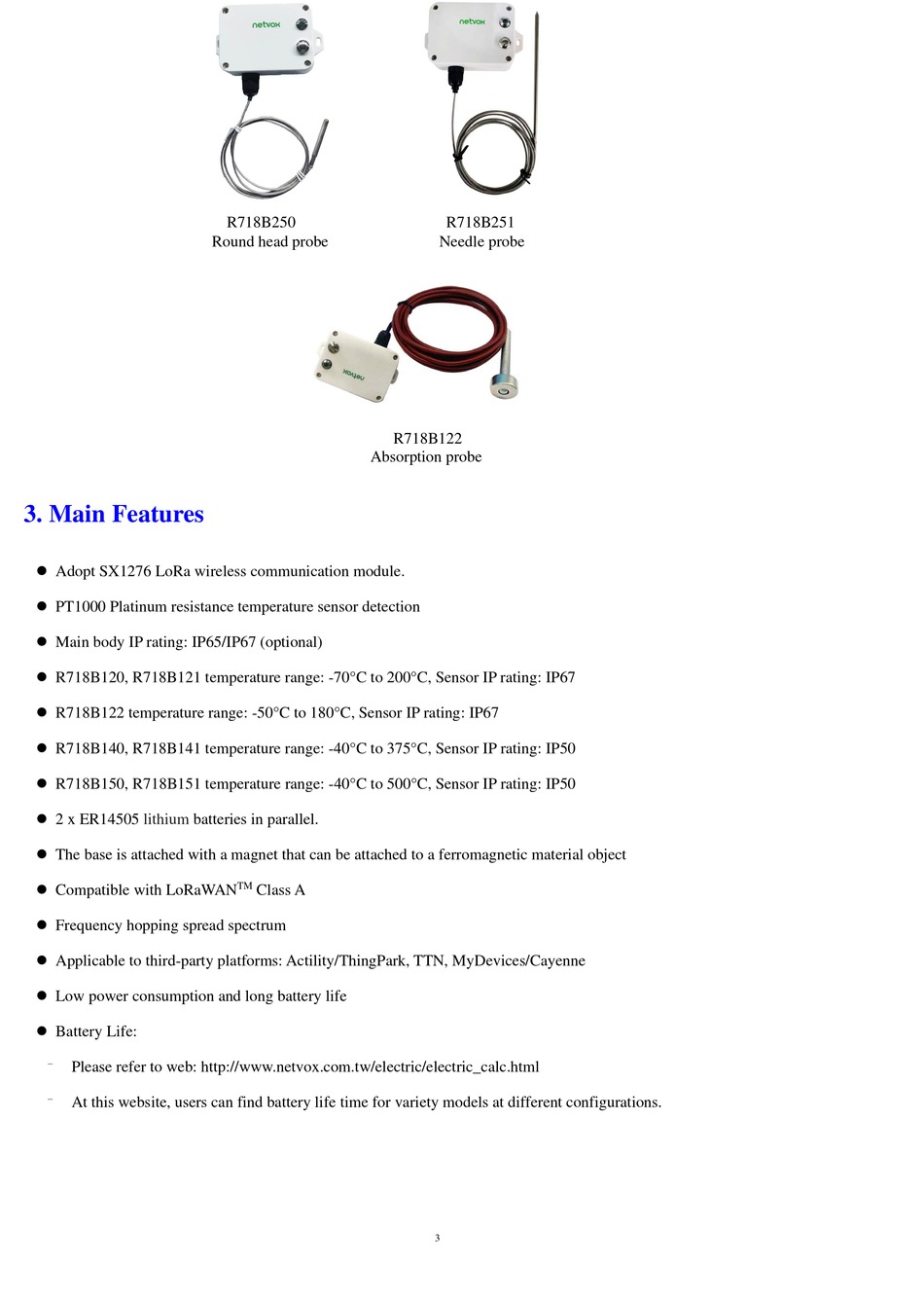

3. Main Features

 Adopt SX1276 LoRa wireless communication module.
 PT1000 Platinum resistance temperature sensor detection
 Main body IP rating: IP65/IP67 (optional)
 R718B120, R718B121 temperature range: -70°C to 200°C, Sensor IP rating: IP67
 R718B122 temperature range: -50°C to 180°C, Sensor IP rating: IP67
 R718B140, R718B141 temperature range: -40°C to 375°C, Sensor IP rating: IP50
 R718B150, R718B151 temperature range: -40°C to 500°C, Sensor IP rating: IP50
 2 x ER14505
lithium
 The base is attached with a magnet that can be attached to a ferromagnetic material object
 Compatible with LoRaWAN
 Frequency hopping spread spectrum
 Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
 Low power consumption and long battery life
 Battery Life:
⁻
Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html
⁻
At this website, users can find battery life time for variety models at different configurations.
R718B250
Round head probe
batteries in parallel.
TM
Class A
R718B251
Needle probe
R718B122
Absorption probe
3
