XD2-230 Installation Guide
November 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XIRRUS XD2-230 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cambium Networks XIRRUS XD2-230

  • Page 1 XD2-230 Installation Guide November 2019...
  • Page 2: Contacting Cambium Networks

    Accuracy While reasonable efforts have been made to assure the accuracy of this document, Cambium Networks assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. Cambium reserves the right to make changes to any products described herein to improve reliability, function, or design, and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes.
  • Page 3: Problems And Warranty

    Cambium Networks warrants that hardware will conform to the relevant published specifications and will be free from material defects in material and workmanship under normal use and service. Cambium Networks shall within this time, at its own option, either repair or replace the defective product within thirty (30) days of receipt of the defective product.
  • Page 4: Caring For The Environment

     Note text. Caring for the environment The following information describes national or regional requirements for the disposal of Cambium Networks supplied equipment and for the approved disposal of surplus packaging. In EU countries The following information is provided to enable regulatory compliance with the European Union (EU) directives identified and any amendments made to these directives when using Cambium Networks equipment in EU countries.
  • Page 5: You Need The Following Items

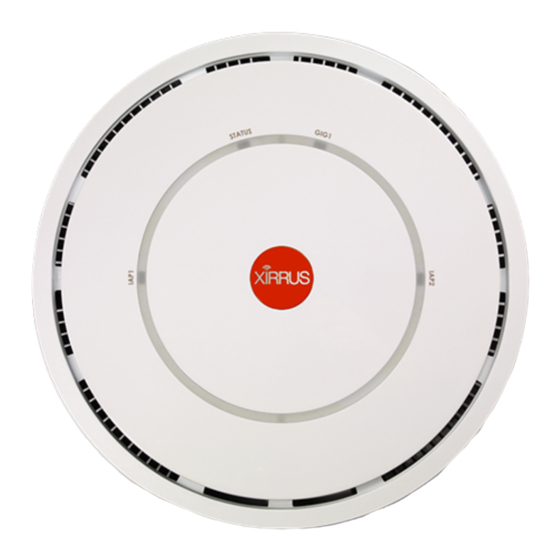

    XD2-230 Installation Guide Quick Installation Guide For the XD2-230 AP The XD2-230 (Model XD2230) Access Point (AP) is part of the cnPilotXirrus wireless portfolio. With two omnidirectional 802.11ac radios, an integrated controller, and cloud management, this AP delivers robust wireless connectivity. The XD2-230 AP’s radio1 is a dual-band (2.4GHz/5GHz) 3x3 802.11ac Wave 1 radio, set to 2.4GHz by default.
  • Page 6: Choose A Suitable Location

    XD2-230 Installation Guide  For a suspended ceiling mount, you need a 7/16” nut driver to attach the mounting plate to the T-Bar clips. (See “Install Mounting Hardware” on page 3.) Do not use old T-Bar clips or studs from XN or XS APs with the X2 and XD2 Series—they will damage the AP case.
  • Page 7: Install Mounting Hardware

    XD2-230 Installation Guide Install Mounting Hardware   3A—Ceiling Mount 3C—Wall Mount with Bracket  3B—Ceiling Grid Mount with Mounting Plate 3A—Ceiling Mount We recommend use of the supplied AP mounting plate, which offers a more secure mount and ease of dismount, and a locking option for the AP.
  • Page 8: Connect Cables And Install Ap

    XD2-230 Installation Guide 3C—Wall Mount with Bracket NOTE: The mounting location must be able to support the weight of the AP and the mounting bracket (about 2 lb. total). If the mounting plate is attached to the AP, remove it (push it against the AP and twist it to the left).
  • Page 9: Zero-Touch Provisioning And Ongoing Management

    XD2-230 Installation Guide Align the two slots on the back of the AP chassis (circled in red) with the corresponding tabs on the AP mounting plate. Push the AP chassis up on the mounting plate tabs and rotate the AP to the right until it snaps in place.
  • Page 10: Using The Reset Button

    Using the Reset Button The reset button returns the AP to factory default settings while rebooting. It is located on the bottom of the unit. Use the reset button as follows:  Unplug the cable from the GIGABIT1/POE+ port.  Press the reset button all the way (there should be a faint click) and hold it.
