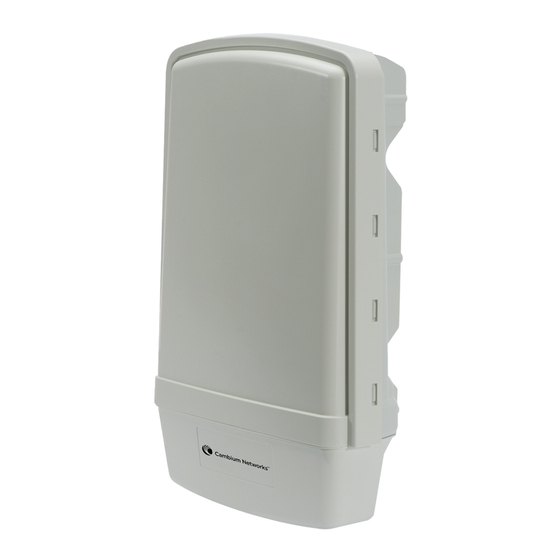

Cambium Networks PMP 400 Series Configuration And User's Manual
  1. Manuals
  2. Brands
  3. Cambium Networks Manuals
  4. Wireless Access Point
  5. PMP 400 Series
  6. Configuration and user's manual

Cambium Networks PMP 400 Series Configuration And User's Manual

Networks, bridges
Hide thumbs
Table of Contents

Advertisement

Quick Links

PMP 400/430 and PTP 200/230 Series Configuration and User Guide
pmp-0042 (March 2014)
Cambium
PMP 400/430 Series Networks
PTP 200/230 Series Bridges
Configuration
and User Guide
System Release 13.1.1 (PMP 430, PTP 230)
System Release 11.2 (PMP 400, PTP 200)
OFDMCONFIGGUIDE March 2014
© 2014 Cambium Networks. All Rights Reserved.
Page 1 of 98

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMP 400 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cambium Networks PMP 400 Series

Summary of Contents for Cambium Networks PMP 400 Series

  • Page 1 PMP 400/430 Series Networks PTP 200/230 Series Bridges Configuration and User Guide System Release 13.1.1 (PMP 430, PTP 230) System Release 11.2 (PMP 400, PTP 200) OFDMCONFIGGUIDE March 2014 © 2014 Cambium Networks. All Rights Reserved. pmp-0042 (March 2014) Page 1 of 98...
  • Page 2 PMP 400/430 and PTP 200/230 Series Configuration and User Guide Accuracy While reasonable efforts have been made to assure the accuracy of this document, Cambium Networks assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein.

  • Page 3: Table Of Contents

    List of Procedures ............................ 7   Chapter 1 : Introduction .................. 8   General information ..........................10   Version information ......................... 10   Contacting Cambium Networks ...................... 10   Purpose ............................11   Cross references ..........................11   Feedback ............................11  ...
  • Page 4 PMP 400/430 and PTP 200/230 Series Configuration and User Guide AP as Spectrum Analyzer (PMP430 and PTP230 only) ..............43   Collocation of 5.8 GHz OFDM with Standard 5.7 GHz Canopy FSK ............47   Channel Spacing ............................ 47   Frame Calculations and Configuration Settings ..................
  • Page 5 PMP 400/430 and PTP 200/230 Series Configuration and User Guide Hardware Warranty in US ....................... 97   Limit of Liability ............................97   pmp-0042 (March 2014) Page 4 of 98...

  • Page 6: List Of Tables

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide List of Tables Table 1: Cambium PMP 400/430 and PTP 200/230 Series ................17   Table 2: 5.8 GHz OFDM - PMP 430 and PTP 230 Series Model Number Descriptions ....... 17  ...

  • Page 7: List Of Figures

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide List of Figures Figure 1: PMP 430 CAP 54430 & 58430 ......................8   Figure 2: PMP 400 CAP 54400 - 5.4 GHz ...................... 8   Figure 3: PMP 400 CAP 49400 - 4.9 GHz ...................... 8  ...

  • Page 8: List Of Procedures

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide List of Procedures Procedure 1: Reporting Problems ......................... 12   Procedure 2: Finding collocation values using Frame Calculators ..............49   Procedure 3: Assembling a 5.8 or 5.4 GHz AP, and attaching to tower ............78  ...

  • Page 9: Chapter 1: Introduction

    200/230 Series bridges in 5.8 GHz, 5.4 GHz and 4.9-GHz bands. Note: PMP 400 5.4 GHz Series is replaced with PMP 430 5.4 GHz Series. PMP 430 Series – 5.4 & 5.8 GHz PMP 400 Series – 5.4 GHz PMP 400 Series – 4.9 GHz Figure 1: PMP Figure 2: PMP 400 CAP Figure 3: PMP 400 CAP 430 CAP 54430 &...

  • Page 10: Figure 7: Ptp 200 Integrated

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide PTP 200 Series Backhauls –5.4 and 4.9 GHz Figure 7: PTP 200 Figure 8: PTP 200 Integrated Connectorized PTP 54200 and 49200 PTP 54200 and 49200 PTP 230 Series Backhauls –5.4 and 5.8 GHz Figure 9: PTP 230 Integrated PTP 54230 and 58230...

  • Page 11: General Information

    MAR 2013 notifications JUL 2013 Updated for 12.1 SEP 2013 Updated for 12.1.2 NOV 2013 Updated for 12.2 MAR 2014 Updated for 13.1.1 Contacting Cambium Networks Support website: http://www.cambiumnetworks.com/support Main website: http://www.cambiumnetworks.com Sales inquiries: solutions@cambiumnetworks.com Support inquiries: support@cambiumnetworks.com Telephone Numbers:...

  • Page 12: Purpose

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Purpose Cambium Networks documents are intended to instruct and assist personnel in the operation, installation and maintenance of the Cambium equipment and ancillary devices. It is recommended that all personnel engaged in such activities be properly trained.

  • Page 13: Problems And Warranty

    Any available diagnostic downloads, including CNUT Customer Support Tool output Escalate the problem by emailing or telephoning support See ‘Contacting Cambium Networks’ for URLs, email addresses and telephone numbers. Repair and service If unit failure is suspected, obtain details of the Return Material Authorization (RMA) process from the support website.

  • Page 14: Security Advice

    Security Advice Cambium Networks systems and equipment provide security parameters that can be configured by the operator based on their particular operating environment. Cambium recommends setting and using these parameters following industry recognized security practices. Security aspects to be considered are protecting the confidentiality, integrity, and availability of information and assets.

  • Page 15: Warnings, Cautions, And Notes

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Warnings, cautions, and notes The following describes how warnings and cautions are used in this document and in all documents of the Cambium Networks document set. Warnings Warnings precede instructions that contain potentially hazardous situations. Warnings are used to alert the reader to possible hazards that could cause loss of life or physical injury.

  • Page 16: Abbreviations

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Abbreviations The following abbreviations may be used in these notes: 1X (QPSK) modulation Frequency Shift Keying 2X (16-QAM) modulation Gigahertz 3X (64-QAM) modulation Global Positioning System Authentication, Authorization, and Line of Sight Accounting Advanced Encryption Standard Management Information Base for SNMP...

  • Page 17: Chapter 2: Product Description

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Chapter 2: Product Description PMP 400/430 Series networks and PTP 200/230 Series bridges add OFDM-based (Orthogonal Frequency Division Multiplexing) products to the Canopy family.  PMP 430 5.4 and 5.8 GHz SMs as shown in Figure 4 on page use the Canopy SM form factor...

  • Page 18: Table 1: Cambium Pmp 400/430 And Ptp 200/230 Series

    PTP 230 Series 5, 10 or 20 10 or 20 1/4, 1/8 or 12.1.2 12.1.2 - 54430 1/16 -54230 5.4 GHz PMP 400 Series PTP 200 Series 10 MHz 10 MHz 11.2 11.2 - 54400 - 54200 4.9 GHz PMP 400 Series...
  • Page 19 PMP 400/430 and PTP 200/230 Series Configuration and User Guide CAP 58430 5.8 GHz OFDM Access Point Model Encryption Picture CMM Type (AP) Description Number Requires CMM4 5.8 GHz OFDM Connectorized 5780AP w/56 VDC AP w/antenna supply Requires CMM4 5.8 GHz OFDM Connectorized 5780APUS w/56 VDC AP w/antenna - US Model...

  • Page 20: Table 3: 5.4 Ghz Ofdm - Pmp 430 Series Model Number Descriptions

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Table 3 shows the Cambium PMP 430 Series (5.4 GHz OFDM) AP and SM models. See Specifications more information. Table 3: 5.4 GHz OFDM - PMP 430 Series Model Number Descriptions CSM 54430 Power 29.5 5.4 GHz OFDM Subscriber...

  • Page 21: Table 4: 5.4 Ghz Ofdm - Pmp 400 And Ptp 200/230 Model Number Descriptions

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Table 4 shows the Cambium PMP 400 and PTP 200/230 Series (5.4 GHz OFDM) models available. See Specifications for more information. Table 4: 5.4 GHz OFDM - PMP 400 and PTP 200/230 Model Number Descriptions CSM 54400 5.4 GHz OFDM Subscriber Power 29.5 VDC...

  • Page 22: Table 5: 4.9 Ghz Ofdm - Pmp 400 And Ptp 200 Model Number Descriptions

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide 5.4 GHz OFDM Connectorized BH CMMmicro or CMM4 5441BHCUS w/30 VDC supply – US Model PTP 54230 5.4 GHz OFDM Backhaul (BH) Model Picture CMM Type Description Number CMMmicro or CMM4 5480BH10 5.4 GHz OFDM BH –...

  • Page 23: Table 6: Cmm4 56Vdc And 30 Vdc Operation

    30 VDC - power on pins 7 and 8 PTP 58230 and return on pins 4 and 5 5.4 GHz PMP 400 Series – CAP PTP 200 Series – 30 VDC - power on pins 7 and 8 54400 PTP 54200 and return on pins 4 and 5 PTP 230 Series –...

  • Page 24: Figure 10: Cmm4 56 Vdc Power Supply

    Figure 13: CMM4 - 56 VDC and 30 VDC terminal blocks A Cluster Management Module (CMMmicro) provides GPS synchronization and 30 VDC power to the:  5.4 GHz PMP 400 Series - CAP 54400 uses 30 VDC  5.4 GHz PTP 200 Series - PTP 54200 uses 30 VDC ...

  • Page 25: Figure 14 600Ssh Surge Suppression Ap And Sm Diagram

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide A 600SSH surge suppressor provides over-voltage and over-current protection to APs, SMs, and BHs in various configurations. The Figure 14 illustrates the use of the 600SSH surge suppressor with the PMP 400/430 AP and SM.

  • Page 26: Table 7: Ancillary Equipment And Model Numbers

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Table 7 lists various ancillary equipment and model numbers. Table 7: Ancillary Equipment and Model Numbers Name Model or Part Number Typically use with Cluster Management Module micro (CMMmicro – 30 VDC power supply) ...
  • Page 27 PMP 400/430 and PTP 200/230 Series Configuration and User Guide Name Model or Part Number Typically use with Cluster Management Module 4 (CMM4)  Controller and 14-port EtherWAN switch (old version had 9-port EtherWAN switch)  Outdoor enclosure for controller and switch (but not power supply) ...
  • Page 28 PMP 400/430 and PTP 200/230 Series Configuration and User Guide Name Model or Part Number Typically use with PMP 400 4.9 GHz SM 56 VDC power supply (also for standalone use with PMP 430 5.4 and 5.8 GHz AP, PMP 400 4.9 GHz AP or PTP 200 4.9 GHz BH) ACPSSW-15A (US, UK, and EU clips)

  • Page 29: Technology And Benefits

    5, 10 or 20 MHz. The PTP 230 Series radios use an OFDM physical layer with configurable channel bandwidth of 10 or 20 MHz. A PMP 400 Series 5.4 GHz radio with 10 MHz channels will interoperate with a PMP 430 Series 5.4 GHz radio configured with 10 MHz channel bandwidth and 1/4 cyclic prefix.

  • Page 30: Applications

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Figure 15: LOS, nLOS, and NLOS Whereas multi-pathing degrades a link in some technologies (FSK, for example), OFDM can often use multi- pathing to an advantage to overcome nLOS, especially in cases where the Fresnel zone is only partially blocked by buildings, “urban canyons”, or foliage.

  • Page 31: Power And Grounding

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Network features like High Priority using DiffServ, MIR, CIR, NAT, DHCP and VLAN are available for the PMP 400/430 and PTP 200/230 Series OFDM radios, and are configured in the same way as they are for the PMP 100 Series and PTP 100 Series radios.

  • Page 32: Administration Systems

    600SSH and the AP. Figure 17: 600SSH pole mount kit Administration Systems Cambium Networks Wireless Manager is recommended for managing PMP 400/430 and PTP 200/230 Series products with Release 12.1. Cambium’s Wireless Manager is available for download at: http://www.cambiumnetworks.com/support under “Management Tools”.

  • Page 33: Specifications

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Wireless Manager is used to manage and monitor Canopy modules. However; the standalone CNUT tool must be used to upgrade radio software. CNUT 3.20.19 (Canopy Network Updater Tool) is the stand-alone software update tool for PMP 400/430 and PTP 200/230 Series products..

  • Page 34: Radio Specifications (Common To All Formats)

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Radio specifications (common to all formats) Settable Transmit (Tx) Output Power Range by Channel Bandwidth Radio Type Frequency 5 MHz 10 MHz 20 MHz PMP 430 AP 5.8 GHz -30 to +21 dBm -30 to +21 dBm -30 to +21 dBm PTP 230 BH...

  • Page 35: Figure 18: Pmp 430 Sm

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide  Optional LENS mounts directly to SM or BH– No additional mounting hardware required adds 6 dBi to 10 dB internal patch antenna which can increase range narrows beam width by 3x (from 55° to 18°) which can reduce interference caused by multi-path reflections LENS part number: AN500A ...

  • Page 36: Specifications For Pmp 400 (4.9 & 5.4 Ghz) Ap/Sm And Ptp 200 (4.9 & 5.4 Ghz) Bh Radio With Integrated Antenna

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Specifications for PMP 400 (4.9 & 5.4 GHz) AP/SM and PTP 200 (4.9 & 5.4 GHz) BH radio with integrated antenna  Radio with an integrated, internal vertically polarized antenna ...

  • Page 37: Specifications For Pmp 400/430 Kitted, Connectorized Radio (Antenna Included)

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Specifications for PMP 400/430 kitted, connectorized radio (antenna included)  Connectorized radio (N-type connector) and connectorized antenna kitted together  Antenna optimized for system coverage vs. system self-interference for 90° sectors (3 dB beam pattern of 60°...

  • Page 38: Performance

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Performance Table 8 shows performance details for PMP 400/430 and PTP 200/230 series. Round trip latency is 5-7 ms for all platforms. Table 8: Performance Details Performance Details Parameter Product PMP 58430 Modulation QPSK...
  • Page 39 PMP 400/430 and PTP 200/230 Series Configuration and User Guide Throughput with 1/16 Cyclic 20 MHz Channel: (up+down) 17 Mbps 34 Mbps 50 Mbps Prefix 5.4 and 5.8 GHz 10 MHz Channel -90 dBm -83 dBm -76 dBm Nominal Receive Sensitivity 20 MHz Channel -87 dBm...

  • Page 40: Chapter 3: Planning

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Chapter 3: Planning PMP 400 and PTP 200 Series systems use 10 MHz channel bandwidth configurable on 5 MHz channel centers while the PMP 430 Series is configurable with a 5, 10 or 20 MHz channel bandwidth and the PTP 230 Series is configurable with a 10 or 20 MHz channel bandwidth.

  • Page 41: Table 9: 5.8 Ghz Channel Center Frequencies, By Region

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Table 9: 5.8 GHz Channel Center Frequencies, by Region Range of Center Center # of # of non- Channel Region(s) Frequencies Channel center overlapping Bandwidth Available (MHz) Spacing channels channels United States, Canada, Australia, 5727.5 –...

  • Page 42: Table 10: 5.4 Ghz Channel Center Frequencies, By Region

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Table 10: 5.4 GHz Channel Center Frequencies, by Region Channel Region(s) Range of Center Center # of # of non- Bandwidth Frequencies Channel center overlapping Available (MHz) Spacing channels channels United States, 2.5 MHz 5475 –...

  • Page 43: Downtilt

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Downtilt The standard AP antenna produces a 3 dB beam elevation (up and down) of 5°, with near-in null fill that allows good coverage of close-in SMs that otherwise would be affected by the narrow pattern. This is a narrower pattern than operators may be used to with standard Canopy’s 60°...

  • Page 44: Spectrum Analyzer

    The PMP 430 and PTP 230 Series uses average detector rather than peak detector algorithm which results in ~10 dBm lower readings than PMP 400 Series and FSK which use peak detectors. For example, when measuring power from an OFDM AP transmitting on a given channel the PMP 430 5.8 GHz OFDM SM might show a Receive Power Level of -60 dBm while a PMP 100 5.7-GHz FSK SM spectrum analyzer...

  • Page 45: Figure 24 Spectrum Analyzer Display After Running A "Timed Spectrum Analyzer

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Graphical spectrum analyzer display The AP displays the graphical spectrum analyzer. An example of the Spectrum Analyzer tab is shown in Figure Figure 24 Spectrum Analyzer display after running a “Timed Spectrum Analyzer” Navigation features include: ...

  • Page 46: Table 12 Spectrum Analyzer Attributes

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Table 12 Spectrum Analyzer attributes Attribute Meaning Display Data Path Both means that both the vertical and horizontal paths are displayed or individual paths may be selected to only display single-path readings (PMP 450 AP only). Data For ease of parsing data and to facilitate automation, the spectrum analyzer results may be saved as an XML file.

  • Page 47: Table 13 Ap As Spectrum Analyzer Snmp Objects

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Table 13 AP as Spectrum Analyzer SNMP objects Name Access Syntax / Description .1.3.6.1.4.1.161.1 timedSpectrum WHISP- read-write INTEGER (10..1000) 9.3.3.2.220.0 AnalysisDuratio BOXMIB Value in seconds for a timed spectrum analysis. nBox V2-MIB Range is 10-1000 seconds.

  • Page 48: Collocation Of 5.8 Ghz Ofdm With Standard 5.7 Ghz Canopy Fsk

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Collocation of 5.8 GHz OFDM with Standard 5.7 GHz Canopy FSK When locating 5.8 GHz PMP 430 OFDM APs near 5.7 GHz standard Canopy FSK APs (especially on the same tower, but also in the same geographical area), the following practices should be followed to avoid interference between the two systems: ...

  • Page 49: Co-Location Of 5.4 Ghz Ofdm With Standard 5.4 Ghz Canopy Fsk

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Co-location of 5.4 GHz OFDM with Standard 5.4 GHz Canopy FSK When locating 5.4 GHz PMP 400/430 and PTP 200/230 Series OFDM APs near 5.4 GHz standard Canopy FSK APs (especially on the same tower, but also in the same geographical area), the following practices should be followed to avoid interference between the two systems: ...

  • Page 50: Procedure 2: Finding Collocation Values Using Frame Calculators

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Procedure 2: Finding collocation values using Frame Calculators Using the Tools => Frame Calculator on an OFDM module, enter the desired Downlink Data %, Range, and Control Slot settings, click Calculate, and observe the “Rec SEQ Start”...

  • Page 51: Signal To Noise Ratio (Snr)

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide 5.7 GHz FSK AP TX End Time AP RX Start Time Signal to Noise Ratio (SNR) PMP 430 and PTP 230 (OFDM) radios display a Signal to Noise Ratio (SNR) on the AP/BHM and the SM/BHS.

  • Page 52: Table 15: Minimum Snr By Modulation And Direction

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Table 15: Minimum SNR by Modulation and Direction Minimum SNR Modulation Downlink Uplink 7 dB 9 dB 15 dB 16 dB 23 dB 24 dB Note that due to differences in the SM/BHS and AP/BHM radios, the SNRs are slightly different for downlink and the uplink.

  • Page 53: Chapter 4: Configuring

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Chapter 4: Configuring Most PMP 400/430 Series and PTP 200/230 Series configuration items are identical or very similar to configuration items in standard FSK Canopy modules. This section discusses those that are new or changed and also remarks on some that remain unchanged.

  • Page 54: Transmitter Output Power (And No Jitter)

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Transmitter Output Power (and no Jitter) The AP/BHM’s Transmitter Output Power is configured on the AP/BHM’s Configuration => Radio page. Table 16: PMP 400/430 and PTP 200/230 Tx output power Antenna Transmit Gain...

  • Page 55: Figure 26: Sm Power Level On Ap "Home => Session Status" Page

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide For the PMP 400 5.4 GHz OFDM to meet 27 dBm EIRP with the connectorized 18 dBi antenna (with 1 dB of cable loss) that comes with the 5440AP or 5441AP, or the integrated 17 dBi antenna that comes with a 5440BH or 5441BH, the maximum setting allowed is 10 dBm (the default) since 27-17=10.

  • Page 56: Downlink Data %, Range, And Control Slots

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Downlink Data %, Range, and Control Slots The Downlink Data parameter on the AP’s and BHM’s Configuration => General page can be set in 1% increments between 10% and 90%. The default as shown in Figure 27 is 75%.

  • Page 57: Dfs And Regulatory Parameters For 5.8 & 5.4 Ghz Radios

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Table 17: PMP 400/430 AP Control Slot Settings Number of SMs that Suggested Number of Register to the AP Control Slots 1 to 10 or 2 11 to 50 51 to 150 151 to 200 Note 1: Any OFDM sector with the Hi Priority Channel enabled on any SM should be configured with at least 1 Control Slot on the AP.

  • Page 58: Background And Operation

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Figure 28: DFS Status on AP "Home => DFS Status" page. Background and Operation The modules use region-specific DFS based on the “Region Code” selected on the module’s “Configuration => General” page. By directing installers and technicians to set the Region Code correctly, the operator gains confidence the module is operating according to national or regional regulations without having to deal with the details for each region.

  • Page 59: Table 18: 5.4 / 5.8 Ghz Ofdm Dfs Operation Based On Region Code

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Table 18: 5.4 / 5.8 GHz OFDM DFS Operation based on Region Code Region Country Weather Radar Frequency AP/BHM SM/BHS Code Code Notch-Out 5.4 GHz FCC/IC DFS No effect Canada, North America United states...
  • Page 60 PMP 400/430 and PTP 200/230 Series Configuration and User Guide After an AP or BHM with DFS boots it performs a channel availability check on its main carrier frequency for 1 minute, monitoring for the radar signature without transmitting. If no radar signature is detected during this minute, the module then proceeds to normal beacon transmit mode.

  • Page 61: Setting Dfs And Regulatory Parameters

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Setting DFS and Regulatory Parameters Setting the Region/Country Code All System Release 11.2 modules display Region Code settings on the Configuration => General page as shown in Figure 29 on page All System Release 12.1 modules display Region Code and Country Code settings on the Configuration =>...
  • Page 62 PMP 400/430 and PTP 200/230 Series Configuration and User Guide An SM/BHS has both a configurable Region/Country Code and, once it registers to an AP or BHM, an active Regional Code. After an SM/BHS registers to an AP/BHM, it uses the region code of the AP/BHM to determine its DFS behavior and displays the AP/BHM’s region code on its Home =>...

  • Page 63: Installation Color Code

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Installation Color Code With this feature enabled on the AP and SM, operators may install and remotely configure SMs without having to configure matching color codes between the modules. While the SM is accessible for configuration from above the AP (for remote provisioning) and below the SM (for local site provisioning), no user data is passed over the radio link.

  • Page 64: Network Control Parameters

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Network Control Parameters Parameters for High Priority/DiffServ, NAT, DHCP, VLAN, MIR, and CIR are configured the same as they are in standard Canopy. The operator may (or may not) want to take advantage of the higher possible MIR to provide greater bandwidth to a given SM.

  • Page 65: Table 19 Interoperability Configuration Options

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Table 19 Interoperability configuration options AP Registration Option Description PMP 430 The SM will only register to a PMP 430 AP PMP 450 Interoperability Mode The SM will only register to a PMP 450 AP When the SM is first upgraded to 12.2, it will try to register to a PMP 430 AP.

  • Page 66: Table 20 Interoperability Snmp Objects

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Table 20 Interoperability SNMP objects Name Access Syntax / Description pmp430ApRegitratio .1.3.6.1.4.1.161.19.3 WHISP-SM- read-write INTEGER nOptions .2.1.145 {pmp430(1),pmp450(2), both(3)} Selects AP types (430 and/or 450) that are available for the PMP430 SM.

  • Page 67: Improved Session Status Page

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Improved Session Status Page System Release 13.1.1 introduces an ‘Improved Session Status page’. There are 4 tabs that break the SM’s Session information into Device, Session, Power, and Configuration sections. Device Tab The Device tab provides information on the Subscriber’s LUID and MAC, Hardware, Software, FPGA versions and the state of the SM (Registered and/or encrypted) as shown in...

  • Page 68: Figure 34 Power Tab

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Power Tab The Power tab provides information on the SMs Hardware State, Current Rate, AP Rx Power, Signal Strength Ratio, and Signal to Noise ratio as shown in Figure Figure 34 Power tab Configuration Tab The Configuration tab provides information on the SMs Uplink or Downlink (UL/DL) Sustained Data Rate, UL/DL Burst Allocation, UL/DL Burst Rate, UL/DL Low Priority CIR, UL/DL High CIR, UL/DL High Priority...

  • Page 69: Migration And Upgrade Path From Pmp 430 Network To Pmp 450 Network

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Migration and upgrade path from PMP 430 network to PMP 450 network With System Release 12.2 a currently deployed PMP 430 sector can be migrated to a PMP 450 sector using the interoperability feature.
  • Page 70 PMP 400/430 and PTP 200/230 Series Configuration and User Guide Guard Band One difference between a PMP 450 deployment and a mixed PMP 450 – PMP 430 deployment using the interoperability feature is that in a PMP 450 deployment, adjacent sectors can operate with adjacent frequencies, while in a mixed PMP 450 –...

  • Page 71: Figure 36: Forced Switch Radio Mode

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Power requirements Since the power requirements of a PMP 430 AP are different than that of a PMP 450 AP, operators will need to make sure they can power their PMP 450 AP at the PMP 430 AP site. The PMP 430 AP requires 56V; the PMP 450 AP requires 30V.

  • Page 72: Table 21: Switch Radio Mode Snmp Object

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide The following snmp object can be used to configure the radio mode on the PMP 430 Table 21: Switch radio mode SNMP object switchRadioModeAndReboot!@#.iso.org.dod.internet.private.enterprises.mot. Name whispRoot.whispProducts.whispSm.whispSmConfig.switchRadioModeAndReboot .1.3.6.1.4.1.161.19.3.2.1.146 WHISP-SM-MIB Syntax INTEGER {finishedReboot(0), switchRadioModeAndReboot(1)} Access read-write Status current DefVal...
  • Page 73 PMP 400/430 and PTP 200/230 Series Configuration and User Guide 64 QAM SISO -73 dBm 64 QAM MIMO -70 dBm 256 QAM MIMO -60 dBm When the PMP 430 AP is replaced by the PMP 450 AP, the uplink sensitivity values for each modulation are now higher, meaning that the PMP 430 SM may now support a lower modulation mode in the uplink transmission.

  • Page 74: Table 23: Throughput (Pmp 430 Ap To Pmp 430 Sm)

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide The following table summarizes the total (DL+UL) expected throughput. Table 23: Throughput (PMP 430 AP to PMP 430 SM) PMP 430 AP to QPSK 16QAM 64QAM PMP 430 SM 3.5 Mbps 7 Mbps 10.5 Mbps 5 MHz...

  • Page 75: Pmp 430 - Pmp 450 Link Budget Comparison

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide PMP 430 – PMP 450 Link Budget comparison The following table summarizes expected performance for a PMP 430 system in a 20 MHz channel. Table 26: Performance (PMP 430 system) Range (w/FD Margin) Link Budget...

  • Page 76: Table 27: Performance (Mix Of Pmp 450 And Pmp 430 Sms)

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide The following table summarizes expected performance for a PMP 450 system in a 20 MHz channel with a mix of PMP 450 SMs and PMP 430 SMs. Table 27: Performance (Mix of PMP 450 and PMP 430 SMs) Range (w/FD Margin) Link Budget...
  • Page 77 PMP 400/430 and PTP 200/230 Series Configuration and User Guide Example 1: Large distance - augmentation needed, doubling of throughput Subscriber 1 has a PMP 430 SM at a 7 mile distance from the PMP 430 AP and no antenna augmentation. In a PMP 430 system this subscriber can communicate in QPSK mode.

  • Page 78: Chapter 5: Installation

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Chapter 5: Installation WARNING!  Installing a unit usually involves height, electricity, and exposure to RF (Radio Frequency) energy. To avoid personal injury, follow applicable national and local safety regulations along with industry best practices. Also follow the specific guidelines in this document, including Exposure Separation Distances on page  ...

  • Page 79: Procedure 3: Assembling A 5.8 Or 5.4 Ghz Ap, And Attaching To Tower

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Procedure 3: Assembling a 5.8 or 5.4 GHz AP, and attaching to tower Perform a parts check to ensure all parts are present. Assemble the upper bracket, per the diagram that comes with the antenna. Connect the radio to the antenna by sliding it into the captive space.
  • Page 80 PMP 400/430 and PTP 200/230 Series Configuration and User Guide Use standard work and safety practices for tower Connect the lower bracket to climbing. Connect the Hang the antenna assembly on the pole or tower using the upper bracket to a pole, the upper bracket.

  • Page 81: Procedure 4: Assembling A 4.9 Ghz Ap, And Attaching To Tower

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Adjust down tilt per calculations done during Planning. Confirm down tilt after the radio is operational using SMs in the field at selected test locations. Procedure 4: Assembling a 4.9 GHz AP, and attaching to tower Perform a parts check to ensure all parts are present.
  • Page 82 PMP 400/430 and PTP 200/230 Series Configuration and User Guide Connect the radio to the antenna by sliding it into the captive space. Secure the radio to the antenna using the two bolts provided. Connect coax N-connector. The center conductor of the N-type connector is very sensitive to electrostatic discharge.
  • Page 83 PMP 400/430 and PTP 200/230 Series Configuration and User Guide Adjust down tilt per previous calculations done during Planning. Confirm down tilt after the radio is operational using SMs in the field at selected test locations. Marking the degree of down tilt on the bracket may be useful for future reference.

  • Page 84: Figure 37: Ground Lug Highlighted On Ap

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Procedure 5: Cabling and Grounding/Earthing the AP Standard Canopy installation practices apply, including using shielded Ethernet cable for all infrastructure cabling, using drip loops, providing extra cable for future use at any termination, and ensuring the tower or structure is fully grounded (Protective Earth –...

  • Page 85: Installing An Sm Or Bh With An Integrated Antenna

    Use an SMMB2 SM mounting bracket for the PMP 54400 and 49400 SM and a SMMB1 mounting bracket for the PMP 58430/54430 SM and PTP 58230/54230 BH. The PMP 400 Series SM or the PTP 200 Series BH is heavier and has a higher wind load than a classic Canopy module, and so the stronger SMMB2 is required.

  • Page 86: Figure 39: Dielectric Grease - Insert Ethernet Cable

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Figure 39: Dielectric Grease - Insert Ethernet Cable The PMP 400 SM and PTP 200 BH have a ground/Protective Earth lug, just like the AP. Although not as critical as in the case of the AP (where there is metal-to-metal connectivity through the coax and antenna to ground), the lug can be used to ground the SM or BH for additional protection.

  • Page 87: Chapter 6: Regulatory And Legal Notices

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Chapter 6: Regulatory and Legal Notices Important Note on Modifications Intentional or unintentional changes or modifications to the equipment must not be made unless under the express consent of the party responsible for compliance. Any such modifications could void the user’s authority to operate the equipment and will void the manufacturer’s warranty.

  • Page 88: Table 28: Us Fcc Ids And Industry Canada Certification Numbers And Covered Configurations

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Table 28: US FCC IDs and Industry Canada Certification Numbers and Covered Configurations FCC ID Industry Frequencies Module Antenna Maximum Canada Cert Families Tx Output Number Power ABZ89FT7634 5 MHz channels, 5780APC 17 dBi connectorized 19 dBm...
  • Page 89 PMP 400/430 and PTP 200/230 Series Configuration and User Guide ABZ89FT7637 109W-5480 10 MHz channels, 5480 APC 17 dBi connectorized PCTEL Model centered on 5480- 8514724E01 antenna (60° 5595 and 5655-5710 x 5° -3 dB beam width) MHz in 5 MHz 10 dBm with 1 dB connector cable increments (within the...

  • Page 90: Industry Canada (Ic) Notification

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide 10 MHz channels, centered on 5730- 5845 in 5 MHz increments (within the 5725-5850 MHz ISM band) 20 MHz channels, centered on 5735- 5840 in 5 MHz increments (within the 5725-5850 MHz ISM band) ABZ89FT7629...

  • Page 91: Regulatory Requirements For Cept Member States (Www.cept.org)

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to RSS-210 of Industry Canada. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 92: Equipment Disposal

    EU Declaration of Conformity for RoHS Compliance Cambium Networks hereby declares that these Cambium products are in compliance with the essential requirements and other relevant provisions of Directive 2002/95/EC, Restriction of the use of certain Hazardous Substances (RoHS) in electrical and electronic equipment.

  • Page 93: Brazil Notification

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Brazil Notification Brazil regulatory authorities have not approved these devices for operation in Brazil. Until they are approved, they are not available for sale in Brazil, and the information in this section is provisional and preliminary.

  • Page 94: Exposure Separation Distances

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide Table 29: Disclosure Table 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (PBB) (PBDE) 金属部件 × ○ × × ○ ○ 电路模块 × ○ × × ○ ○...

  • Page 95: Table 31: Calculated Exposure Distances And Power Compliance Margins

    PMP 400/430 and PTP 200/230 Series Configuration and User Guide  ICNIRP (International Commission on Non-Ionizing Radiation Protection) guidelines for the general public. See the ICNIRP web site at http://www.icnirp.de/ and Guidelines for Limiting Exposure to Time-Varying Electric, Magnetic, and Electromagnetic Fields. The applicable power density exposure limits from the documents referenced above are ...

  • Page 96: Legal Notices

    Cambium agree as follows: Grant of License. Subject to the following terms and conditions, Cambium Networks grants to you a personal, revocable, non-assignable, non-transferable, non-exclusive and limited license to use on a single piece of equipment only one copy of the software contained on this disk (which may have been pre-loaded on the equipment)(Software).
  • Page 97 PMP 400/430 and PTP 200/230 Series Configuration and User Guide THIS LIMITED WARRANTY IS THE ONLY WARRANTY PROVIDED BY CAMBIUM, AND CAMBIUM AND ITS LICENSORS EXPRESSLY DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OF IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
  • Page 98 PMP 400/430 and PTP 200/230 Series Configuration and User Guide claim or controversy involves intellectual property, or (iii) interim relief from a court is necessary to prevent serious and irreparable injury to that party or to others. General. Illinois law governs this license. The terms of this license are supplemental to any written agreement executed by both parties regarding this subject and the Software Cambium is to license you under it, and supersedes all previous oral or written communications between us regarding the subject except for such executed agreement.
