to move the tester to the far-end to have the measurement.

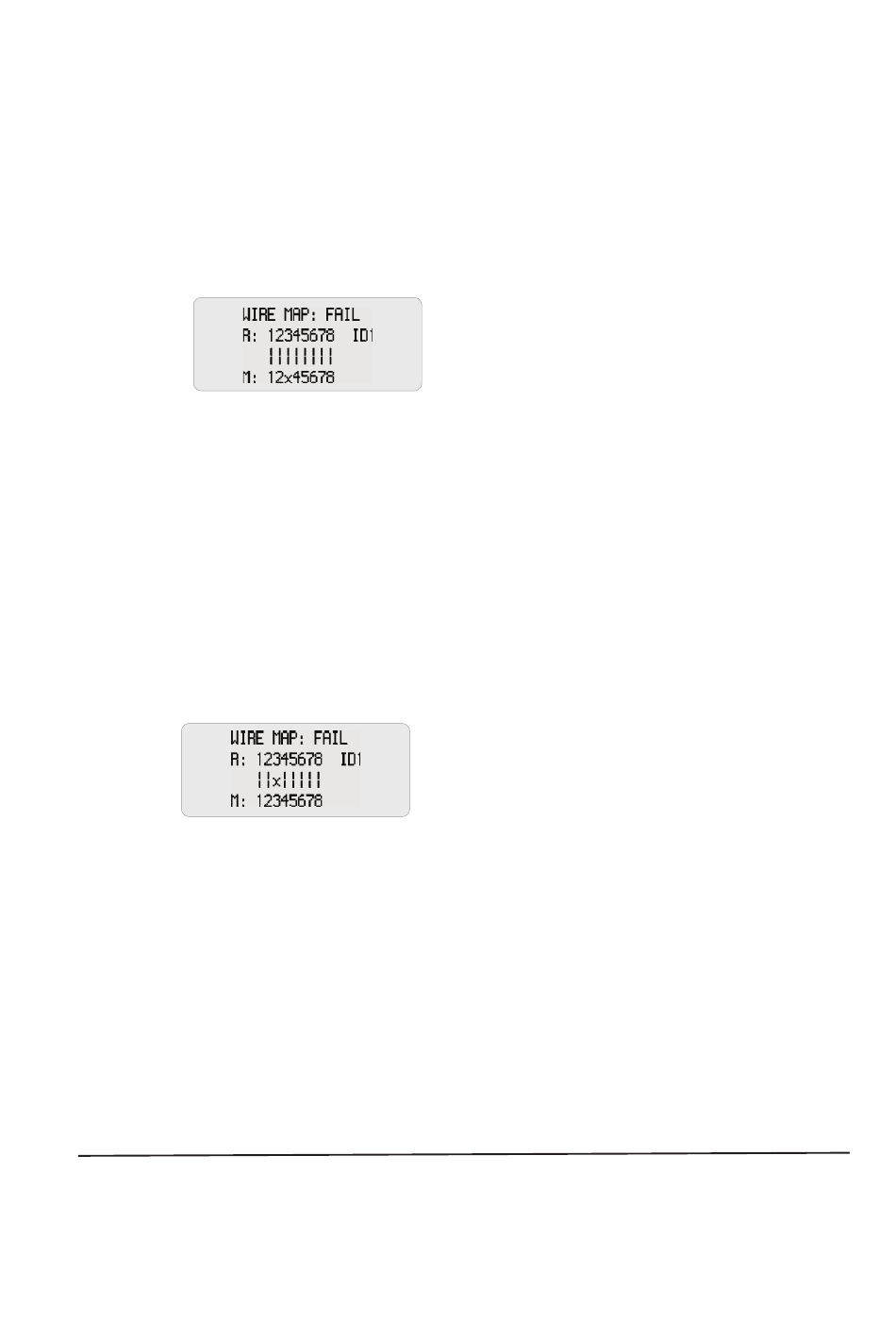

Test Result 5: Wiring diagram (WIREMAP) display when there is an
open circuit at the near-end of cable.
It will display wiring diagram (WIREMAP) as follows if there is an open
circuit at the near-end plug of the cable:
"M:" line "3" pin location displays "x", it indicates an open circuit at near- end
plug "3" pin and the open circuit is located nearby the near-end plug. (The open
circuit should be located within 10% cable length if it is measured from the near-
end plug)
Test Result 6: Wiring diagram (WIREMAP) display when there is an
open circuit in the middle of the cable.
It will display wiring diagram (WIREMAP) as follows if there is an open circuit in
the middle of the cable:
"|" line "3" pin location displays "x", it indicates an open circuit in the middle of
"3" pin cable. (The open circuit should be located within 10%
- 90% cable length if it is measured from the near-end plug.) For further locating
open circuit, the pair and length function (PAIR & LENGTH) of the tester could be
used as detailed hereinafter.
