At the moment, push A== key to restart testing or push PAIR&L key to return
main menu.

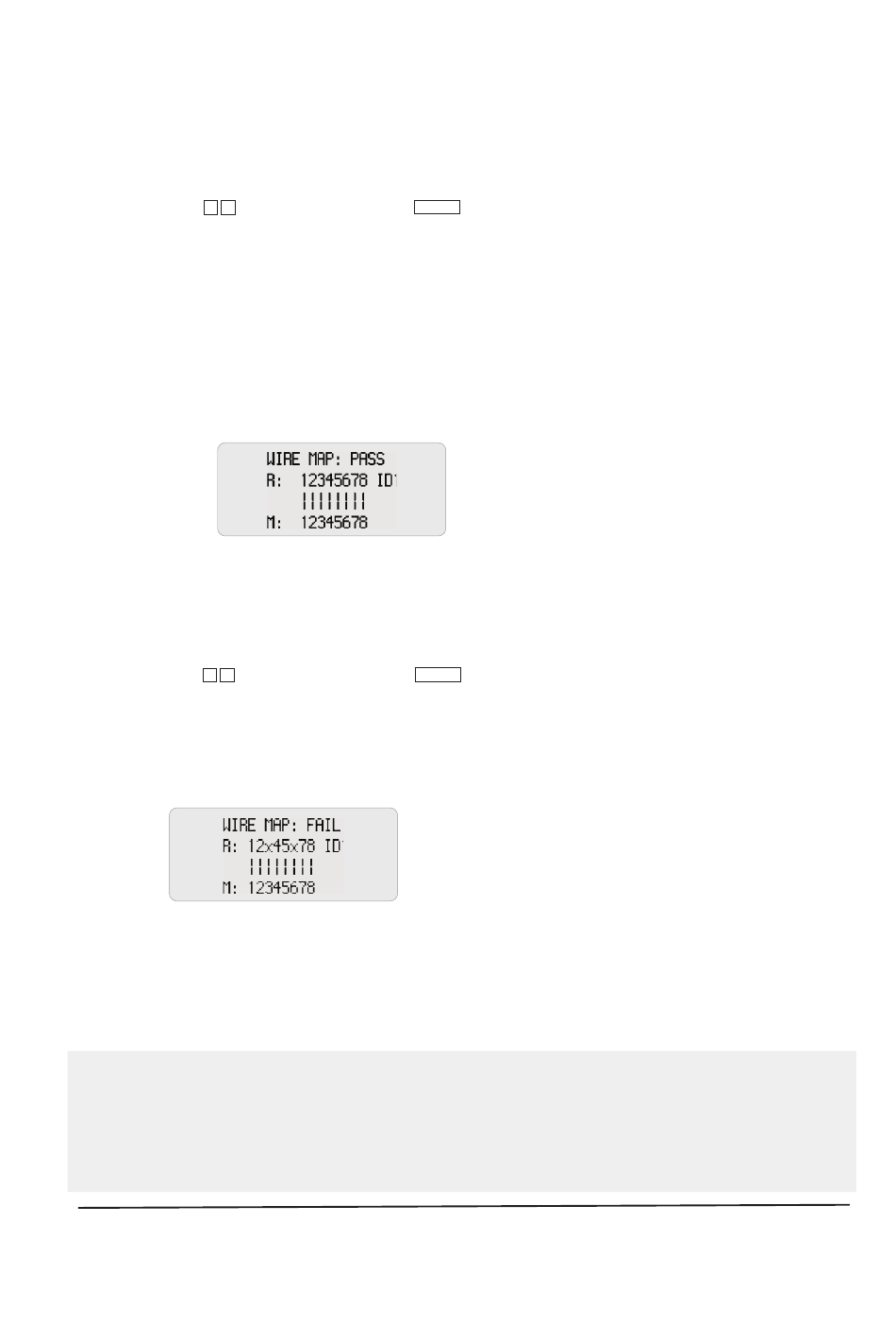

Test Result 3: Normal wiring diagram (WIREMAP) display
The tester will automatically detect far-end matcher (ID) or local port (L) cable
and it will display wiring diagram (WIREMAP) as follows if it is found the far-
end matcher (ID) or the local port (L) on the far-end of cable to be checked:
"R:" line shows RJ45 jack pin number of far-end port and "ID1"is the far- end
matcher number.
"|" line shows the connecting line between far-end port and master port. "M:"
line shows the RJ45 jack pin number of master port.
At the moment, push A==== key to restart testing or push PAIR&L key to return
main menu.
Test Result 4: Wiring diagram (WIREMAP) display when there is an
open circuit at the far-end of cable.
"R:" line "3" and "6" pins location display "x", it indicates an open circuit in far-
end plug "3" and "6" pins and the open circuit is located nearby the far-end
plug.(The open circuit should be located within 10% cable length if it is
measured from the far-end plug)
Note: If you use far-end matcher (ID) to measure wiring diagram (WIREMAP),
because the test is made via the paired two cable cores, the open circuit at the
far-end always displays in pair as shown above where there is one open circuit or
all are open circuits in the far-end "3" and "6"pins. For identification, it is simple
