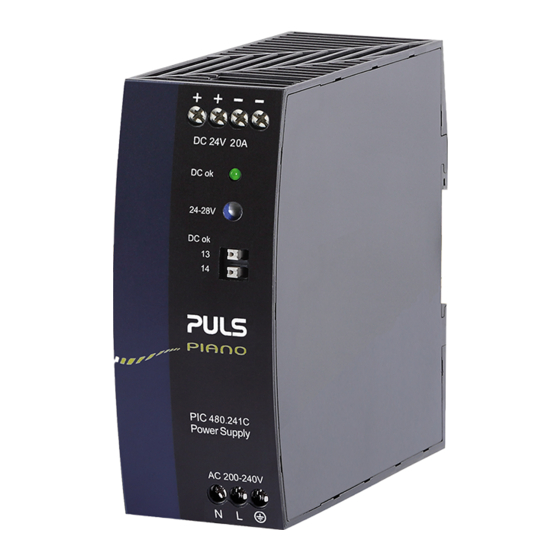

Puls PIANO Series Manual

PIANO-Series
G D
ENERAL ESCRIPTION
These PIANO series units are extraordinarily compact,
industrial grade power supplies that focus on the
essential features needed
applications. The excellent
presents many new and exciting opportunities without
compromising quality or reliability.
The mechanically robust housing is made of a high-
grade, reinforced molded material, which permits the
units to be used in surrounding temperatures up to
70°C.
Since typical industrial applications do not require
multiple mains inputs, the reduction to a regional input
voltage range (AC 200-240V) simplifies the circuitry and
has significant advantages for reliability, efficiency and
cost.
The addition of a DC-OK signal makes the unit suitable
for many industry applications such as: process,
automation and many other critical applications where
preventive function monitoring can help to avoid long
downtimes.
O N
RDER UMBERS
Power Supply PIC120.241C
PIC120.242C
Accessory YR2.DIODE
UF20.241
Mar. 2021 / Rev. 1.5 DS-PIC120.241C-EN
All parameters are specified at 24V, 5A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
in today's industrial
cost/performance ratio
with DC-OK relay
contact
without DC-OK relay
contact
Redundancy module
Buffer Module
www.pulspower.com Phone +49 89 9278 0
PIC120.241C, PIC120.242C
24V, 5A, 120W, S
P S
OWER UPPLY
 AC 200-240V Regional Input
 Cost Optimized without Compromising Quality or
Reliability.
 Width only 39mm
 Efficiency up to 90.5%
 Low No-load Power Losses
 Full Power Between -10°C and +55°C
 DC-OK Relay Contact Included
 3 Year Warranty
S - D
HORT FORM
Output voltage DC 24V
Adjustment range 24 - 28V
Output current 5A
3.1A
4.3A
2.7A
Output power 120W
75W
Output ripple < 100mVpp
AC Input voltage AC 200-240V
Mains frequency 50-60Hz
AC Input current 1.06A
Power factor 0.54
AC Inrush current 28A peak
Efficiency 90.5%
Losses 12.6W
Temperature range -10°C to +70°C
Derating 3W/°C
Hold-up time 33ms
Dimensions 39x124x124mm WxHxD
Weight 350g / 0.77lb
M
ARKINGS
IEC 61010-2-201 UL 61010-2-201
Marine
Germany
P I
INGLE HASE NPUT
ATA
at 24V, amb <55°C
at 24V, amb <70°C
at 28V, amb <55°C
at 28V, amb <70°C
ambient <55°C
ambient <70°C
20Hz to 20MHz
±10%
±6%
at 230Vac
at 230Vac
at 230Vac
at 230Vac
at 230Vac
operational
+55 to +70°C
at 230Vac
IEC 62368-1
Marine
1/22
