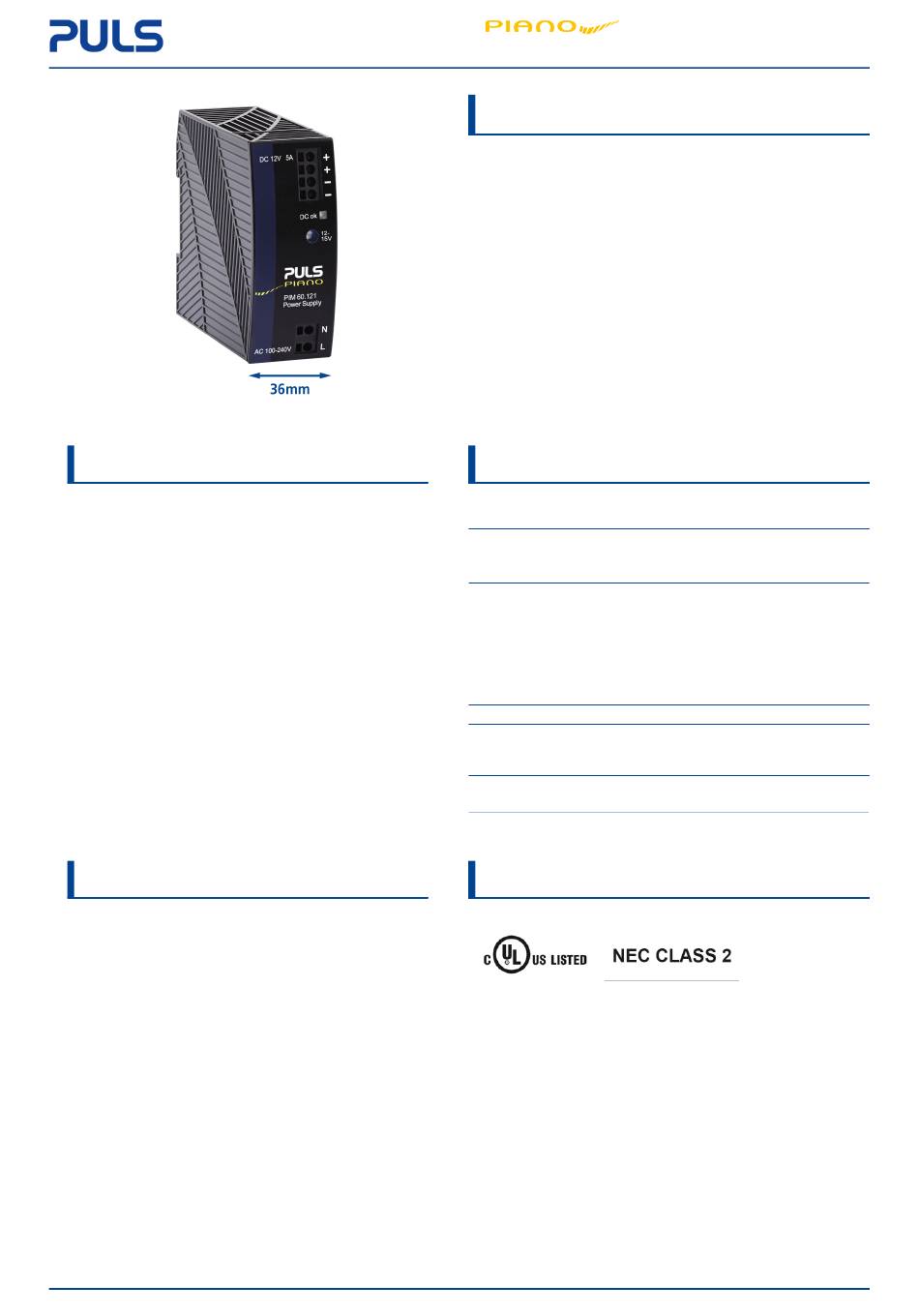

P
RODUCT DESCRIPTION

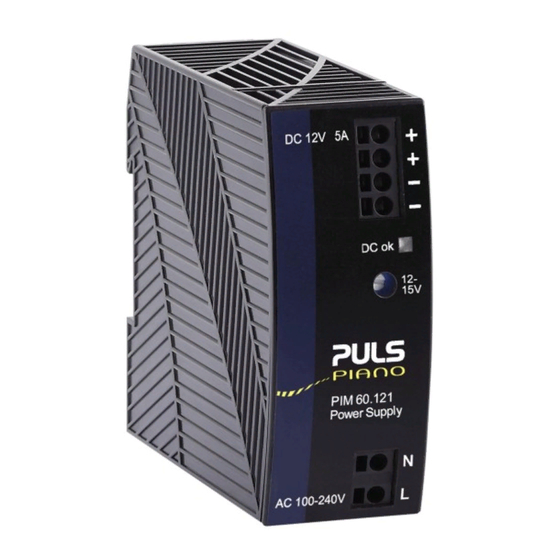

The PIM60.121 is a DIN rail mountable single-phase-
input power supply, which provides a floating,
stabilized and galvanically separated SELV/PELV/ES1
output voltage. The output fulfils the requirements
for a limited power source according to NEC CLASS 2.
The device is equipped with push-in terminals, which
are optimized for automated wiring.
The mechanically robust housing is made of a high-
grade, reinforced molded material, which permits
surrounding temperatures up to +70°C.
The unit is designed as "Class of Protection" II unit and
fulfills the safety and EMC requirements without an
input PE connection. This saves wiring costs.
The PIANO family is a compact industrial grade DIN rail
power supply series that focuses on the essential
features needed in today's industrial applications. The
excellent cost/performance ratio does not compromise
quality or reliability.
O
RDER NUMBERS
Description: Power supply PIM60.121-xx
Order Number:
PIM60.121
All parameters are specified at 24V, 5A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
Feb. 2022 / Rev. 2.0 DS-PIM60.121-EN
P
OWER SUPPLY
• AC 100-240V Wide-range input
• NEC CLASS 2 compliant
• Cost optimized without compromising quality or
reliability
• No PE connection required
• Width only 36mm
• Efficiency up to 90.7%
• Low no-load power losses
• Full power between -10°C and +60°C
• Push-in terminals
• 3 Year warranty
S
HORT-FORM DATA
Output voltage
Adjustment range 12-15V
Output current
Input voltage AC
Mains frequency
Input current AC
Power factor
Input inrush
current
Efficiency
Power losses
Hold-up time
Temperature
range
Size (w x h x d)
Weight
M
AIN APPROVALS
For details and the complete approval list, see chapter 18.
Ind. Cont. Eq.
www.pulspower.com
1AC 12V 60W
DC 12V Nominal
Factory setting 12V
5-4A Below +60°C ambient
3.8-3A At +70°C ambient
Derate between +60°C and +70°C
± 10%
AC 100-240V
±6%
50-60Hz
1 / 0.6A At 120 / 230Vac
0.55 / 0.47 At 120 / 230Vac
15 / 36A At 120 / 230Vac, +40°C,
peak
cold start
90.2 / 90.7% At 120 / 230Vac
6.5 / 6.2W At 120 / 230Vac
23 / 107ms At 120 / 230Vac
-10°C to +70°C
36x90x91mm Without DIN rail
225g / 0.5lb
PIM60.121
