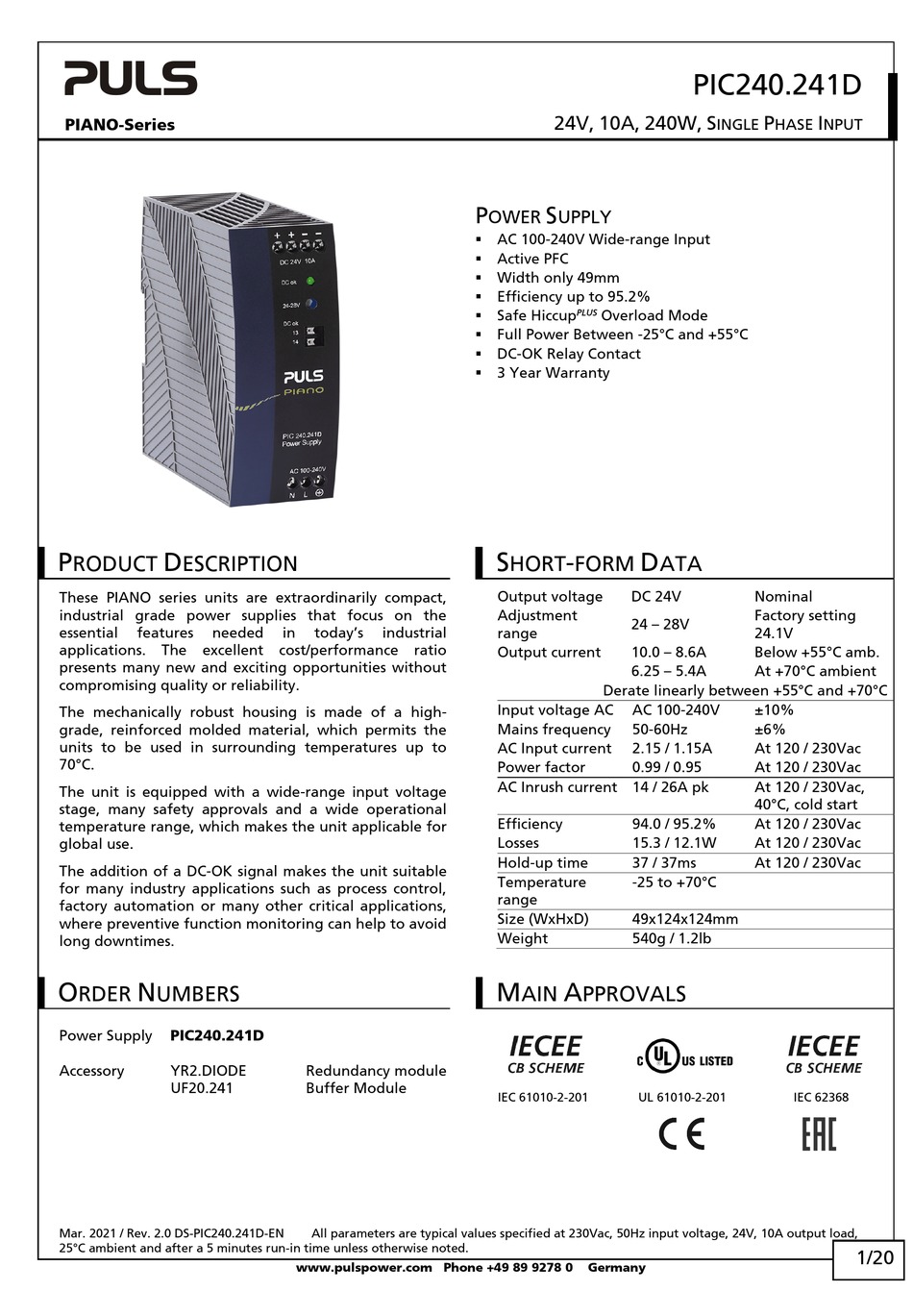

Puls PIANO Series Manual

PIANO-Series
P D
RODUCT ESCRIPTION
These PIANO series units are extraordinarily compact,
industrial grade power supplies that focus on the
essential features needed
applications. The excellent
presents many new and exciting opportunities without
compromising quality or reliability.
The mechanically robust housing is made of a high-
grade, reinforced molded material, which permits the
units to be used in surrounding temperatures up to
70°C.
The unit is equipped with a wide-range input voltage
stage, many safety approvals and a wide operational
temperature range, which makes the unit applicable for
global use.
The addition of a DC-OK signal makes the unit suitable
for many industry applications such as process control,
factory automation or many other critical applications,
where preventive function monitoring can help to avoid
long downtimes.
O N
RDER UMBERS
Power Supply PIC240.241D
Accessory YR2.DIODE
UF20.241
Mar. 2021 / Rev. 2.0 DS-PIC240.241D-EN
25°C ambient and after a 5 minutes run-in time unless otherwise noted.
in today's industrial
cost/performance ratio
Redundancy module
Buffer Module
All parameters are typical values specified at 230Vac, 50Hz input voltage, 24V, 10A output load,
www.pulspower.com Phone +49 89 9278 0
24V, 10A, 240W, S
P S
OWER UPPLY
 AC 100-240V Wide-range Input
 Active PFC
 Width only 49mm
 Efficiency up to 95.2%
 Safe Hiccup Overload Mode
PLUS
 Full Power Between -25°C and +55°C
 DC-OK Relay Contact
 3 Year Warranty
S - D
HORT FORM
Output voltage DC 24V
Adjustment
24 – 28V
range
Output current 10.0 – 8.6A
6.25 – 5.4A
Derate linearly between +55°C and +70°C
Input voltage AC AC 100-240V
Mains frequency 50-60Hz
AC Input current 2.15 / 1.15A
Power factor 0.99 / 0.95
AC Inrush current 14 / 26A pk
Efficiency 94.0 / 95.2%
Losses 15.3 / 12.1W
Hold-up time 37 / 37ms
Temperature -25 to +70°C
range
Size (WxHxD) 49x124x124mm
Weight 540g / 1.2lb
M A
AIN PPROVALS
IEC 61010-2-201 UL 61010-2-201
Germany
PIC240.241D
P I
INGLE HASE NPUT
ATA
Nominal
Factory setting
24.1V
Below +55°C amb.
At +70°C ambient
±10%
±6%
At 120 / 230Vac
At 120 / 230Vac
At 120 / 230Vac,
40°C, cold start
At 120 / 230Vac
At 120 / 230Vac
At 120 / 230Vac
