Puls PIANO Series Datasheet

PIANO-Series
P D
RODUCT ESCRIPTION
These PIANO series units are extraordinarily compact,
industrial grade power supplies that focus on the
essential features needed
applications. The excellent
presents many new and exciting opportunities without
compromising quality or reliability.
The mechanically robust housing is made of a high-
grade, reinforced molded material, which permits the
units to be used in surrounding temperatures up to
70°C.
The unit is equipped with an auto-select input voltage
stage for 100-120V and 200-240V mains systems, many
safety approvals and a wide operational temperature
range, which makes the unit applicable for global use.
The addition of a DC OK signal makes the unit suitable
for many industry applications such as process control,
factory automation or many other critical applications,
where preventive function monitoring can help to avoid
long downtimes.
O N
RDER UMBERS
Power Supply PIC120.241D
Accessory PIRD20.241
UF20.241
Mar. 2021 / Rev. 1.3 DS-PIC120.241D-EN 2 All parameters are typical values specified 230Vac, 50Hz input voltage, 24V, 5A
output load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
in today's industrial
cost/performance ratio
Redundancy module
Buffer Module
www.pulspower.com Phone +49 89 9278 0

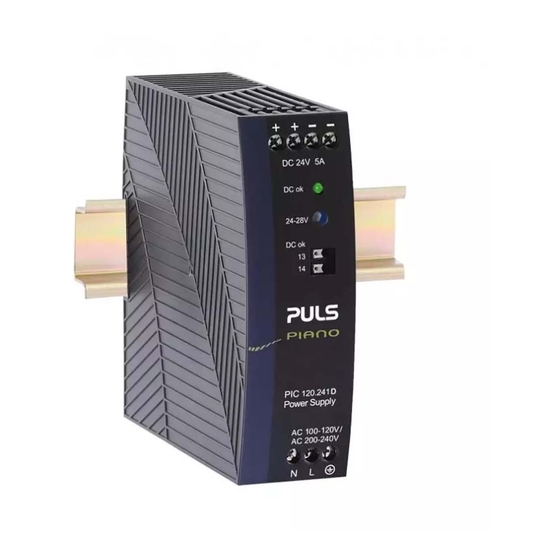

24V, 5A, 120W, S
P S
OWER UPPLY
 AC 100-120V / 200-240V Auto-select Input
 Width only 39mm
 Efficiency up to 95.2%
 Full Power Between -10°C and +55°C
 DC OK Relay Contact
 3 Year Warranty
S - D
HORT FORM
Output voltage DC 24V
Adjustment
24 – 28V
range
Output current For AC 110-120V,AC 208-240V mains:
5.0 – 4.3A
3.1 – 2.7A
For AC 100, 120V mains:
5.0 – 4.3A
2.5 – 2.1A
Derate linearly between +50°C and +70°C
Input voltage AC AC 100-120V /
200-240V
Mains frequency 50-60Hz
AC Input current 1.72 / 1.05A
Power factor 0.64 / 0.54
AC Inrush current 22 / 33A pk
Efficiency 91.2 / 92.3%
Losses 11.6 / 10.0W
Hold-up time 51 / 50ms
Temperature -25 to +70°C
range
Size (WxHxD) 39x124x124mm
Weight 370g / 0.81lb
M A
AIN PPROVALS
IEC 61010-2-201 UL 61010-2-201
Germany
PIC120.241D
P I
INGLE HASE NPUT
ATA
Nominal
Factory setting
24.1V
Below +55°C amb.
At +70°C amb.
Below +50°C amb.
At +70°C amb.
±10%, Auto-select
±6%
At 120 / 230Vac
At 120 / 230Vac
At 120 / 230Vac,
40°C, cold start
At 120 / 230Vac
At 120 / 230Vac
At 120 / 230Vac
IEC 62368-1
1/20
