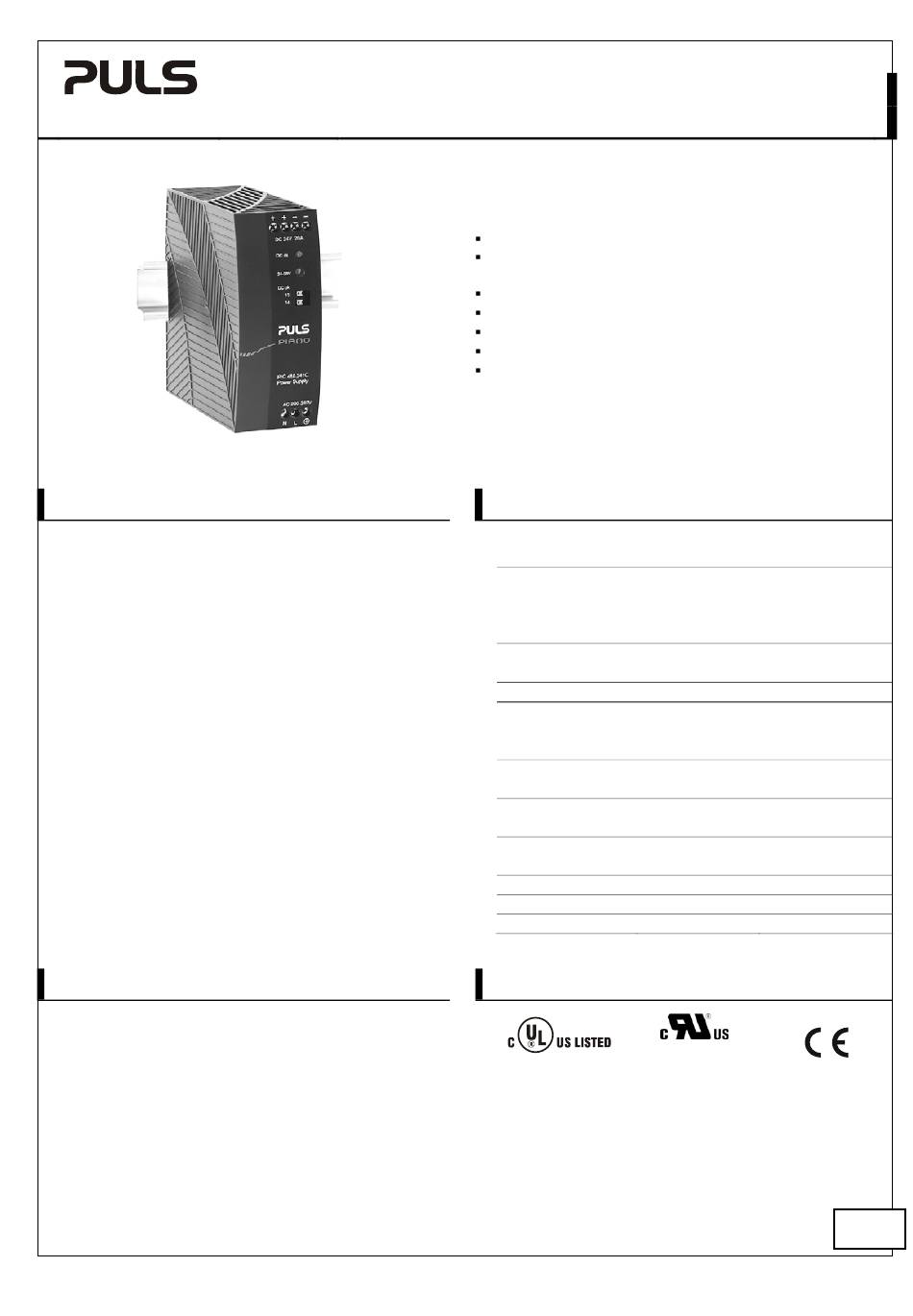

Puls PIANO Series Manual

PIANO-Series
G D
ENERAL ESCRIPTION
These PIANO series units are extraordinarily compact,
industrial grade power supplies that focus on the
essential features needed
applications. The excellent
presents many new and exciting opportunities without
compromising quality or reliability.
The mechanically robust housing is made of a high-
grade, reinforced molded material, which permits the
units to be used in surrounding temperatures up to
70°C.
Since typical industrial applications do not require
multiple mains inputs, the reduction to a regional input
voltage range (AC 200-240V) simplifies the circuitry and
has significant advantages for reliability, efficiency and
cost.
The addition of a DC-OK signal makes the unit suitable
for many industry applications such as: process,
automation and many other critical applications where
preventive function monitoring can help to avoid long
downtimes.
O N
RDER UMBERS

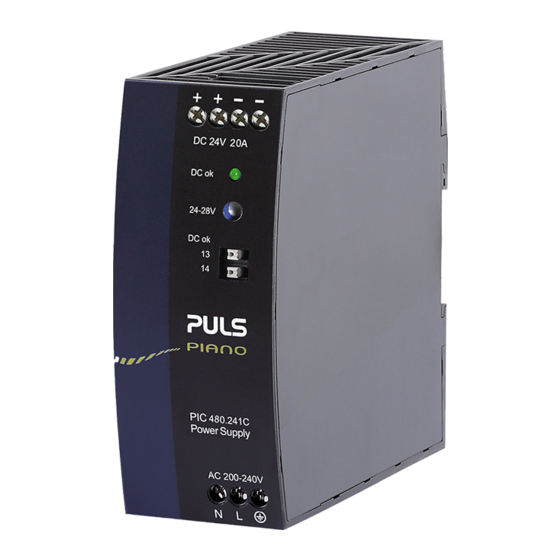

Power Supply PIC480.241C
Accessory YR40.242
PIRD20.241
Jul. 2017 / Rev. 1.1 DS-PIC480.241C-EN
All parameters are typical values specified at 24V, 20A output, 230Vac input , 25°C ambient and after a 5 minutes run-in time
unless otherwise noted.
in today's industrial
cost/performance ratio
24-28V Standard unit
with DC-OK contact
Redundancy module
Redundancy module
www.pulspower.com Phone +49 89 9278 0
24V, 20A, S
P S
OWER UPPLY
AC 200-240V Regional Input
Cost Optimized without Compromising Quality or
Reliability
Width only 49mm
Efficiency 95.7%
Full Power Between -25°C and +55°C
DC-OK Relay Contact Included
3 Year Warranty
S - D
HORT FORM
Output voltage DC 24V
Adjustment range 24 - 28V
Output current 20A
15A
17.1A
12.8A
Output power 480W
360W
Output ripple < 100mVpp
AC Input voltage AC 200-240V
Mains frequency 50-60Hz
AC Input current 2.2A
Power factor 0.99
AC Inrush current 26A peak
Efficiency 95.7%
Losses 21.6W
Temperature range -25°C to +70°C
Derating 8W/°C
Hold-up time 30ms
Dimensions 49x124x124mm WxHxD
Weight 620g / 1.37lb
M
ARKINGS
IND. CONT. EQ.
UL 508 planned
Germany
PIC480.241C
P I
INGLE HASE NPUT
ATA
at 24V, amb <55°C
at 24V, amb <70°C
at 28V, amb <55°C
at 28V, amb <70°C
ambient <55°C
ambient <70°C
20Hz to 20MHz
±10%
±6%
at 230Vac
at 230Vac
at 230Vac, 40°C
at 230Vac
at 230Vac
operational
+55 to +70°C
at 230Vac
UL 60950-1
planned
