2.2 Configuring the Fault Recorder

Before operating the fault locator, configure the device fault recorder and files you will use

for recording fault waveforms and distance calculation results. For more information, see

"Configuring the Fault Recorder" in the PM180 Operation Manual.

For proper operation of the fault locator:

1. Configure the fault triggers to be used for detecting line faults.

2. Select the waveform log for recording fault waveforms. See "Configuring the Waveform

Recorder" in the PM180 Operation Manual for details. Use a 64 or more samples-per-

cycle rate for accurate distance calculations.

3. Select a data log for recording distance calculations results and check the Log Enabled

box to allow data recording.

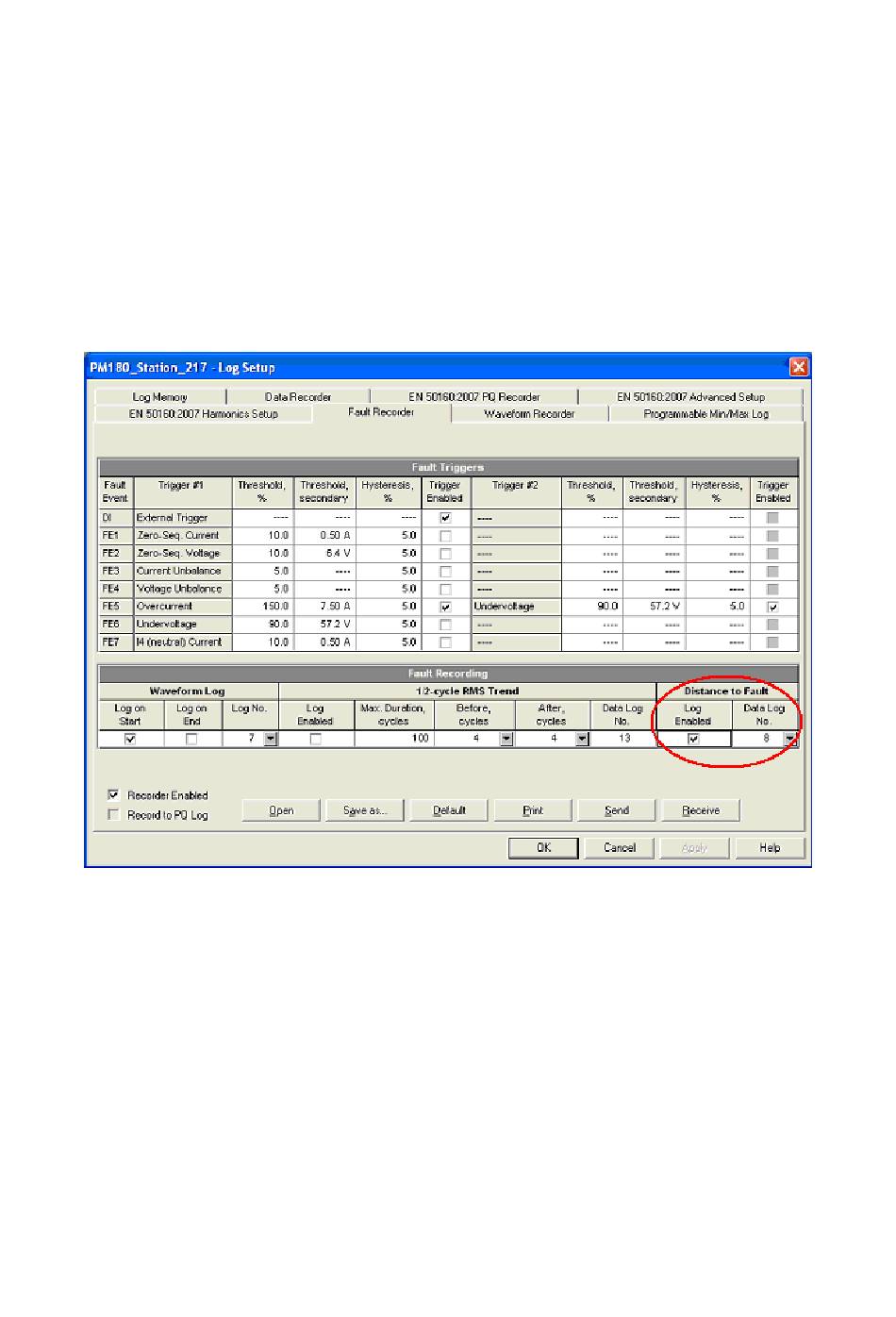

4. For recording distance calculations results, allocate the memory and configure a data log

file as shown in the picture below. See "Configuring the Device Memory" and

"Configuring the Data Recorder" in the PM180 Operation Manual for more information on

configuring the data recorder.
