Preparing the Base Station in the Simulator

When using the base station in the simulator, ensure the batteries are removed and the following
items are attached:
• Power cable
• Line out cable
The DIP switch is located in the battery compartment of the base station.
DIP switch settings
The base station should come already connected and installed inside the simulator.
To prepare the base station:
1. Set the base station DIP switch positions 6 and 7 to OFF, and 8 to ON
2. Turn the power off and on using the power switch on the outside of the base station to
ensure the DIP switch changes take effect
3. Leave the power switch on the outside of the base station in the on position
Note: Since the base station receives power from the simulator, the power switch on the outside of
the base station must remain in the ON position. Use this power switch to refresh DIP switch settings.
Do not turn the simulator off and on to refresh the DIP switch settings.
PN: 905K520652 v2.8

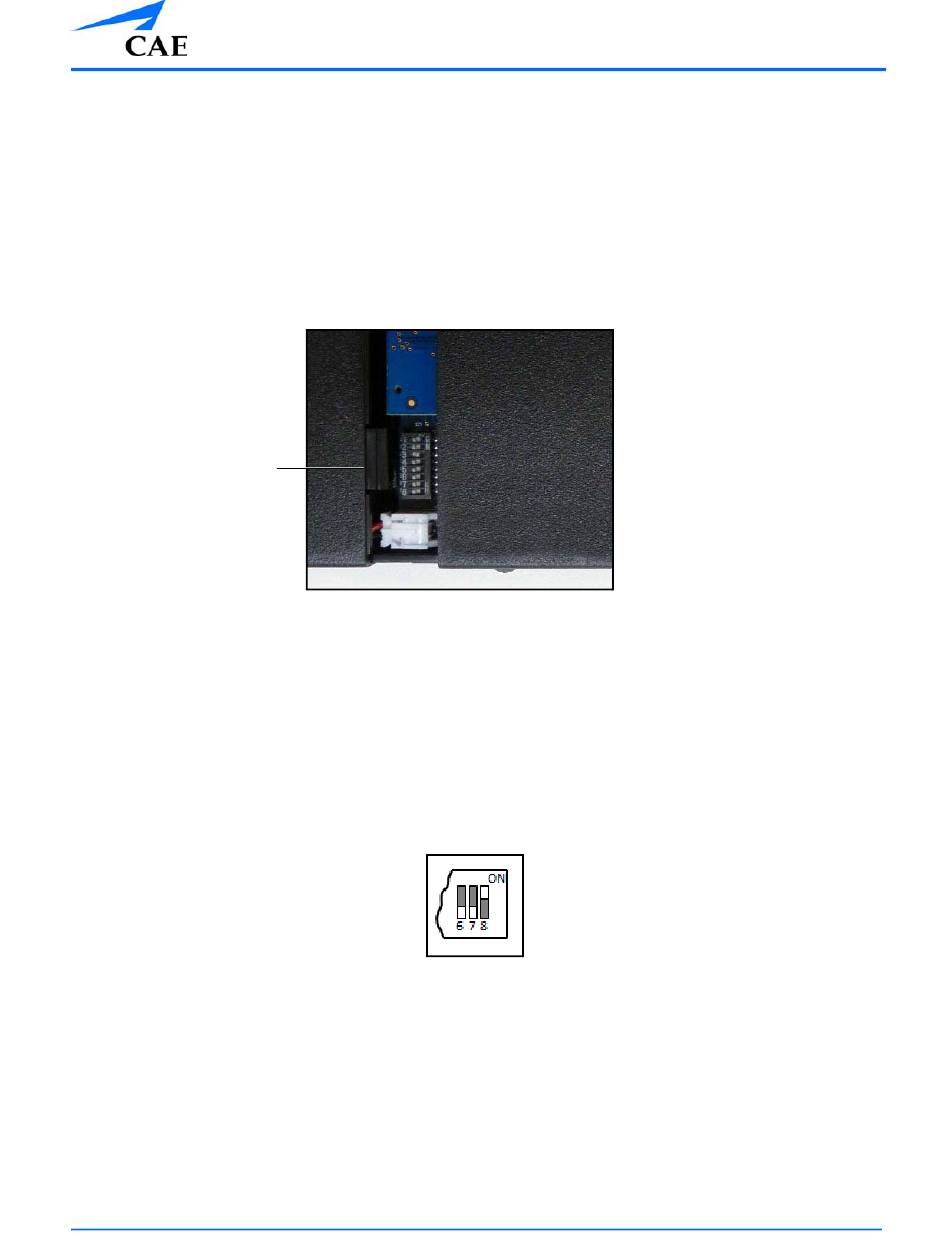

Dip Switch Settings
