Getting Started

Installation

4
The 80A05 module fits into one of the large module compartments on the front
panel of an 8000 Series instrument. See Figure 1.
To install a module, first power off the instrument using the front-panel
On/Standby switch. Then place the module in a compartment, and slowly push it
in with firm pressure. Once the module is seated, turn the hold-down screws on
the module to tighten the module into place. See Figure 1. When a 80A05
module is installed into one of the large slots, one of the smaller slots will be
disabled. Refer to the instrument's online help to identify the disabled slot.
CAUTION. To prevent damage to the module or instrument, never install or
remove a module when the instrument is powered on or when either input
connector is unprotected.
Loosen
80A05 module

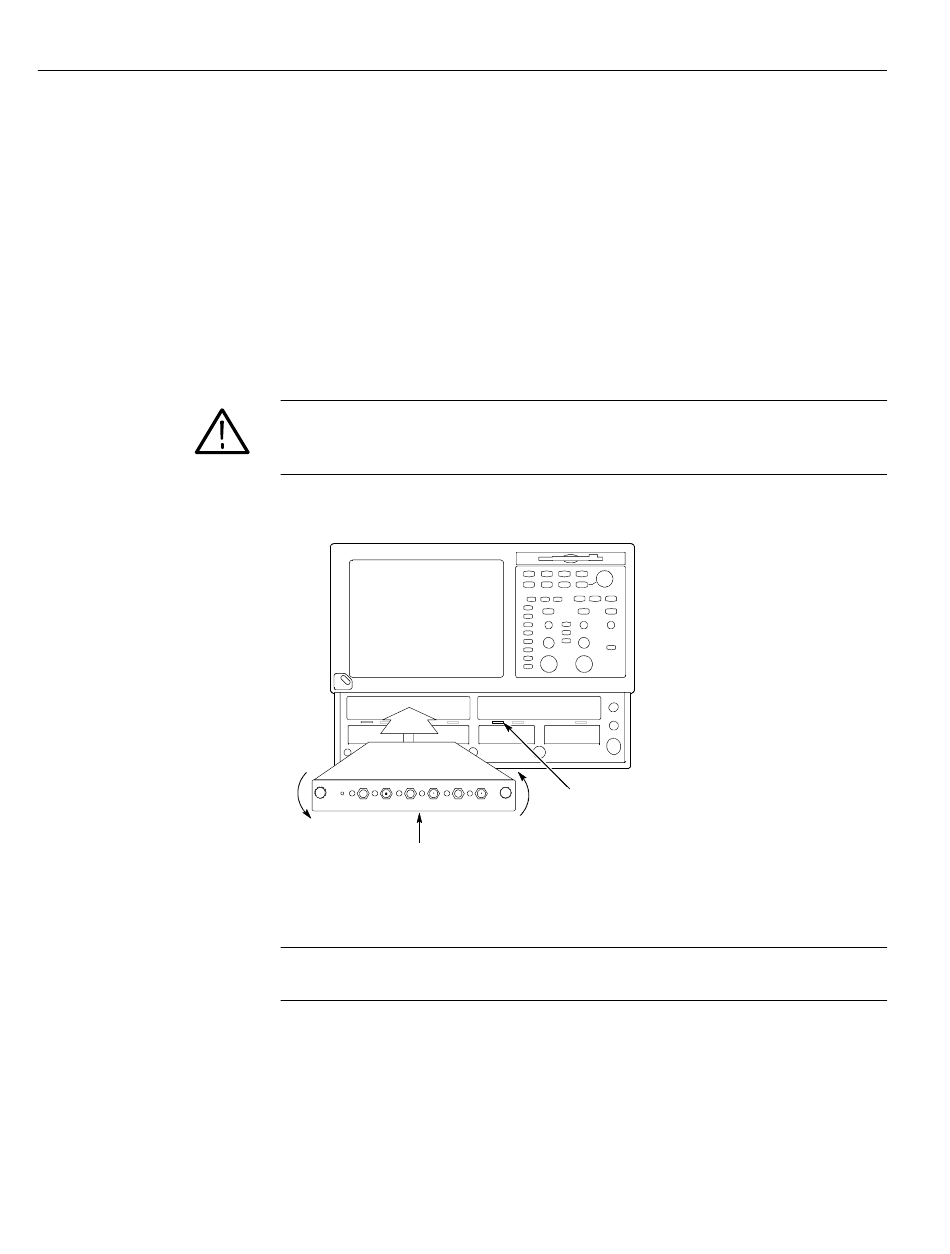

Figure 1: Installing a module
NOTE. When removing your module, first loosen the hold-down screws, and then
use the module ejector on the main instrument to eject the module.
Module compartment
ejectors
Loosen
