Operating Basics

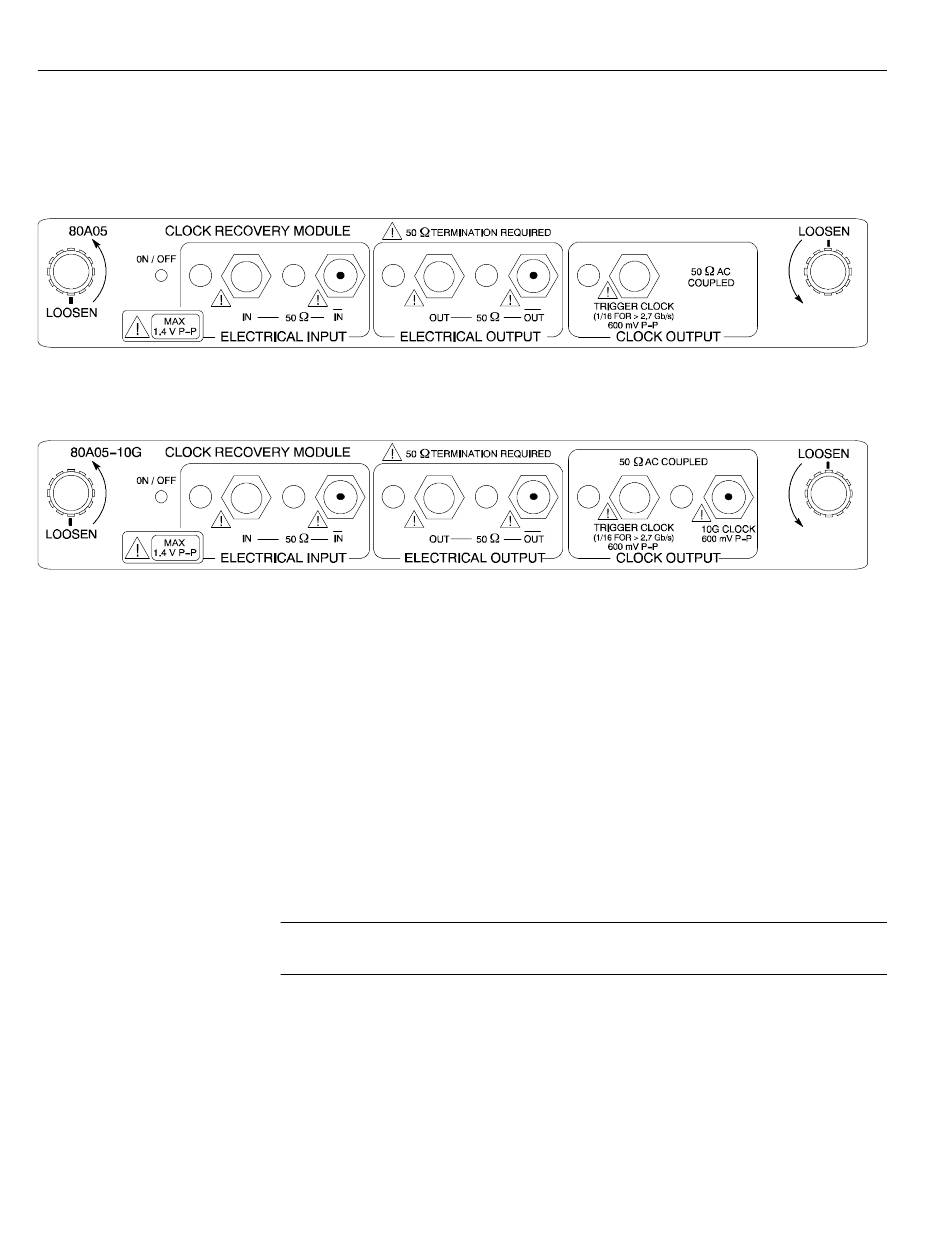

Figure 2: 80A05 module front panel
Figure 3: 80A05- 10G module front panel
Input and Output
Connectors
8
Additionally, turn the hold-down screws clockwise to make sure the module is
installed tightly.
The connectors on the front panel of the 80A05 module provide connections for
the input and output signals. All connectors are SMA female connectors.
Connector Care. Never attach a cable to a sampling-module connector if the cable
has a worn or damaged connector because you may damage the sampling-mod-
ule connector. Use extra care when attaching or removing a cable from the
connectors. Turn only the nut, not the cable. When attaching a cable to a
sampling-module connector, align the connectors carefully before turning the
nut. Use light finger pressure to make this initial connection. Then tighten the
nut lightly with a wrench.
NOTE. For best repeatability and to prolong connector life, use a torque wrench,
and tighten the connection to the range of 79-112 N⋅cm (7-10 in lb).
If the module connectors will receive heavy use, such as in a production
environment, you should install adapters (such as a Tektronix part number
015-0549-xx for 3.5 mm connectors) on the module to make connections to the
device under test.
