BLOWER FAN MOTOR SWITCH

REMOVAL
1) Disconnect negative (–) cable at battery.
2) Disconnect heater control panel illumination coupler and A/C
switch coupler (if equipped).
3) Loosen steering column assembly, refer to STEERING COL-
UMN in section 3C.

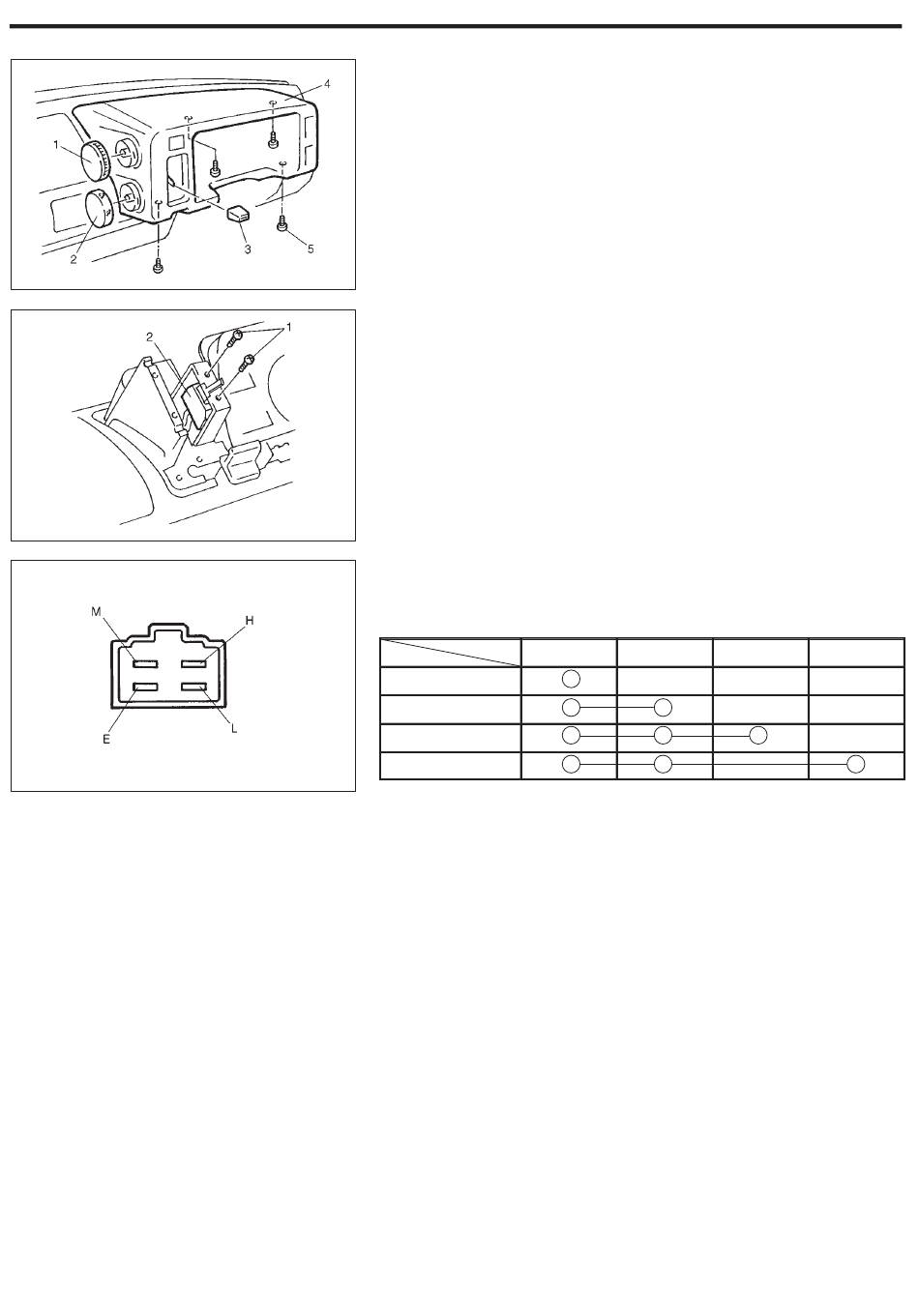

4) Remove temperature control knob (1), air outlet control knob (2)
and blower fan motor switch knob (3).
5) Remove meter cluster (4) by removing its mounting screws (5).
6) Disconnect blower fan switch coupler.
7) Loosen blower fan switch screw (1) and then remove blower fan
motor switch (2) from instrument panel.
INSPECTION
Check blower fan switch for each terminal-to-terminal continuity.
For the detail refer to "WIRING CIRCUIT" earlier in this section.
TERMINAL
POSITION
OFF
Lo
M
Hi
INSTALLATION
Reverse removal sequence to install blower fan switch.
HEATER AND VENTILATION 1A-11
E L M H
