1A-12 HEATER AND VENTILATION

AIR INLET BOX

REMOVAL
NOTE:
If vehicle is equipped with air conditioning, refer to COOLING
UNIT in Section 1B.

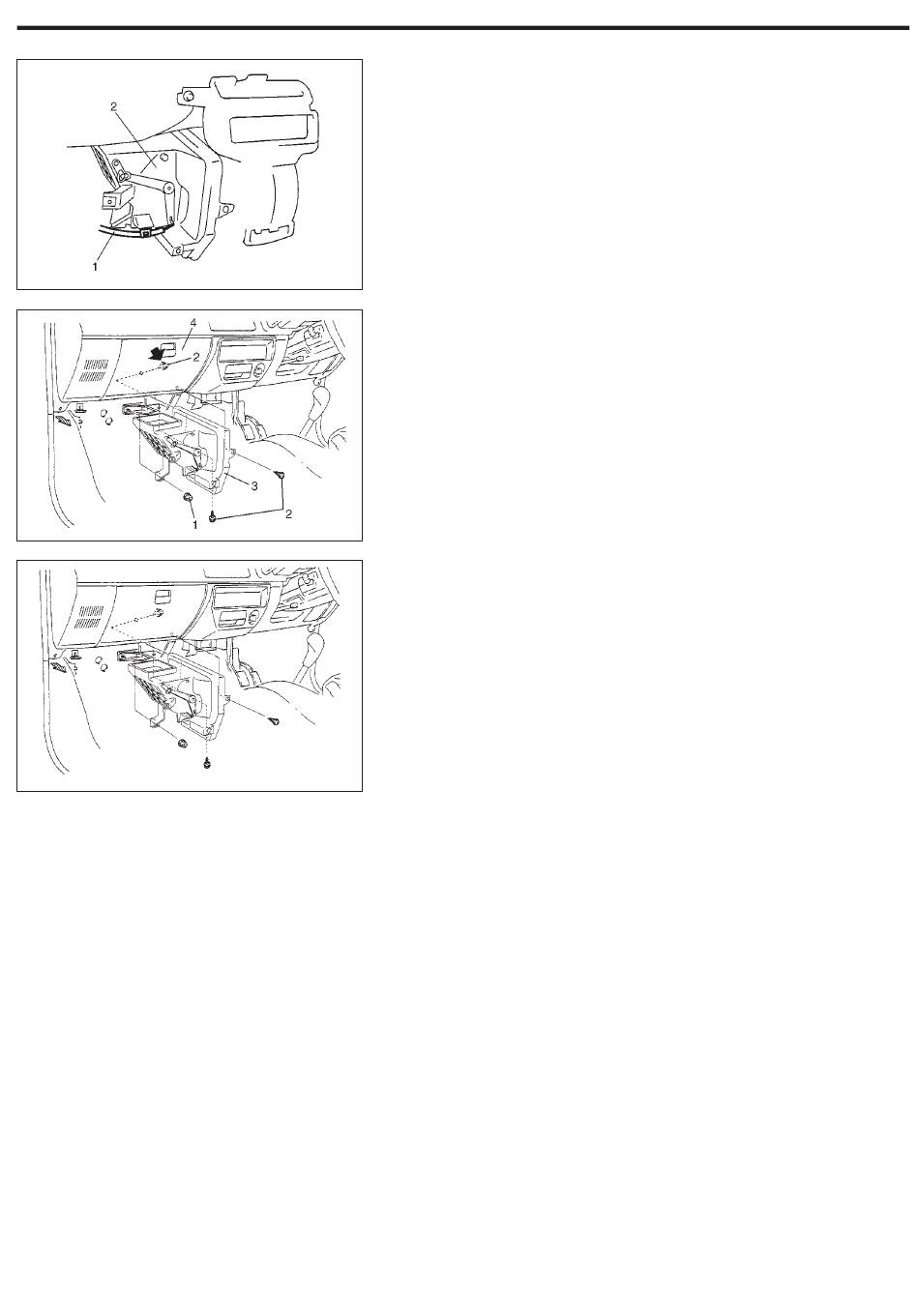

1) Remove fresh air control cable (1) from air inlet box (2).
2) Open glove box lid (4).
3) Loosen air inlet box mounting nut (1) and screws (2).
4) Remove air inlet box (3).
INSTALLATION
NOTE:
If vehicle is equipped with air conditioning, refer to COOLING
UNIT in Section 1B.
Reverse removal sequence to install air inlet box, noting the follow-
ing point.
D Adjust fresh air control cable, refer to HEATER CONTROL LE-
VER ASSEMBLY in this section.
