HEATER CONTROL LEVER ASSEMBLY

REMOVAL
1) Disconnect negative (–) cable at battery.
2) Disconnect each heater control cables (air outlet control (1),
temperature control (2) and fresh air control) from heater unit
and air inlet box or cooling unit (if equipped with A/C).
3) Disconnect heater control panel illumination coupler and A/C
switch coupler (if equipped).
4) Loosen steering column assembly, refer to "STEERING COL-
UMN" in section 3C.
5) Remove temperature control knob (1), air outlet control knob (2)
and blower fan motor switch knob (3).
6) Remove meter cluster (4) by removing its mounting screws.
HEATER AND VENTILATION 1A-9

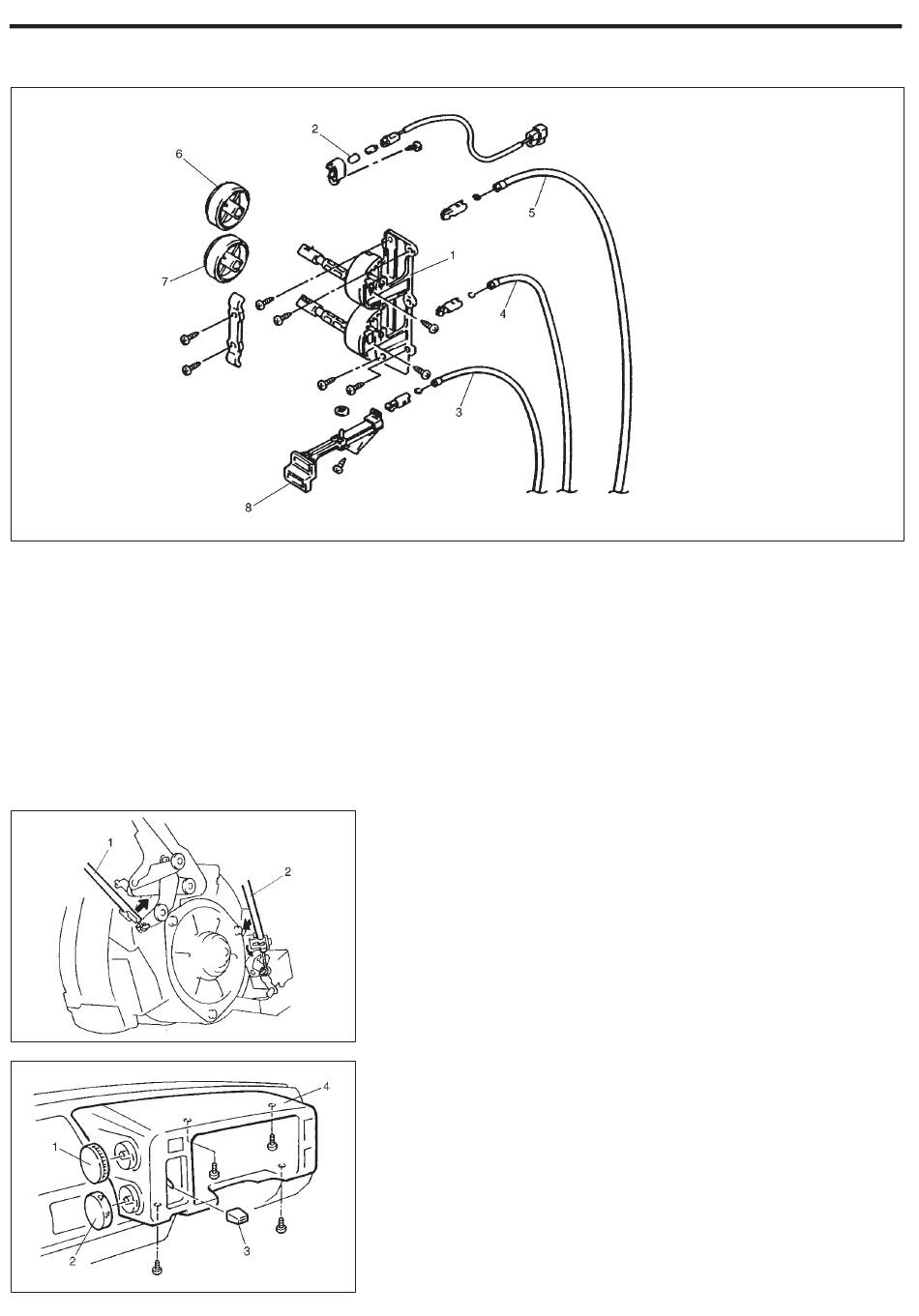

1. Heater control lever assembly
2. Bulb
3. Fresh air control cable
4. Air outlet control cable
5. Temperature control cable
6. Temperature control knob
7. Air outlet control knob
8. Fresh air control knob
