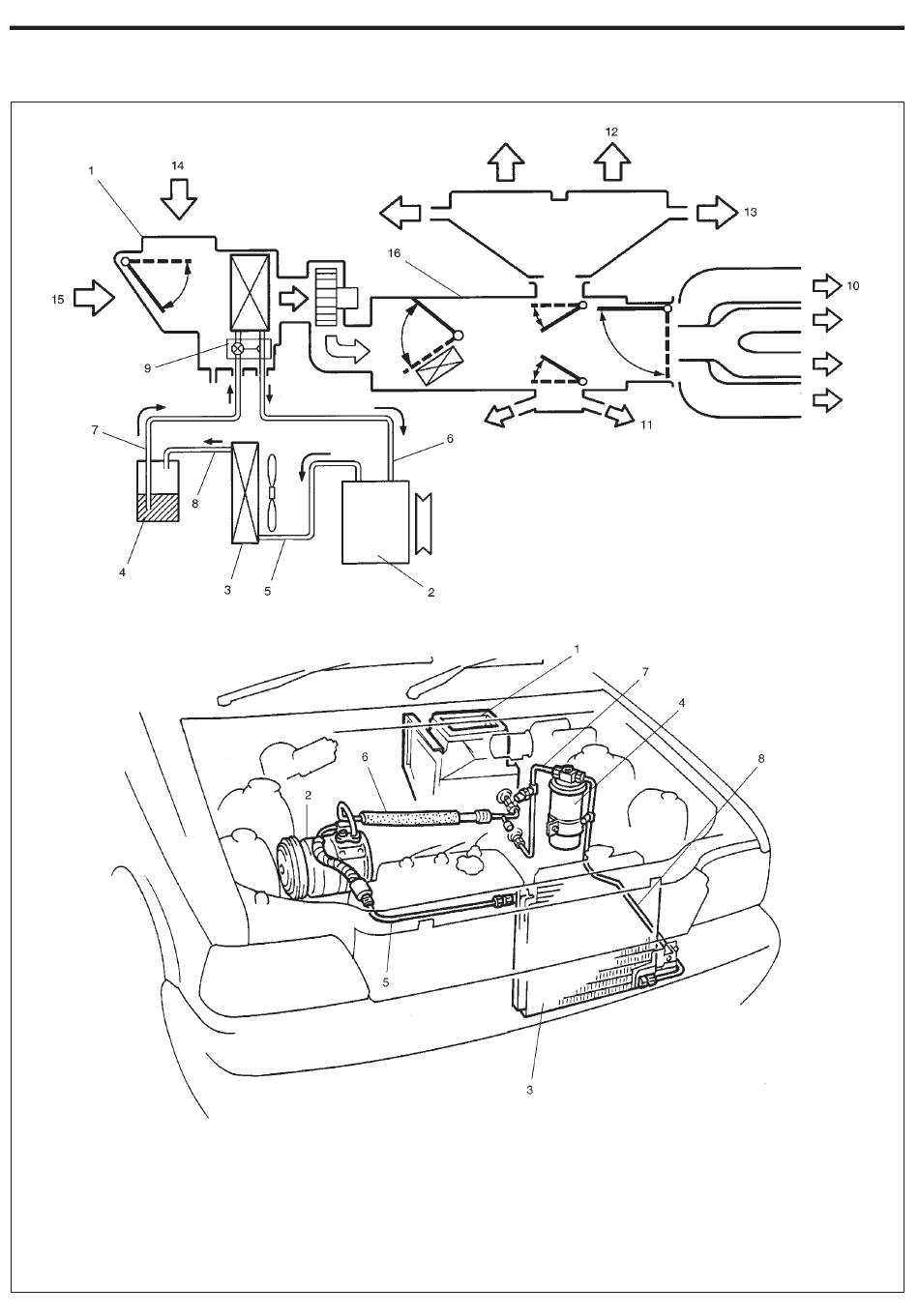

MAJOR COMPONENTS AND LOCATION

AIR CONDITIONING (OPTIONAL) 1B-3

1. Cooling unit

2. Compressor

3. Condenser assembly

4. Receiver/dryer

5. Discharge hose

6. Suction hose

7. Receiver/dryer outlet pipe

8. Condenser outlet pipe

9. Expansion valve

10. Ventilation air

11. Foot air

12. Defroster air

13. Demister air

14. Fresh air

15. Recirculation air

16. Heater unit
