Single Handle Kitchen Faucet with Sprayer
Model Number:
1.125"
16.31"
8.25"
2.18"
Features:
KTS14-TB
- Non-metallic water way
- Single or Three Hole Installation
KTS14-TC
- Drip Free Ceramic Cartridge
KTS14-TO
- Maximum flow rate 1.8 gpm at 60 psi
60004A
- 2 Stage Sprayer Head
- Complies with:
10.25"
1
NSF 61-9
ANSI / ASME A112.18.1
cUPC
IAPMO / UPC
CA AB-1953
3.375"
6.125"
2.625"
Max. Deck Thickness 1.25"
3/8" Compression Fitting

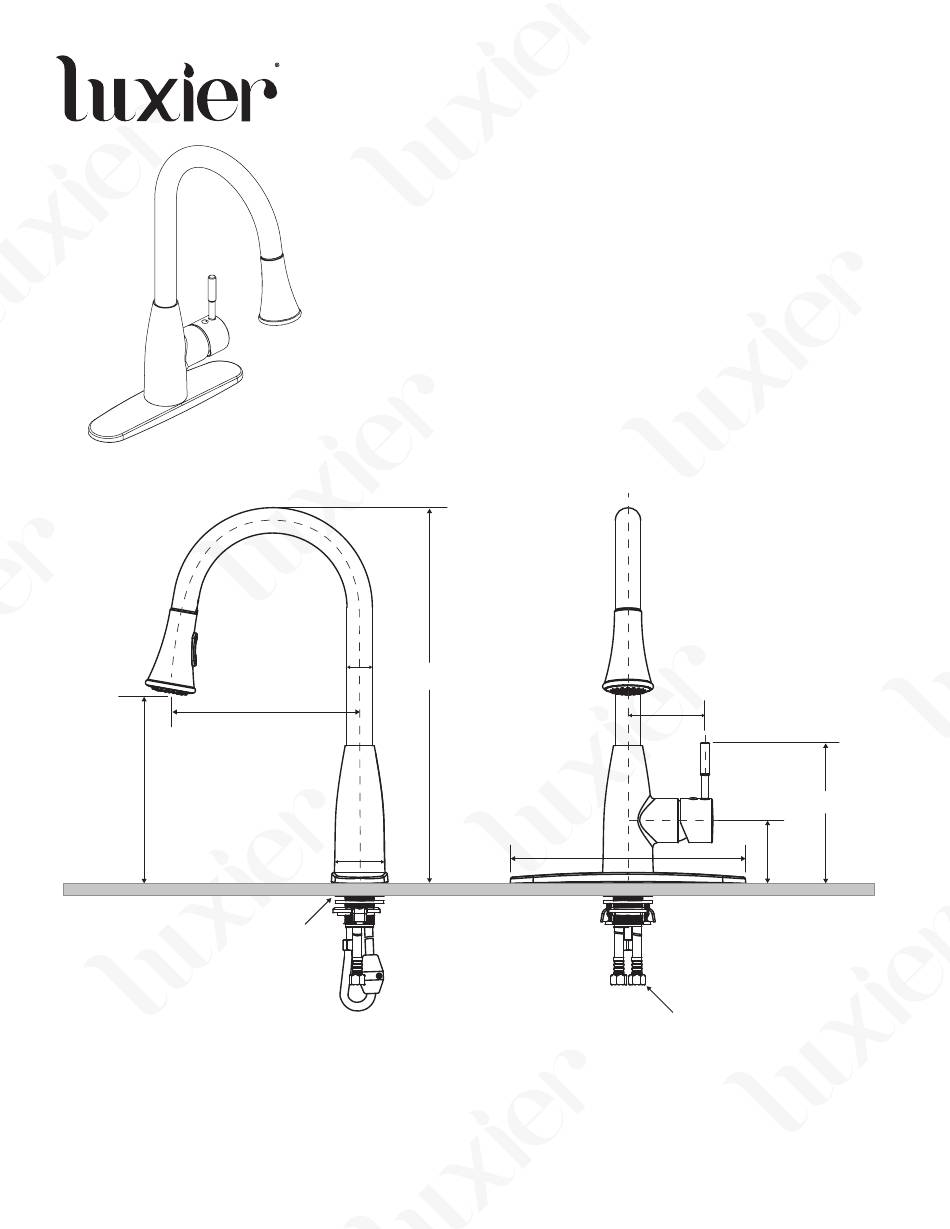

* Drawing Not To Scale
* All Measurements are Approximate
KTS14 Rev. B 04/2018
