Single Handle Kitchen Faucet with Pull Down Sprayer
Model Number:
8 1/2"
7 3/4"
2"
Hose Length Approx. 22 1/2"
Features:
KTS12-TB
- Brass and Zinc Alloy Construction
- Single Hole Installation
KTS12-TC
- Drip Free Ceramic Cartridge
KTS12-TO
- Maximum flow rate 1.8 gpm at 60 psi
- Pull Down 2 Stage Sprayer Head
- Complies with:
15 5/8"
Ø
1"
1 1/2" Hole
3/8" Compression Fitting

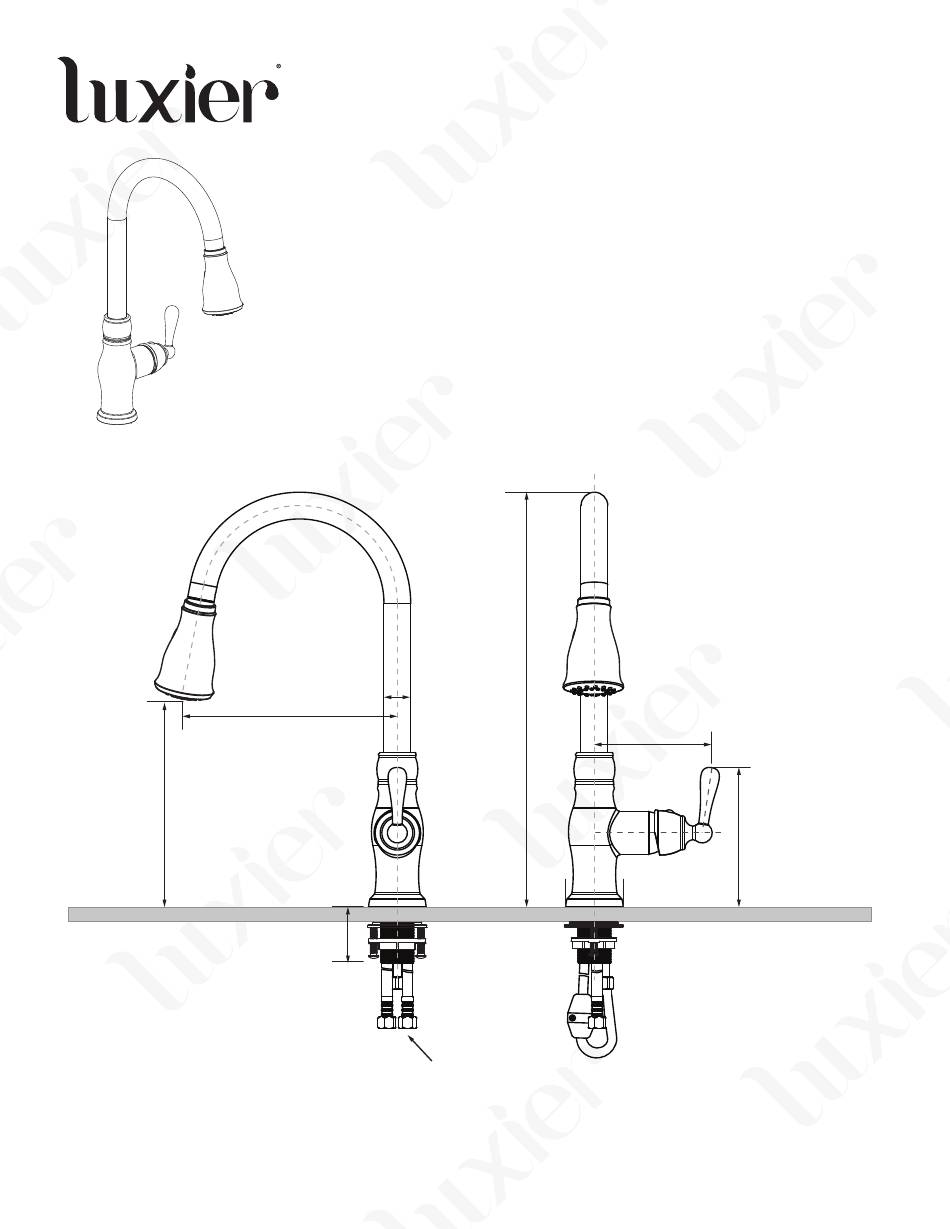

* Drawing not to scale. All Measurements are Approximate.
1
NSF 61-9
ANSI / ASME A112.18.1
cUPC
IAPMO / UPC
CA AB-1953
4 1/2"
5 1/4"
2.2"
Max. Deck Thickness 1 1/2"
Luxier Rev.2 05/2018
