- Page 1 Water Leakage Detection Sensor Installation Guide...

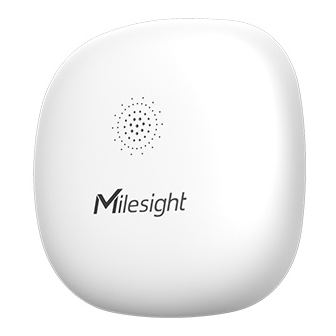

- Page 2 These are not suitable for detecting hazardous chemicals, solvents, oil, fuel, strong acids, or other corrosive liquids. If there is any requirement to detect corrosive liquid, please contact Milesight to customize the leakage sensor. Installation Guide WS303 There are two leak detection probes behind the device.
- Page 3 Fixed by 3M Tape: apply 3M tape to the back cover, then remove the protective backing and position it on the wall or floor near the detection area, ensuring that the two leak detection probes are facing the detection area. Placement Installation: place the device facing up and horizontally in the detection area.
- Page 4 If you need to expand the length, please contact Milesight to customize the cable length or purchase a sensing cable with connectors on both ends to...
- Page 5 Install the Sensing Cable 1. Select the installation location to detect the leakage. The sensing cable can be wrapped around pipes, routed along to walls or placed on the floors. Ensure that the surfaces of the installation location are clean and free of debris, dirt, adhesive residues, water droplets, and other contaminants.
- Page 6 clean the cable and hang it to dry. EM300-MLD The detection membrane has two sides: one side with black printed lines to detection water leakage, the other side with 3M tape to paste as required. When the water covers two black lines (soaking water length > 1.5 cm), the device will send leakage alarms. There is a protective film on the detection side and it needs to be removed before installation.
- Page 7 also cut it. 3. Put the membrane on the installation location, ensure the detection side touches the detection area or detection object, the membrane is placed flat without crimping. Usually the membrane can be placed under the electrical appliances (refrigerator, washing machine, etc.), while the EM300-MLD and connector can be fixed on the adjacent wall.
- Page 8 Note: do not rub off the black lines on the detection side, as this can reduce leakage detection sensitivity or even disable the leakage detection feature. ----END----...
