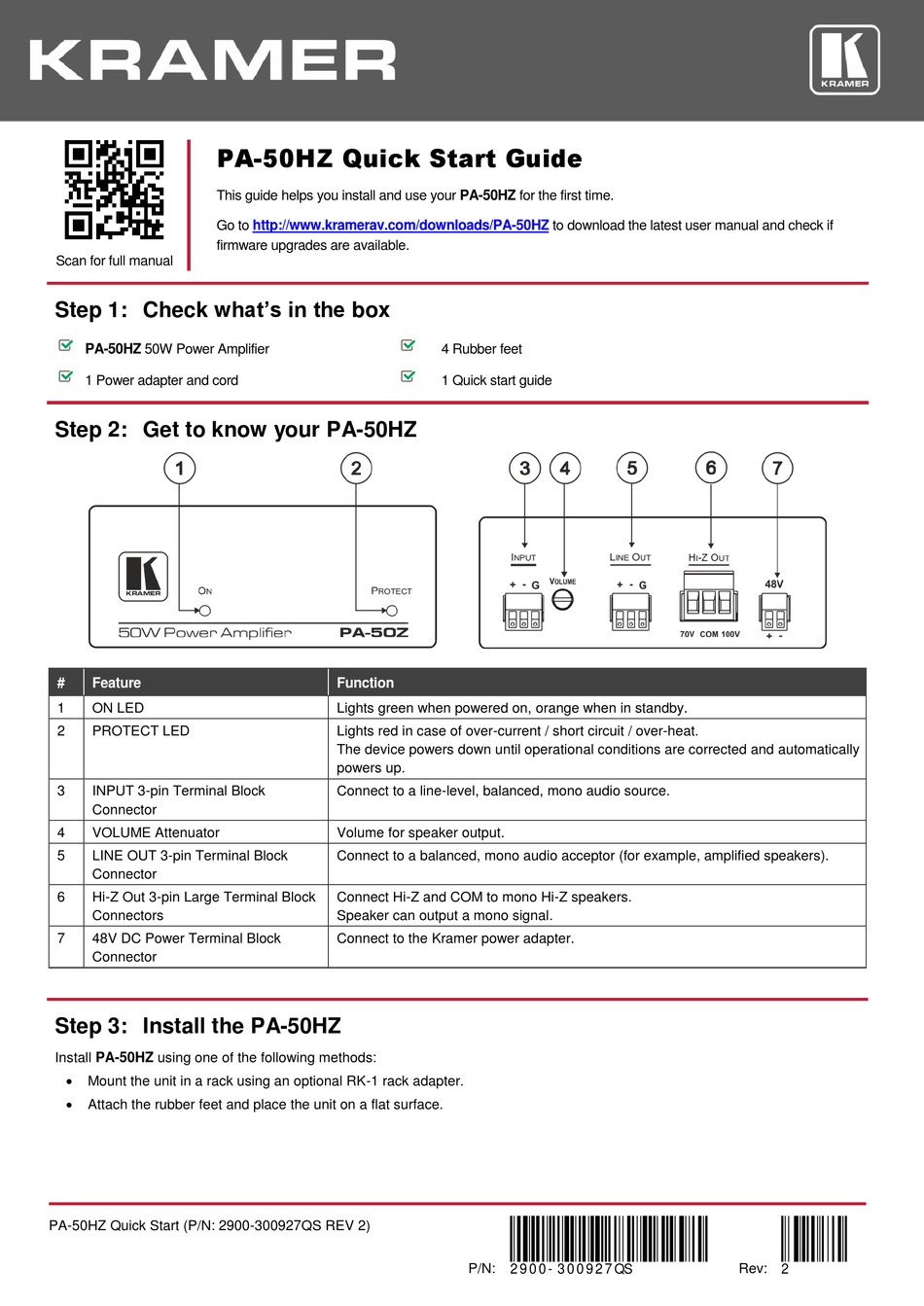

PA-50HZ Quick Start Guide
This guide helps you install and use your PA-50HZ for the first time.
Go to
firmware upgrades are available.
Scan for full manual
Step 1: Check what's in the box

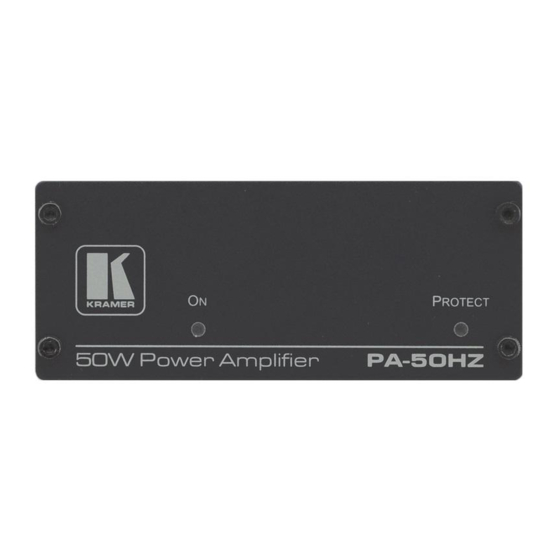

PA-50HZ 50W Power Amplifier
1 Power adapter and cord
Step 2: Get to know your PA-50HZ
# Feature
1 ON LED
2 PROTECT LED
3 INPUT 3-pin Terminal Block
Connector
4 VOLUME Attenuator
5 LINE OUT 3-pin Terminal Block
Connector
6 Hi-Z Out 3-pin Large Terminal Block
Connectors
7 48V DC Power Terminal Block
Connector
Step 3: Install the PA-50HZ
Install PA-50HZ using one of the following methods:

Mount the unit in a rack using an optional RK-1 rack adapter.

Attach the rubber feet and place the unit on a flat surface.
PA-50HZ Quick Start (P/N: 2900-300927QS REV 2)
http://www.kramerav.com/downloads/PA-50HZ
Function
Lights green when powered on, orange when in standby.
Lights red in case of over-current / short circuit / over-heat.
The device powers down until operational conditions are corrected and automatically
powers up.
Connect to a line-level, balanced, mono audio source.
Volume for speaker output.
Connect to a balanced, mono audio acceptor (for example, amplified speakers).
Connect Hi-Z and COM to mono Hi-Z speakers.
Speaker can output a mono signal.
Connect to the Kramer power adapter.
to download the latest user manual and check if
4 Rubber feet
1 Quick start guide
P/N:
2 9 0 0 - 3 0 0 9 2 7 QS
Rev: 2
