Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: PT-103V 1:3 Video DA P/N: 2900-000221 Rev 2... -
Page 3: Table Of Contents
Getting Started Achieving the Best Performance Safety Instructions Recycling Kramer Products Overview Defining the PT-103V 1:3 Video DA Connecting the PT-103V Technical Specifications Figures Figure 1: PT-103V 1:3 Video DA Figure 2: Connecting the PT-103V 1:3 Video DA PT-103V – Contents... -
Page 4: Introduction
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and GROUP 14: Collaboration. Congratulations on purchasing your Kramer PT-103V 1:3 Video DA, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer PT-103V away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview

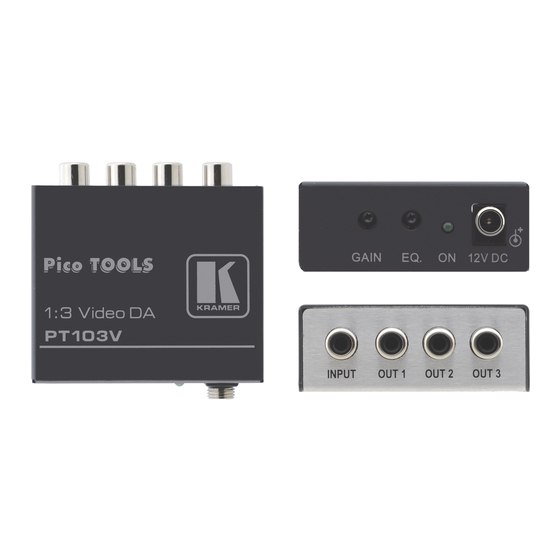

Overview Your Kramer Pico TOOLS PT-103V 1:3 Video DA is a micro-sized high- performance 1:3 distribution amplifier for composite video signals. The PT-103V: Accepts a single input and distributes it to three identical outputs using RCA connectors Has a bandwidth of more than 400MHz, ensuring that it remains transparent even in the most critical applications ... -
Page 8: Connecting The Pt-103V
Connecting the PT-103V Always switch off the power to each device before connecting it to your PT-103V. After connecting your PT-103V, connect its power and then switch on the power to each device. To connect the PT-103V as illustrated in the example in Figure 1. -
Page 9: Figure 2: Connecting The Pt-103V 1:3 Video Da
Figure 2: Connecting the PT-103V 1:3 Video DA PT-103V - Connecting the PT-103V... -
Page 10: Technical Specifications
10% to 90%, RHL non-condensing DIMENSIONS: 6.2cm x 5.2cm x 2.4cm (2.44" x 2.05" x 0.94") W, D, H WEIGHT: 0.14 kg (0.31 lbs.) approx. INCLUDED ACCESSORIES: Power supply, mounting bracket Specifications are subject to change without notice at http://www.kramerelectronics.com PT-103V - Technical Specifications... - Page 12 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
