Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Models: PT-102AN, 1:2 Audio DA PT-102SN, 1:2 s-Video DA... -
Page 2: Table Of Contents
Figure 5: Increasing the Inputs Figure 6: Increasing the Outputs Tables Table 1: Features and Functions of the PT-102AN 1:2 Audio DA Table 2: Features and Functions of the PT-102SN 1:2 s-Video DA Table 3: Technical Specifications of the PT-102AN / PT-102SN... -
Page 3: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... - Page 4 Getting Started KRAMER: SIMPLE CREATIVE TECHNOLOGY...
-
Page 5: Overview
Avoid interference from neighboring electrical appliances that may adversely influence signal quality and position your Kramer PT-102AN / PT-102SN machine away from moisture, excessive sunlight and dust 1 You can use the PT-102AN to distribute a balanced mono audio signal, via readily available adapter cables... -
Page 6: Your 1:2 Distribution Amplifier

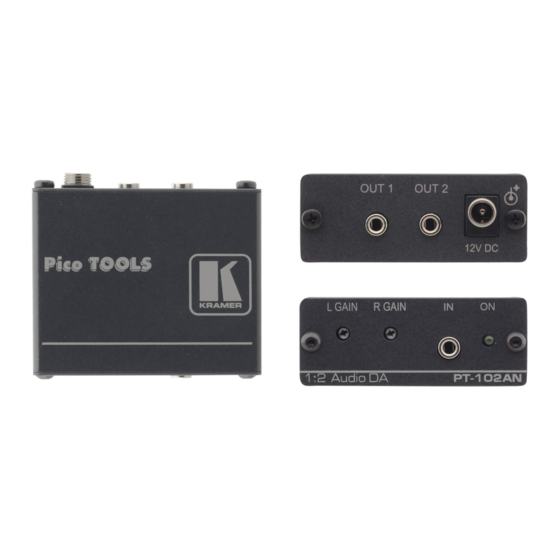

PT-102AN, see section 4.1 PT-102SN, see section 4.2 4.1 Your PT-102AN 1:2 Audio DA Figure 1 and Table 1 define the PT-102AN 1:2 Audio DA: Figure 1: PT-102AN 1:2 Audio DA Table 1: Features and Functions of the PT-102AN 1:2 Audio DA... -
Page 7: Your Pt-102Sn 1:2 S-Video Da
Illuminates when receiving power Connecting the 1:2 Distribution Amplifier This section describes how to connect: The PT-102AN, see section 5.1 The PT-102SN, see section 5.2 Additional inputs or outputs, see section 5.3 1 Insert a screwdriver into the hole and carefully rotate it, to trim the level... -
Page 8: Connecting The Pt-102An 1:2 Audio Da
4. Adjust the left and right gain level, if required. Figure 3: Connecting the PT-102AN 1:2 Audio DA 1 Switch OFF the power on each device before connecting it to your PT-102AN. After connecting your PT-102AN, switch on its power and then switch on the power on each device... -
Page 9: Connecting The Pt-102Sn 1:2 S-Video Da
Connecting the 1:2 Distribution Amplifier 5.2 Connecting the PT-102SN 1:2 s-Video DA To connect the PT-102SN 1:2 Audio DA, as the example in Figure 4 illustrates, connect the following 1. Connect an s-Video source to the IN 4-pin connector (for example, an s-Video player). -
Page 10: Increasing The Number Of Inputs/Outputs
You can cascade the unit with other high quality distribution amplifiers to distribute a source to more than two outputs (for example, connect each of the outputs of the PT-102AN to the input of the Kramer 105A 1:5 Stereo Audio Distribution Amplifier , to create a 1:10 DA, as illustrated in Figure 6). -
Page 11: Technical Specifications
Technical Specifications Technical Specifications Table 3 includes the technical specifications: Table 3: Technical Specifications of the PT-102AN / PT-102SN PT-102AN PT-102SN INPUTS: 1 unbalanced stereo audio on a 1 s-Video on a 4-pin connector 3.5mm mini plug connector OUTPUTS: 2 unbalanced stereo audio on 3.5mm... - Page 12 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
