KRAMER ELECTRONICS, Ltd. USER MANUAL Kramer Distribution Amplifiers PICO TOOL Models: PT102A PT102S PT102V IMPORTANT: Before proceeding, please read paragraph entitled "Unpacking and Contents"... -
Page 2: Table Of Contents
SPECIFICATIONS HOW DO I GET STARTED? UNPACKING AND CONTENTS Optional Accessories VIDEO/AUDIO DISTRIBUTION AMPLIFIERS Getting to Know Your PT102A Distribution Amplifier Getting to Know Your PT102S Distribution Amplifier Getting to Know Your PT102V Distribution Amplifier TYPICAL APPLICATIONS Typical Video Distribution... -
Page 3: Introduction
In addition to the Kramer line of high quality distribution amplifiers, such as the one you have just purchased, Kramer also offers a full line of high quality switchers, processors, interfaces, controllers and computer-related products. -
Page 4: Specifications
0.14 Kg (0.31 Lbs.) Approx 0.14 Kg (0.31 Lbs.) Approx 0.14 Kg (0.31 Lbs.) Approx. Weight Power Source 12VDC, 30mA, use current 12VDC, 30mA, use current 12VDC, 30mA, use current limited power supply. limited power supply. limited power supply. KRAMER ELECTRONICS LTD. -
Page 5: How Do I Get Started
UNPACKING AND CONTENTS The items contained in your Kramer distribution amplifier package are listed below. Please save the original box and packaging materials for possible future shipment. -
Page 6: Video/Audio Distribution Amplifiers

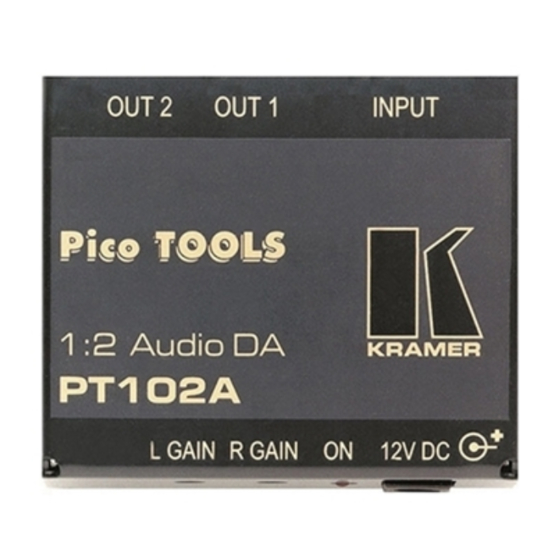

Getting to Know Your PT102A Distribution Amplifier The Kramer PT102A is a high performance 1:2 distribution amplifier for stereo audio signals. It accepts a single input and distributes it to two identical outputs using 3.5mm mini jacks. Separate left and right gain controls allow the user to optimize signal levels. -
Page 7: Getting To Know Your Pt102S Distribution Amplifier
Video bandwidth of 150MHz ensures that the PT102S remains transparent even in the most critical applications. It is the ideal companion to the PT102A audio Pico TOOL. A 12V power supply is included. The PT102S is part of the new Kramer Pico TOOLS family of products for applications requiring uncompromising quality and compact size at an affordable price. -
Page 8: Getting To Know Your Pt102V Distribution Amplifier
Getting to Know Your PT102V Distribution Amplifier The Kramer PT102V is a high performance 1:2 distribution amplifier for composite video signals. It accepts a single input and distributes it to two identical outputs using BNC connectors. Video bandwidth of 430MHz ensures that the PT102V remains transparent even in the most critical applications. -
Page 9: Typical Applications
Operate the source, acceptors and the PT102V. Use, only if necessary, the and EQ. trimmers to control the gain and cable Equalization of the video GAIN outputs (see section for more details). 11.2 Figure 4: Typical Video Distribution KRAMER ELECTRONICS LTD. -
Page 10: Increasing The Number Of Outputs
It is not recommended to cascade more than two machines. An example is set below how to get an additional output when cascading two PT102A. Perform the following steps: Connect an audio source to the INPUT connector of the first PT102A. -
Page 11: Connecting To Video Devices
Audio sources and output devices (such as amplifiers or recorders) may be connected to the PICO TOOLS through the 3.5mm mini phone type connectors (PT102A) located at the back of the machine. The signals supported are Stereo-Audio and Balanced Mono. -
Page 12: Taking Care Of Your Machine
If not, disconnect power from the machine and reconnect again to reset the machine. 2. If the following recommended actions still do not result in satisfactory operation, please consult your KRAMER Dealer. 11.1 Power and Indicators Problem... -
Page 13: Audio Signal
1. Confirm that the connecting cables are of high quality and properly built. Take special care in noting the wiring configuration of balanced to unbalanced cables. 2. Check level controls located on your source input device or output display or recorder. KRAMER ELECTRONICS LTD. -
Page 14: Limited Warranty
Any product which is not distributed by Kramer or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the web site www.kramerelectronics.com. - Page 15 EXCLUSION OF DAMAGES Kramer’s liability for any defective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 16 The list of Kramer distributors appears on our web site: www.kramerelectronics.com From the web site it is also possible to e-mail factory headquarters. We welcome your questions, comments and feedback. KRAMER ELECTRONICS LTD. 3 Am VeOlamo Street, Jerusalem 95463, Israel Tel: (972-2)-654-4000. Fax: (972-2)-653-5369...
