Kramer PA-50HZ Quick Start Manual

PA-50HZ Quick Start Guide
This guide helps you install and use your PA-50HZ for the first time.
Go to
firmware upgrades are available.
Scan for full manual
Step 1: Check what's in the box

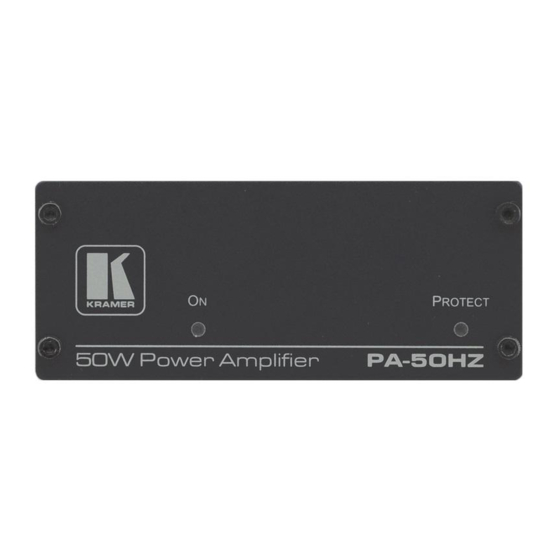

PA-50HZ 50W Power Amplifier
1 Power adapter and cord

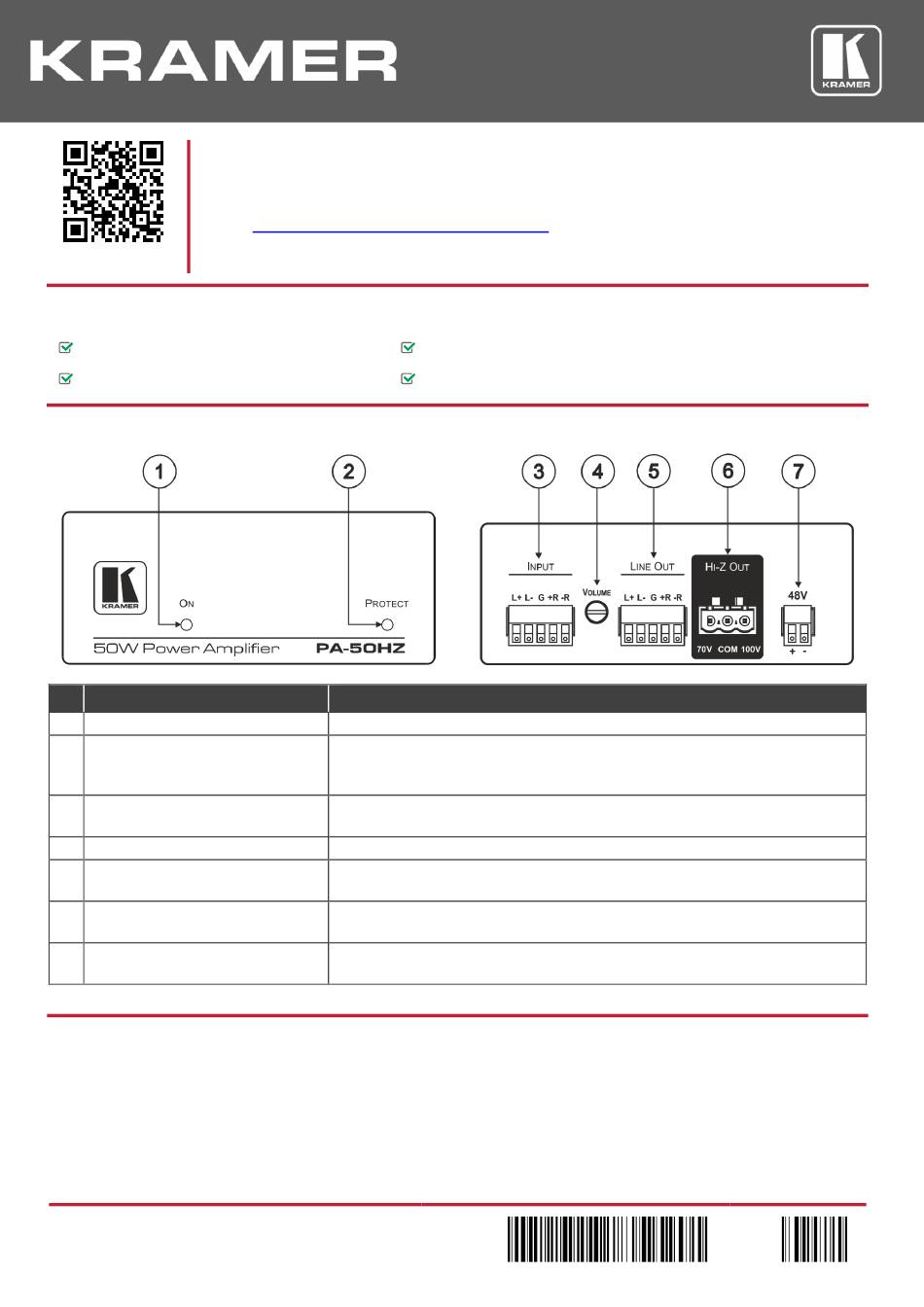

Step 2: Get to know your PA-50HZ
# Feature
1 ON LED
2 PROTECT LED
INPUT 5-pin Terminal Block
3
Connector
4 VOLUME Attenuator
5 LINE OUT 5-pin Terminal Block
Connector
Hi-Z Out 3-pin Large Terminal Block
6
Connectors
7 48V DC Power Terminal Block
Connector
Step 3: Install the PA-50HZ
Install PA-50HZ using one of the following methods:
•
Mount the unit in a rack using an optional RK-1 rack adapter.
•
Attach the rubber feet and place the unit on a flat surface.
PA-50HZ Quick Start (P/N: 2900-300973QS REV 3)
http://www.kramerav.com/downloads/PA-50HZ
Function
Lights green when powered on, orange when in standby.
Lights red in case of over-current / short circuit / over-heat.
The device powers down until operational conditions are corrected and automatically
powers up.
Connect to a line-level, balanced, stereo audio source.
Volume for speaker output.
Connect to a balanced, stereo audio acceptor (for example, amplified speakers).
Connect Hi-Z and COM to mono Hi-Z speakers.
Speaker can output a mono signal.
Connect to the Kramer power adapter.
to download the latest user manual and check if
4 Rubber feet
1 Quick start guide
P/N: 2 9 0 0 - 3 0 0 9 7 3 QS Rev: 3
