Installing the HP AdvanceStack 10Base-T Hubs

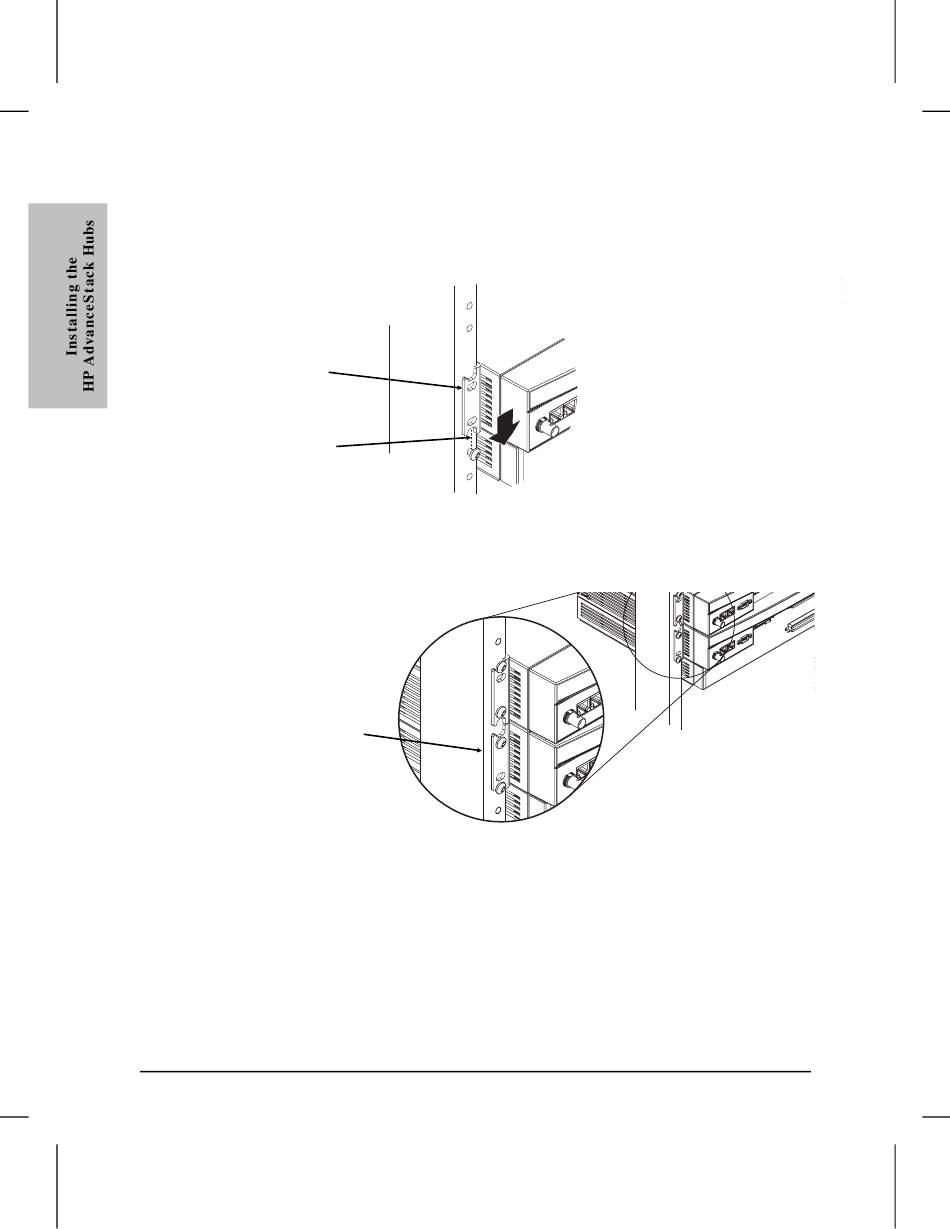

3. Place the hub in the rack and lower it so the notches in the bottom
of the bracket slide onto the two screws. Tighten these screws—be
careful not to overtighten.
Upper hole in the
bracket
Lower notch in the
bracket
4. Install the other two number 12-24 screws into the upper hole in
each bracket. Be careful not to overtighten these screws.
Install additional
screw
Continued on the next page.
