Albrecht CDS ANKLE BRACE User Instructions
Dynamic spring-loaded ankle orthosis
Hide thumbs
Also See for CDS ANKLE BRACE:
- User instructions (40 pages) ,
- User instructions (148 pages)
Subscribe to Our Youtube Channel
Related Manuals for Albrecht CDS ANKLE BRACE
Summary of Contents for Albrecht CDS ANKLE BRACE

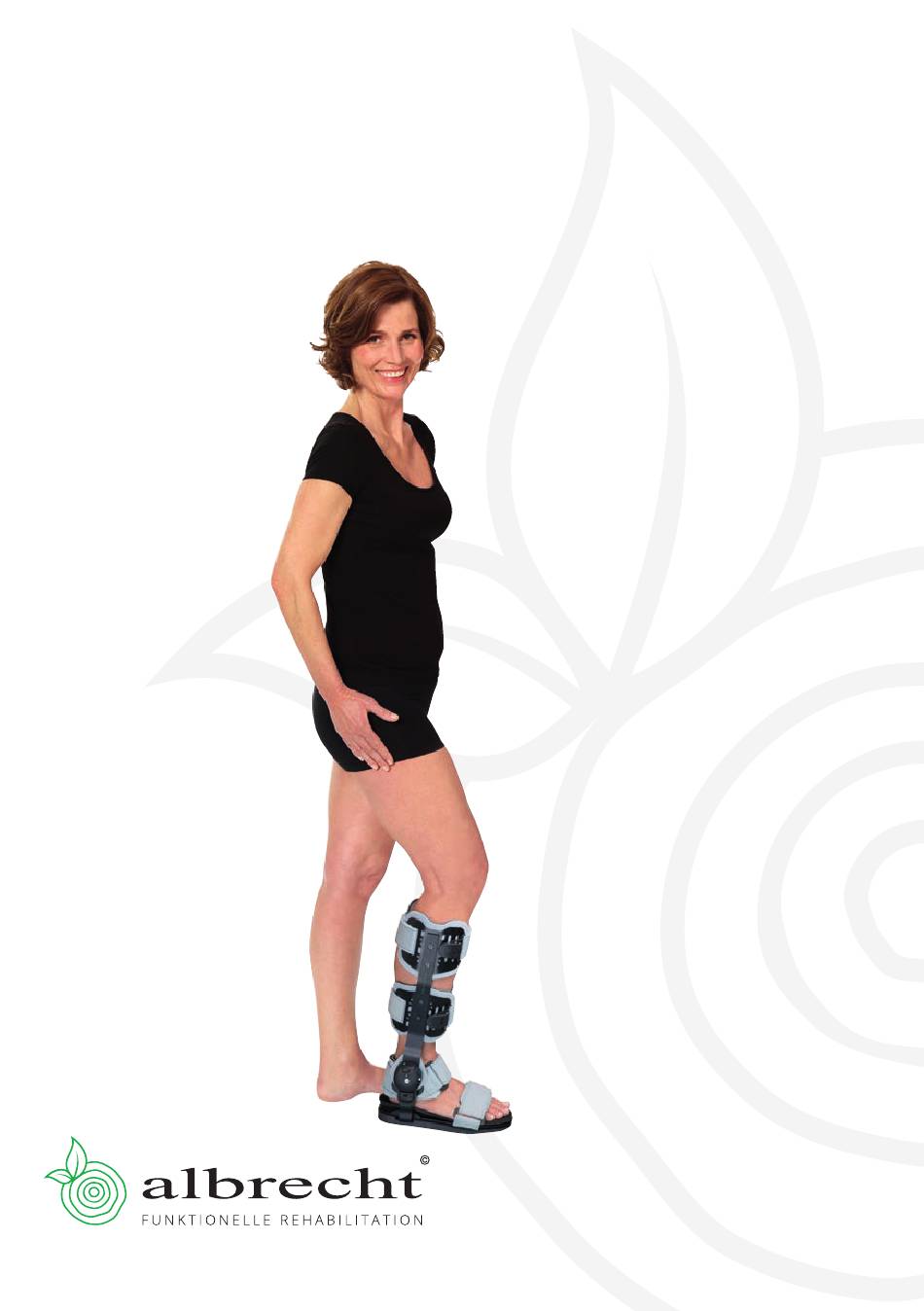

- Page 1 U S E R I N S T R U C T I O N S C D S A N K L E B R A C E ® D Y N A M I C S P R I N G - L O A D E D A N K L E O R T H O S I S...
-
Page 2: Table Of Contents
Ankle Brace ® User Instructions Contents 1. Introduction ....................1.1. Foreword ..................... 1.2. Customer information .................. 1.3. Mode of operation ..................1.4. Application ....................1.5. Scope of delivery ..................1.6. Declaration of conformity ................1.7. Features ....................... 1.8. Indications ....................1.9. - Page 3 User Instructions 2.3. Attaching of the brace by the orthopaedic technician ......... 2.3.1. Adjust strap lengths as necessary ............2.3.2. Final adjustment ................2.3.3. Optional attachment of the spacer ............ 2.3.4. Activate the spring tension ............... 2.3.5. Setting the spring tension to the intensity needed by the patient ..
-
Page 4: Introduction
Council Directive 93/42/EEC for medical information is not fully understandable, please devices. contact the appropriate specialist retailer or albrecht GmbH directly, before you use the brace. This particularly applies to the safety instructions. 1.3. Mode of operation Ankle Brace functions according ®... -
Page 5: Features
User Instructions 1.7. Features 1.8. Indications The physician will prescribe the type of • Therapy in dorsal extension treatment to apply based on his or her • Smaller hinge with diagnostic findings. established features: Generally, the use is indicated in: –... -
Page 6: Safety Instructions
Ankle Brace ® User Instructions • Currently there is no test for flammability. 1.10. Safety Instructions Exercise caution when using the orthosis in the direct vicinity of open flames such as The optimal effect of the brace is only lighters and cigarettes. achieved when used correctly. -
Page 7: Warranty
User Instructions 1.11. Warranty In addition to the legal warranty, we provide a 6-month durability guarantee for the orthosis. If properly used, this guarantees that the orthosis will function without fault. This excludes the padding and straps, which are usually liable to a certain amount of wear and tear. -
Page 8: Adjustment By The Orthopaedic Technician
Ankle Brace ® User Instructions 2. Adjustment by the orthopaedic technician 2.1. Fitting to the patient • Our CDS braces are constructed to be adjustable. ® • The position of the shell components can be changed and they can be shaped. •... -
Page 9: Adjusting The Brace By Using An Orthopaedic "Bending Iron
User Instructions 2.1.1. Adjusting the brace by using an orthopaedic “bending iron” The brace is anatomically contoured. However, if a different shape is required, the hinge rods can be adjusted to the shape of the patient’s leg with the aid of an orthopaedic bending iron. -
Page 10: Setting The Shell Components
Ankle Brace ® User Instructions 2.1.2. Setting the shell components The shell components are moveable. Loosen the screws on the shell components with the supplied tool without unscrewing them completely. Move the shell components into the desired position. Tighten the screws again. Please note that, because of its construction, the lower leg shell in the size S/XS and the children’s size consists of one shell component. -
Page 11: Adjusting The Distance Between The Hinge Rods
User Instructions 2.1.3. Adjusting the distance between the hinge rods You can change the distance of the hinge rods from the lateral edge of the sole. To do so, loosen the screws in the sole plate. Move the hinge rods singly. When the optimal position of both rods has been found, tighten the screws again. -
Page 12: Adjust The Hinge
Ankle Brace ® User Instructions 2.2. Adjust the hinge 2.2.1. Adjusting the position of the redression and limitation range Ankle Brace is constructed on the basis of a 360° hinge. In a 360° ® hinge, the spring housing and the lower leg rod can be pivoted against each other. - Page 13 User Instructions Remove the pad. Remove the two screws. You can adjust the position of the redression range in 15° steps. Use a goniometer to determine the desired position and adjust the hinge accordingly. Insert the screws again and tighten them. Insert the pad again.
-
Page 14: Setting The Limitation
Ankle Brace ® User Instructions 2.2.2. Setting the limitation The limitation restricts the range of motion. All steps must be executed identically with both hinges. Dorsal extension and the redression range are limited by the stop screw. In a second step, the set value can be reduced up to a maximum of 15°, enabling infinitely variable adjustment of the redression range. -
Page 15: Fine Adjustment
User Instructions 2.2.3. Fine adjustment Fine adjustment gives you the option of infinitely variable dorsal extension limitation. Set the fine adjustment to a value between 0 and -15. The setting reduces the limitation already set by the stop screw. All steps must be executed identically with both hinges. www.albrechtgmbh.com... -
Page 16: Attaching Of The Brace By The Orthopaedic Technician
Ankle Brace ® User Instructions 2.3. Attaching of the brace by the orthopaedic technician Before attaching the brace you must deactivate the spring tension. Turn the green switch on both hinges to „off”. Bring the brace as far into plantar flexion as the patient is allowed to move. Now,the activation mechanism of the hinge is set to this position and the patient can reactivate the spring tension in this position. - Page 17 User Instructions To make it easier to apply the brace to the patient, adjust the length of the lower leg straps to their maximum length without unthreading them. Open the instep and toe strap. Loosen the upper and lower shin strap by opening the clip fasteners. Attaching and adjusting the straps is easiest when sitting.
-
Page 18: Adjust Strap Lengths As Necessary
Ankle Brace ® User Instructions 2.3.1. Adjust strap lengths as necessary Adjust the strap to the desired length and shorten it if necessary containing the doublesided hook end. First fasten the heel strap. This prevents the foot from slipping dorsally. Adjust the length of the strap so that it sits snugly on the heel. -
Page 19: Final Adjustment
User Instructions 2.3.2. Final adjustment After fastening the individual straps, check that the straps are the correct length and that the brace is in the correct position, and correct if necessary. Ensure that the straps are not too tight so as not to interfere with the circulation. The shell elements are anatomically contoured. -
Page 20: Activate The Spring Tension
Ankle Brace ® User Instructions 2.3.4. Activate the spring tension To activate the spring tension, turn the green switches on both hinges to “on”. Bring the brace into plantar flexion until you feel a slight resistance that you have to overcome in order to activate the spring tension. -
Page 21: Setting The Spring Tension To The Intensity Needed By The Patient
User Instructions 2.3.5. Setting the spring tension to the intensity needed by the patient The spring tension setting is displayed on the CDS housing by a scale from ® 0 to 15. The ranges above 15 and below 0 are marked in red. To prevent damage to the CDS hinge, the red range in the CDS... -
Page 22: Changing The Spring Tension
Ankle Brace ® User Instructions Torque in Nm Settings 2.3.6. Changing the spring tension The spring tension can be adjusted according to the to treatment progress. Insert the tool as far as it will go into the side hole on the hinge. By turning clockwise or towards + the spring tension is increased and it is decreased by turning anticlockwise or towards -. -
Page 23: Handling By The Patient
User Instructions 3. Handling by the patient 3.1. Removing the brace Before removing the brace you must deactivate the spring tension. To do so, turn the green switches on both hinges to “off”. Bring the brace into plantar flexion. www.albrechtgmbh.com... - Page 24 Ankle Brace ® User Instructions First loosen the toe strap. Loosen the instep strap. Open the clips oft he upper and lower shinstraps and do not unthread the straps Step out ouf of the brace in front with the foot.
-
Page 25: Putting On The Brace
User Instructions 3.2. Putting on the brace Attaching and adjusting the straps is easiest when sitting. Step into the brace from in front with the foot. Fasten the instep strap. Fasten the toe strap. Then fasten the lower calf strap. Fasten the upper calf strap. -
Page 26: Cleaning, Maintenance And Disinfection
Ankle Brace ® User Instructions 4. Cleaning, maintenance and disinfection The orthosis is designed to be maintenance-free. 30° Hand Wash To ensure proper operation over the period of treatment the orthosis should be cleaned regularly (at least every 3 months) or as required, according to the following instructions. -
Page 27: Technical Data /Material
User Instructions 5. Technical data /material Name Material Weight 1264g / Child Brace 730g Padding material PU foam with PA hook and loop velour Strap material PA strap with PA hook and loop velour Brace material aluminium Sole EVA foam 6. -
Page 28: Transfer Of The Brace
Ankle Brace ® User Instructions 7. Transfer of the brace The brace is not intended for single use, but rather is intended for multiple use by a single person. We do not recommend transfer to other users. Should this be desired however, please ensure to pass on the care and cleaning instructions and have the brace checked by an authorized specialist dealer for safe and proper operation. - Page 29 User Instructions www.albrechtgmbh.com...
- Page 30 Ankle Brace ® User Instructions...
- Page 31 User Instructions www.albrechtgmbh.com...
- Page 32 P A T E N T S : E P 0 8 4 1 0 4 4 U S 5 , 9 5 4 , 6 7 7 E P 3 3 5 2 7 1 3 F U R T H E R P A T E N T S P E N D I N G V E R S I O N : E N 0 9 .
