Albrecht CDS ALIGNMENT SET User Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
U S E R I N S T R U C T I O N S
C D S
A L I G N M E N T S E T
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDS ALIGNMENT SET and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Albrecht CDS ALIGNMENT SET

Summary of Contents for Albrecht CDS ALIGNMENT SET

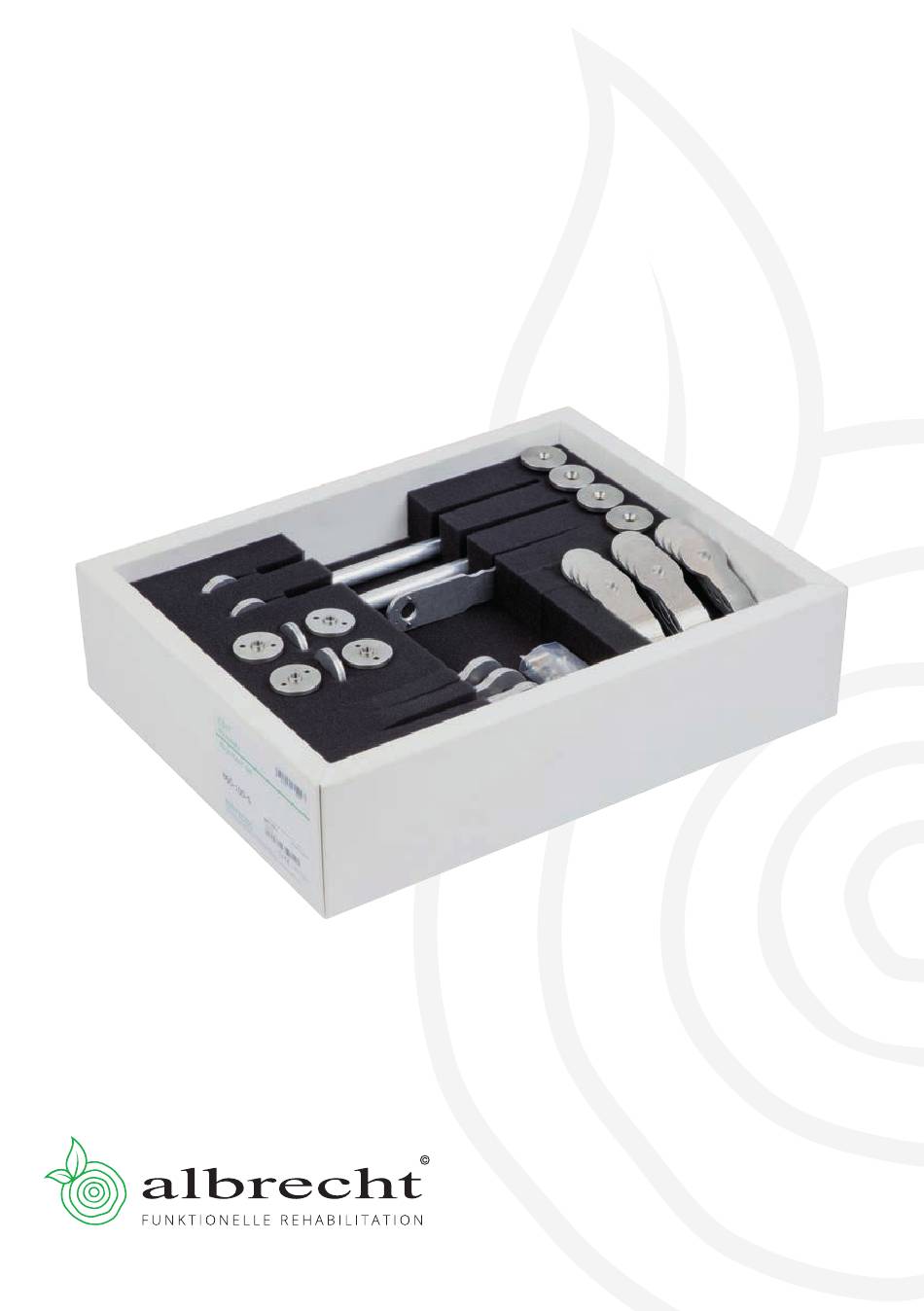

  • Page 1 U S E R I N S T R U C T I O N S C D S A L I G N M E N T S E T ®...

  • Page 2: Table Of Contents

    Alignment Set ® User Instructions Contents 1. Introduction ....................1.1. Foreword ..................... 1.2. Coustomer information ................1.3. Application ....................1.4. Declaration of conformity ................1.5. Safety instructions ..................1.6. Warranty ..................... 1.7. Scope of delivery ..................2. Assembly of the lamination tubes in the plaster model ....
  • Page 3 User Instructions 6. CDS Adapter-Hinge / ROM Nano Hinge ® ..........6.1. CDS Adapter-Hinge 90° plus ® ..............6.1.1. Assembly of the Alignment set for the Adapter-Hinge 90° plus ® ..............6.2. CDS Adapter-Hinge 360° plus ® ..............6.2.1. Disassembly and assembly of the lamination anchor ......

  • Page 4: Introduction

    In addition to the legal warranty, we provide contact the appropriate specialist retailer or a 6-month durability guarantee for the albrecht GmbH directly, before you use the orthosis. If properly used, this guarantees hinge. This particularly applies to the safety that the orthosis will function without fault.

  • Page 5: Scope Of Delivery

    User Instructions 4x centring pin 1.7. Scope of delivery Please check the Alignment Set ® completeness upon its receipt. • 4x double threaded pin • 4x lamination plate short (k): 88,5mm Width: 16mm, 20mm, 24mm / 3mm • 4x centring ring CDS ®...

  • Page 6: Assembly Of The Lamination Tubes In The Plaster Model

    Alignment Set ® User Instructions 2. Assembly of the lamination tubes in the plaster model Position the lamination tube in the plaster negative on the desired hinge axes. If needed, the lamination tube (set of spare parts for alignment set 860-180-S) can be re-ordered.

  • Page 7: Aligning The Hinge And Runners

    User Instructions 3. Aligning the hinge and runners To achieve perfect parallelism between the hinges and runners, these must be inserted into the lamination tube in the plaster positive for alignment with the mounted centring pin (on the hinge or alignment set). To align the hinge rods when using adapter hinges, these must be screwed with the spacers of the alignment set using the screwing strap.

  • Page 8: Assembly On The Plaster Model

    Alignment Set ® User Instructions 4. Assembly on the plaster model For a firm placement on the plaster positive, the centring pins must be fixed with the threaded rod. Please note that the threaded rod may be screwed at most 1cm deep into the centring pin.

  • Page 9: Cds ® Hinges (Rigid)

    User Instructions 5. CDS Hinges (rigid) ® 5.1. CDS Hinge 90° plus/ CDS Hinge 90° ® ® 5.1.1. Assembly of the centring pin on the CDS Hinge 90° plus / ® Hinge 90° ® Remove the central screw using the supplied tool (face spanner). Do not move the hinge without the screws in place.

  • Page 10: Cds ® Hinge 360° Plus / Cds ® Hinge 360

    Alignment Set ® User Instructions 5.2. CDS Hinge 360° plus / CDS Hinge 360° ® ® 5.2.1. Assembly of the centring pin on the CDS Hinge 360° plus / ® Hinge 360° ® Remove the central screw using the supplied tool (face spanner). Do not move the hinge without the screws in place.

  • Page 11: Cds ® Nano Hinge

    User Instructions 5.3. CDS Nano Hinge ® 5.3.1. Assembly of the centring pin on the CDS Nano Hinge ® Remove the central screw using the supplied tool (2.5mm Allen key). Do not move the hinge without the screws in place. Screw the double threaded pin into the centring pin.

  • Page 12: Cds ® Runner / Cds ® Nano Runner

    Alignment Set ® User Instructions 5.4. CDS Runner / CDS Nano Runner ® ® 5.4.1. Assembly of the CDS Runner / CDS Nano Runner in the ® ® alignment set Runner Nano Runner must be mounted directly. It must be ®...

  • Page 13: Adapter-Hinge / Rom Nano Hinge

    User Instructions 6. CDS Adapter-Hinge / ROM Nano Hinge ® 6.1. CDS Adapter-Hinge 90° plus ® 6.1.1. Assembly of the Alignment set for the Adapter-Hinge 90° plus ® The lamination plates (short and long) serve as placeholders for the ® Adapter-Hinge 90°...

  • Page 14: Cds Adapter-Hinge 360° Plus

    Alignment Set ® User Instructions 6.2. CDS Adapter-Hinge 360° plus ® 6.2.1. Disassembly and assembly of the lamination anchor Do not move Remove the central screw using the supplied tool (face spanner). the hinge without the screws in place. Using the supplied Allen key, loosen the Allen screws on the lamination anchor.

  • Page 15: Cds ® Adapter-Hinge 360° Plus

    User Instructions 6.2.2. Assembly of the Alignment set for the Adapter-Hinge 360° plus ® The (long) lamination plate and the lamination anchor serve as a place holder for the Adapter-Hinge 360° plus. Remove the lamination anchor from the ® hinge. The (long) lamination plate, the lamination anchor, the centring pin, the (2mm + 3mm) spacers and the retaining washer must be screwed as shown in the exploded diagram.

  • Page 16: Cds ® Adapter-Hinge 360

    Alignment Set ® User Instructions 6.3. CDS Adapter-Hinge 360° ® 6.3.1. Disassembly and assembly of the lamination anchor Do not move Remove the central screw using the supplied tool (face spanner). the hinge without the screws in place. Using the supplied Allen key, loosen the Allen screws on the lamination anchor.

  • Page 17: Assembly Of The Alignment Set For The Cds Adapter-Hinge 360

    User Instructions 6.3.2. Assembly of the Alignment set for the Adapter-Hinge 360° ® The (short) lamination plate and the lamination anchor serve as placeholders for the Adapter-Hinge 360°. Remove the lamination anchor from the ® hinge. The (short) lamination plate, the lamination anchor, the centring pin, the (3mm) spacers and the retaining washer must be screwed as shown in the exploded diagram.

  • Page 18: Cds ® Nano Adapter-Hinge

    Alignment Set ® User Instructions 6.4. CDS Nano Adapter-Hinge ® 6.4.1. Disassembly and assembly of the lamination anchor Do not Remove the central screw using the supplied tool (2.5mm Allen key). move the hinge without the screws in place. Screw the central screw with the hinge immediately after removing the lamination anchor.

  • Page 19: Assembly Of The Alignment Set For The Cds ® Nano Adapter-Hinge

    User Instructions 6.4.2. Assembly of the Alignment set for the Nano Adapter-Hinge ® The (short) lamination plate and the lamination anchor serve as placeholders for Nano Adapter-Hinge. Remove the lamination anchor from the hinge. ® The (short) lamination plate, the lamination anchor, the centring pin, the (1mm) spacer and the corresponding retaining washer must be screwed as shown in the exploded diagram.

  • Page 20: Rom Nano Adapter-Hinge

    Alignment Set ® User Instructions 6.5. ROM Nano Adapter-Hinge 6.5.1. Assembly of the Alignment set for the ROM Nano Adapter-Hinge The (short and long) 2mm Nano lamination plates serve as placeholders for the ROM Nano Adapter-Hinge. The (long and short) lamination plates, the centring pin and the corresponding retaining washer must be screwed as shown in the exploded diagram.

  • Page 21: Cds ® Adapter-Runner / Cds ® Nano Adapter-Runner

    User Instructions 6.6. CDS Adapter-Runner / CDS Nano Adapter-Runner ® ® 6.6.1. Assembly of the CDS Adapter-Runner / ® Nano Adapter-Runner of the Alignment Set ® Adapter-Runner / CDS Nano Adapter-Runner must be cast/mounted ® ® directly. It must be screwed with the centring pin and the retaining washer as shown in the exploded diagram.

  • Page 22: Technical Data Cds ® Alignment Set

    Alignment Set ® User Instructions 7. Technical data CDS Alignment Set ® Name Art.-Nr. Alignment Set 860-100-S ® Set of spare parts CDS ® Alignment Set 860-180-S 8. Transfer of the hinges The hinges are not intended for single use, but rather is intended for multiple use by a single person.
  • Page 23 User Instructions www.albrechtgmbh.com...
  • Page 24 V E R S I O N : E N 0 9 . 2 0 2 0 a l b r e c h t G m b H C H I E M S E E S T R A S S E 8 1 D - 8 3 2 3 3 B E R N A U A M C H I E M S E E / G E R M A N Y P H O N E + 4 9 ( 0 ) 8 0 5 1 9 6 1 2 9 - 0 F A X...
