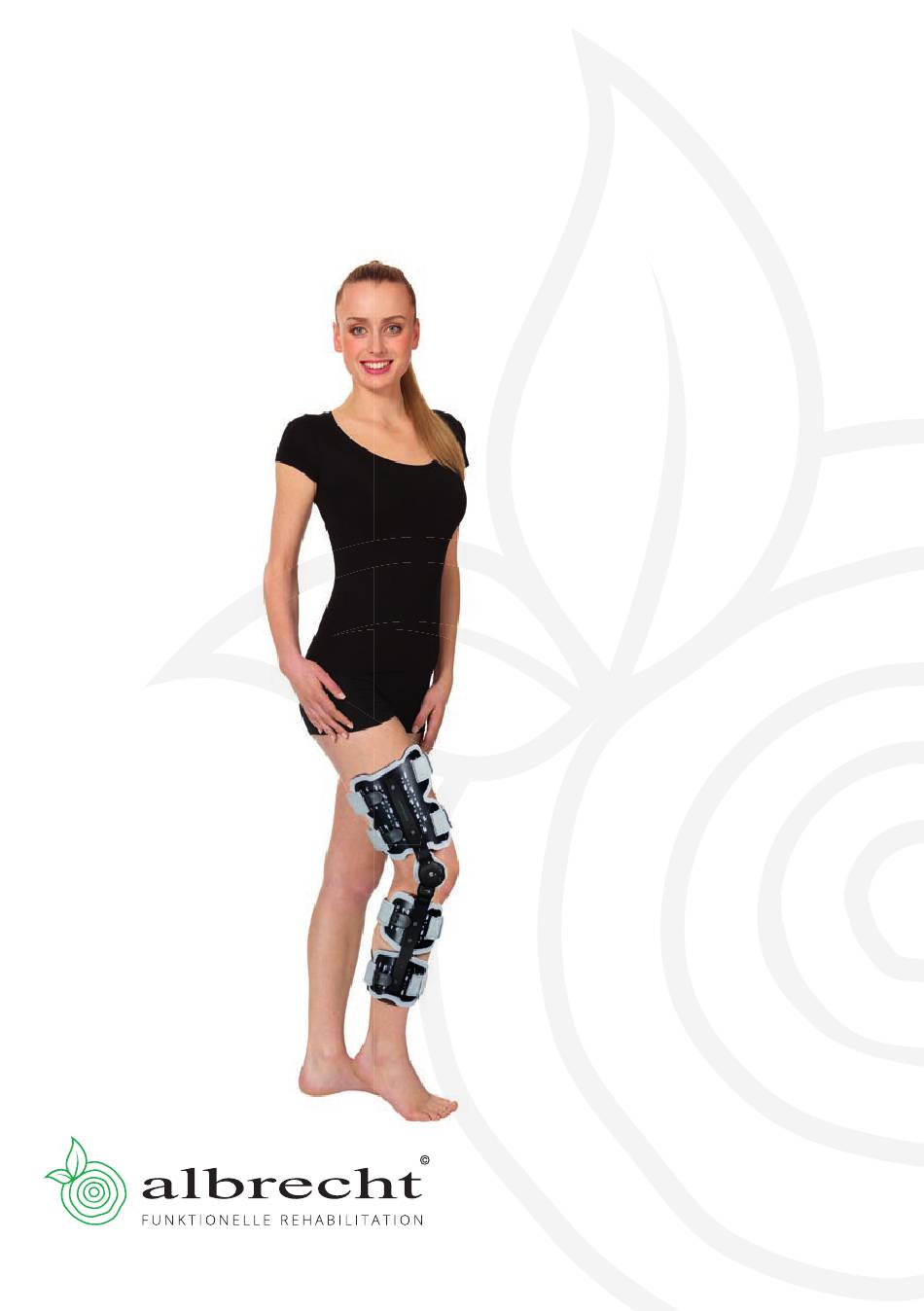

- Page 1 U S E R I N S T R U C T I O N S C D S K N E E B R A C E F L E X I O N ® D Y N A M I C S P R I N G - L O A D E D K N E E O R T H O S I S...
-
Page 2: Table Of Contents
Knee Brace Flexion ® User Instructions Contents 1. Introduction ....................1.1. Foreword ..................... 1.2. Customer information .................. 1.3. Mode of operation ..................1.4. Application ....................1.5. Scope of delivery ..................1.6. Declaration of conformity ................1.7. Features ....................... 1.8. Indications .................... - Page 3 User Instructions 2.3. Attaching of the brace by the orthopaedic technician ......... 2.3.1. Deactivate the spring tension ............2.3.2. Attach the brace to the leg ..............2.3.3. Adjust strap lengths as necessary ............. 2.3.4. Final adjustment ................2.3.5. Activate the spring tension ..............
-
Page 4: Introduction
European Council Directive 93/42/EEC for information is not fully understandable, please medical devices. contact the appropriate specialist retailer or albrecht GmbH directly, before you use the brace. This particularly applies to the safety instructions. 1.3. Mode of operation Knee Brace Flexion functions ®... -
Page 5: Features
User Instructions 1.7. Features 1.8. Indications • Therapy in flexion The physician will prescribe the type of treatment to apply based on his or her • Individual adjustment of the spring tension diagnostic findings. • Spring tension can be switched on and off Generally, the use is indicated in: without tools and without varying the set spring tension... -
Page 6: Contraindications
Knee Brace Flexion ® User Instructions • The product as delivered is not sterile. 1.9. Contraindications • Contact your physician immediately in the • Bony obstruction, osteoporosis, event of an allergic reaction. thrombophlebitis • Please note that cushioned sections can heat The brace is intended exclusively for contact up under direct sunlight. -
Page 7: Warranty
User Instructions 1.11. Warranty In addition to the legal warranty, we provide a 6-month durability guarantee for the orthosis. If properly used, this guarantees that the orthosis will function without fault. This excludes the padding and straps, which are usually liable to a certain amount of wear and tear. -
Page 8: Adjustment By The Orthopaedic Technician
Knee Brace Flexion ® User Instructions 2. Adjustment by the orthopaedic technician 2.1. Fitting to the patient • Our CDS braces are constructed to be adjustable. ® • The position of the shell components can be changed and they can be shaped. •... -
Page 9: Setting The Shell Components
User Instructions 2.1.2. Setting the shell components The shell components are moveable. Loosen the screws on the shell components with the supplied tool without unscrewing them completly. Move the shell components into the desired position. Tighten the screws again. Please note that, because of its construction, the lower leg shell in sizes S/S, XS/XS, XXS and children‘s sizes consists of one shell component. -
Page 10: Setting The Hinge
Knee Brace Flexion ® User Instructions 2.2. Setting the hinge 2.2.1. Adjusting the position of the redression and limitation range for CDS Knee Braces Flexion L/L, M/M, S/S and Junior ® Knee Braces Flexion L/L, M/M, S/S and Junior are constructed on the basis of the 360° ®... -
Page 11: Adjusting The Position Of The Redression And Limitation Range For Cds ® Knee Braces Flexion Xs/Xs, Xxs, Bambini And Malinki
User Instructions 2.2.2. Adjusting the position of the redression and limitation range for CDS ® Knee Braces Flexion XS/XS, XXS, Bambini and Malinki Knee Braces Flexion XS/XS, XXS, You can adjust the position of the redression ® Bambini and Malinki are constructed on the range in 10°... -
Page 12: Setting The Limitation For Cds ® Knee Braces Flexion L/L, L/M, M/L, S/S And Junior
Knee Brace Flexion ® User Instructions 2.2.3. Setting the limitation for CDS Knee Braces Flexion ® L/L, L/M, M/L, S/S and Junior The limitation restricts the range of motion. All steps must be executed identically with both hinges. Flexion and the redression range are limited by the stop screw. In a second step, the set value can be reduced up to a maximum of 15°, enabling infinitly variable adjustment of the redression range. -
Page 13: Fine Adjustmentfor Cds ® Knee Braces Flexion L/L, L/M, M/L, S/S And Junior
User Instructions 2.2.4. Fine adjustmentfor CDS Knee Braces Flexion ® L/L, L/M, M/L, S/S and Junior Fine adjustment gives you the option of infinitely variable flexion limitation. Set the fine adjustment to a value between 0 and -15. The setting reduces the limitation already set by the stop screw. -
Page 14: Inserting The Stop Wedge For Cds ® Knee Braces Flexion L/L, L/M, M/L, S/S And Junior
Knee Brace Flexion ® User Instructions 2.2.5. Inserting the stop wedge for CDS Knee Braces Flexion ® L/L, L/M, M/L, S/S and Junior Flexion can be limited with the stop wedge. All steps must be executed identically with both hinges. Before adjusting the extension limitation you must activate the spring tension. -
Page 15: Attaching Of The Brace By The Orthopaedic Technician
User Instructions 2.3. Attaching of the brace by the orthopaedic technician 2.3.1. Deactivate the spring tension Before attaching the brace you must deactivate the spring tension. Turn the switches on both hinges to “off”. Bring the brace as far into extension as the patient is allowed to move. Now, the activation mechanism of the hinge is set to this the position and the patient can reactivate the spring tension in this postion. -
Page 16: Attach The Brace To The Leg
Knee Brace Flexion ® User Instructions 2.3.2. Attach the brace to the leg The patient bends the leg to an angle of about 30° to 45°. Now attach the brace to the patient’s leg from in front. Ensure that the pivots of the brace hinges match the physiological pivots of the knee. -
Page 17: Adjust Strap Lengths As Necessary
User Instructions 2.3.3. Adjust strap lengths as necessary Adjust the straps to the desired length and shorten them if necessary on the strap end containing the doublesided hook end. First fasten the upper calf strap. Then fasten the upper shin strap. Fasten the upper posterior thigh strap next to the knee. -
Page 18: Final Adjustment
Knee Brace Flexion ® User Instructions Fasten the lower calf strap. Fasten the lower shin strap. If necesssary, the additional strap padding supplied with the product can be attached under the straps. 2.3.4. Final adjustment After fastening the individual straps, check that the straps are the correct length and that the brace is in the correct position, and correct if necessary. -
Page 19: Activate The Spring Tension
User Instructions 2.3.5. Activate the spring tension To activate the spring tension, turn the switches on both hinges to “on”. Bring the brace into extension until you feel a slight resistance that you have to overcome in order to activate the spring tension. The intensity of the spring tension is not altered by activation or deactivation of the spring tension. -
Page 20: Setting The Spring Tension To The Intensity Needed By The Patient
Knee Brace Flexion ® User Instructions 2.3.6. Setting the spring tension to the intensity needed by the patient The spring tension setting is displayed on the CDS housing by a scale from 0 ® to 15. The ranges above 15 and below 0 are marked in red. To prevent damage to the CDS hinge, the red range in the CDS hinge... -
Page 21: Changing The Spring Tension
User Instructions Torque in Nm ® hinge Nano hinge ® Settings hinge is used for the sizes L/L, L/M, M/L, and Junior. ® Nano hinge is used for the XS/XS, XXS, Bambini and Malinki. ® 2.3.7. Changing the spring tension The spring tension can be adjusted according to the to treatment progress. -
Page 22: Handling By The Patient
Knee Brace Flexion ® User Instructions 3. Handling by the patient 3.1. Removing the brace Before removing the brace you must deactivate the spring tension. To do so, turn the switches on both hinges to “off”. Bring the brace into extension. - Page 23 User Instructions 3 - 6 To remove the brace, only open the clips and do not unthread the straps. For XS/XS, XXS, Bambini and Malinki, you must open and close the straps in order to attach and remove the brace. Take off the brace.
-
Page 24: Putting On The Brace
Knee Brace Flexion ® User Instructions 3.2. Putting on the brace Place the brace on your leg from above. For XS/XS, XXS, Bambini and Malinki, you must open and close the straps in order to attach and remove the brace. First fasten the upper calf strap. -
Page 25: Cleaning, Maintenance And Disinfection
User Instructions 4. Cleaning, maintenance and disinfection The orthosis is designed to be maintenance-free. To ensure proper operation over the period of treatment the orthosis should be cleaned regularly (at least every 3 months) or as required, according to the following instructions. Hand wash at 30°C 4.1. -
Page 26: Technical Data
Knee Brace Flexion ® User Instructions 5. Technical data Name Material Weight 1080g Padding material PU foam with PA hook and loop velour Strap material PA strap with PA hook and loop velour Brace material aluminium 6. Size chart and article numbers Length of thigh Length of Circumference... -
Page 27: Transfer Of The Brace
User Instructions 7. Transfer of the brace The brace is not intended for single use, but rather is intended for multiple use by a single person. We do not recommend transfer to other users. Should this be desired however, please ensure to pass on the care and cleaning instructions and have the brace checked by an authorized specialist dealer for safe and proper operation. - Page 28 P A T E N T S : E P 0 8 4 1 0 4 4 U S 5 , 9 5 4 , 6 7 7 E P 3 3 5 2 7 1 3 F U R T H E R P A T E N T S P E N D I N G V E R S I O N : E N 0 9 .
