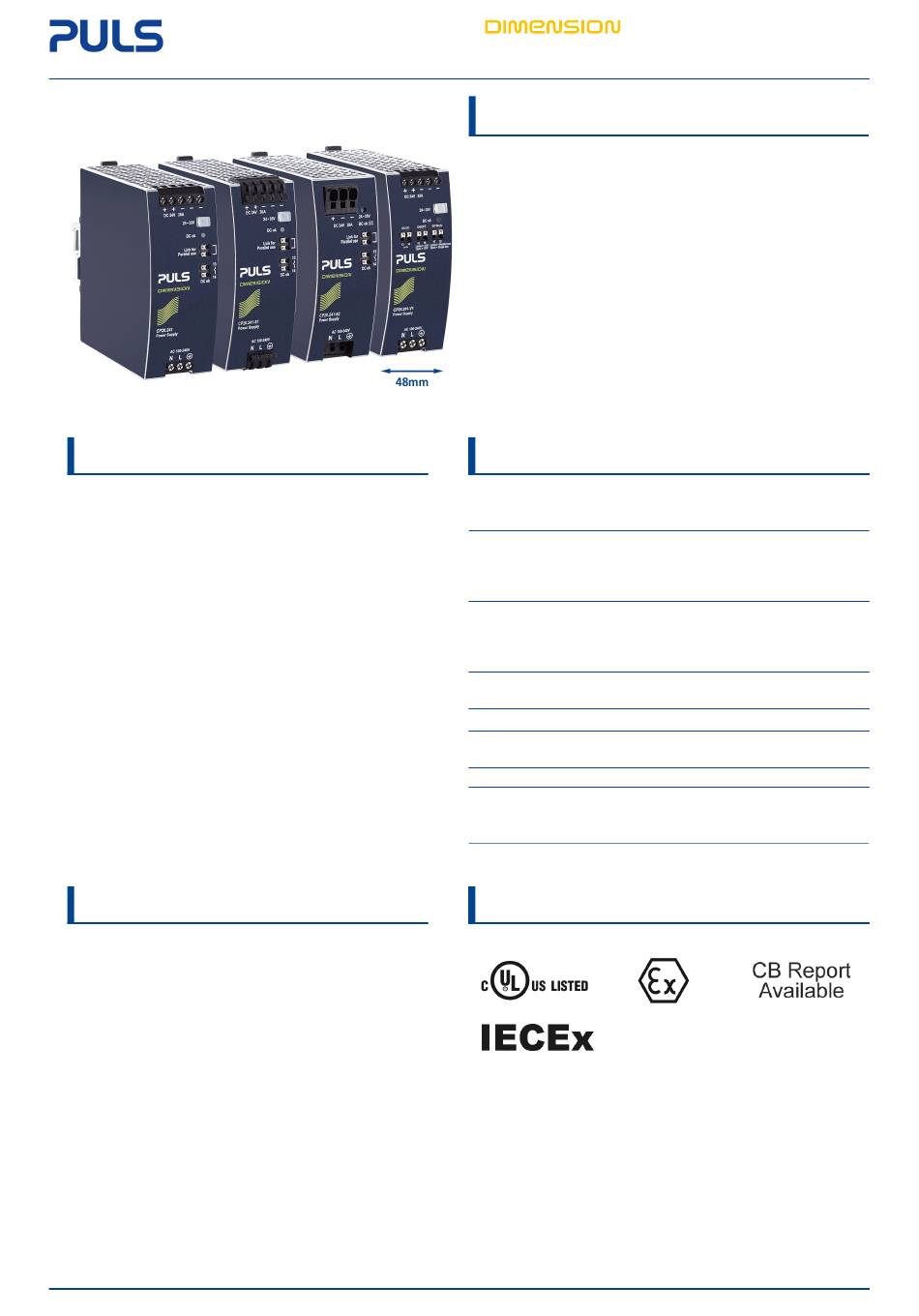

CP20.241 CP20.241-C1 CP20.241-S1 CP20.241-S2
P
RODUCT DESCRIPTION
The Dimension CP-Series are cost optimized power
supplies without compromising quality, reliability
and performance. The most outstanding features of
the CP20 series are the high efficiency, electronic
inrush current limitation, active PFC, wide operational
temperature range and the extraordinary small size.
The CP20.241-C1 is equipped with conformal coated
pc-boards preferred for applications in harsh areas.
The CP20.241-S1 is equipped with quick-connect
spring-clamp terminals preferred for applications
which are exposed to mechanical vibration. The
CP20.241-S2 has push-in terminals optimized for easy
cabinet wiring.
The CP20.241-V1 is equipped with a remote ON/OFF
feature.
The devices have a power reserve of 20% included,
which may even be used continuously up to +45°C.
High immunity to transients and power surges as
well as low electromagnetic emission, a DC-OK relay
contact and a large international approval package
make this unit suitable for nearly every situation.
O
RDER NUMBERS
Description:
Power supply CP20.241-xx
Order Number:
CP20.241
CP20.241-C1
Conformal coated pc-boards
CP20.241-S1
Quick-connect spring-clamp
terminals
CP20.241-S2
Push-in terminals
CP20.241-V1
Remote ON/OFF feature
Accessories:
ZM10.WALL
Wall/Panel mount bracket
All parameters are specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
Apr. 2021 / Rev. 2.0 DS-CP20.241-xx-EN
P
OWER SUPPLY
• AC 100-240V Wide-range input
• Width only 48mm
• Efficiency up to 95.6%
• Excellent partial load efficiency
• 20% Output power reserves
• Easy fuse breaking - 3 times nominal current for 12ms
• Safe Hiccup
PLUS
overload mode
• Active power factor correction (PFC)
• Minimal inrush current surge
• Full power between -25°C and +60°C
• DC-OK relay contact
• Current sharing feature for parallel use
• 3 year warranty
S
HORT-FORM DATA
Output voltage
Adjustment range 24-28Vdc
Output current
Input voltage AC
Mains frequency
Input current AC
Power factor
Input voltage DC
Input current DC
AC Inrush current
Efficiency
Power losses
Hold-up time
Temperature range -25°C to +70°C
Size (w x h x d)
Weight
M
AIN APPROVALS
For details or a complete approval list, see chapter 21.
www.pulspower.com
CP20.241
CP20.241-C1
CP20.241-S1
1AC 24V 480W
DC 24V
Nominal
Factory setting 24.1V
24-20.6A
Below +45°C ambient
20-17.1A
At +60°C ambient
15-13A
At +70°C ambient
Derate between +45°C and +70°C
±10%
AC 100-240V
±6%
50-60Hz
4.26 / 2.23A
At 120 / 230Vac
0.996 / 0.98
At 120 / 230Vac
DC 110-150V
±20%
4.64A
At 110Vdc
10 / 4.5A
At 120 / 230Vac
peak
94.2 / 95.6%
At 120 / 230Vac
29.6 / 22.1W
At 120 / 230Vac
32 / 32ms
At 120 / 230Vac
48x124x127mm Without DIN rail
830g / 1.83lb
CP20.241-S2
CP20.241-V1
1 / 33
