Summary of Contents for Omega BB-2A

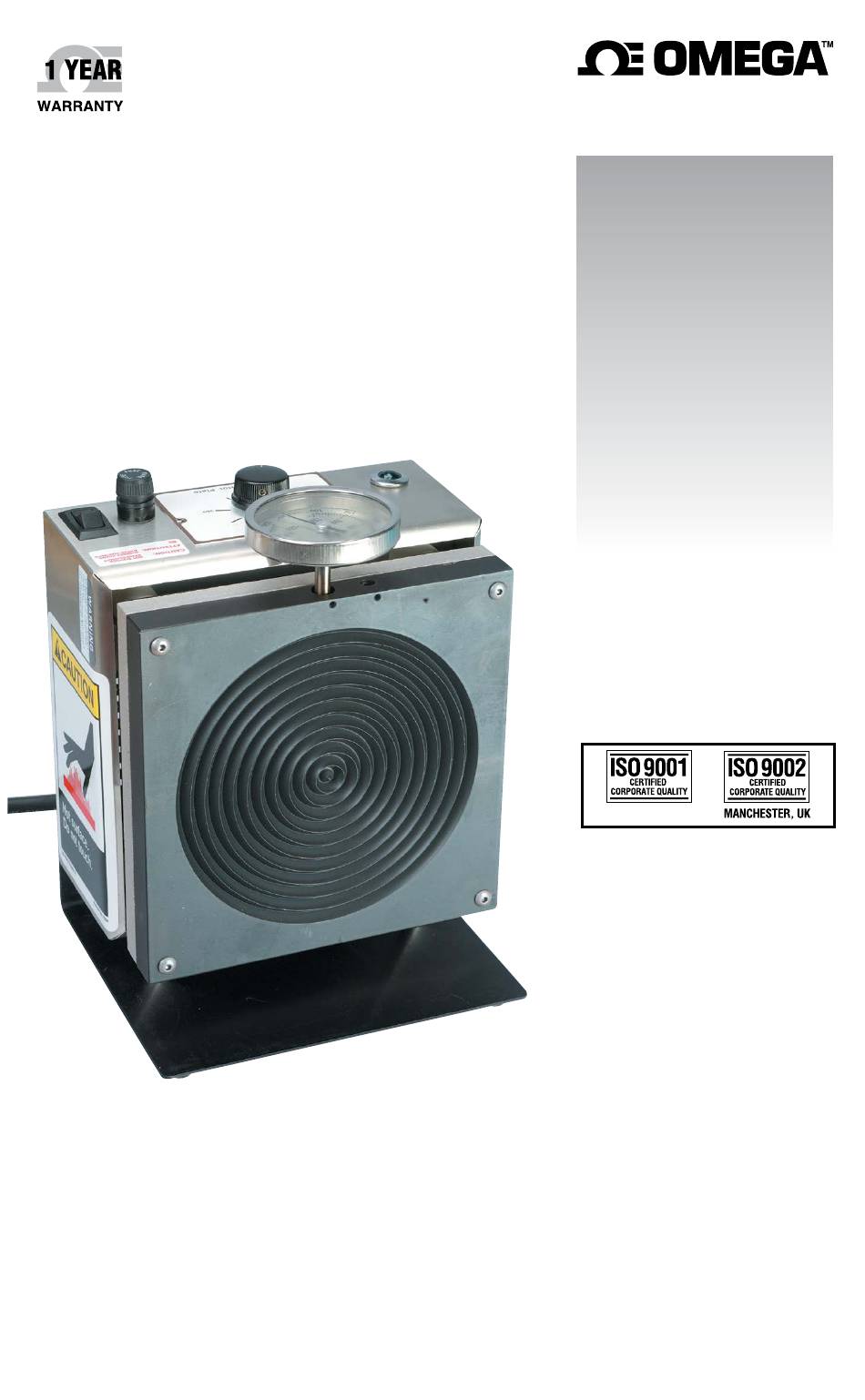

- Page 1 User’s Guide Shop online at omega.com e-mail: info@omega.com For latest product manuals: www.omegamanual.info NORWALK, CT BB-2A Blackbody Calibration Source...
- Page 2 Fax: (203) 359-7700 e-mail: info@omega.com For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Table Of Contents
BB-2A Blackbody Reference TABLE OF CONTENTS SECTION PAGE Section 1 Introduction ..............1-1 General Description ........... 1-1 Safety Warnings and I.E.C. Symbols ....... 1-1 Section 2 Installation ..............2-1 Unpacking and Inspection ........2-1 Mounting ..............2-1 Power Connection ............2-2 Section 3 Parts and Features ............ - Page 4 BB-2A Blackbody Reference LIST OF FIGURES FIGURE PAGE BB-2A Blackbody Source Parts ..........3-1...
-
Page 5: Introduction
1.1 General Description: The Model BB-2A is a portable, rugged, bench-top, blackbody calibration source. The calibrator is used to test and calibrate infrared pyrometers. The front 159 mm (6.25”) square plate has a 133 mm ⁄... - Page 6 Introduction N O T E There are no user serviceable parts inside your unit. Attempting to repair or service your unit may void your warranty.
-
Page 7: Installation
2.2 Mounting and Setup Place the BB-2A Blackbody Reference on a sturdy surface in a vertical position and allow space on all sides of the unit for ventilation. Assemble the Dial Temperature thermometer by inserting the stem of the thermometer into the large hole in the middle of the top surface of the target plate. -
Page 8: Power Connection
Power Connection Standard (120 VAC~, 50/60 Hz models) The BB-2A comes with a standard North American 3-prong AC power cord. Do not use any other power cord other than the one provided. This cord provides the proper grounding and has been safety tested by the proper safety agencies. -
Page 9: Parts And Features
Parts and Features Section 3 - Parts and Features The BB-2A Hot plate is a general purpose temperature reference source intended for laboratory use with an operating temperature range from 66°C to 343°C (150°F to 650°F). The front target plate is heated by a resistance heater, embedded in the refractory material of the bottom plate. -
Page 10: Operation
• The BB-2A is a Class II instrument. It is intended to be oper- ated in a laboratory environment only. Never operate the unit outside or around children. -
Page 11: Maintenance
Maintenance Section 5 - Maintenance Calibration This unit has been fine tuned at the factory and calibrated to give opti- mum performance of its full temperature range. It is recommended that the unit be returned annually for re-calibration. Cleaning CAUTION Remove all electrical connections and power before attempting any maintenance or cleaning. - Page 12 Maintenance For model: BB-2A use 1 ea. 250 VAC~, T7A (Time-Lag, 7 Amp) UL./CSA APPROVED ( ⁄ ” dia. x 1 ⁄ ” long). BB-2A–230 use 1 ea. 250 VAC~, T4A (Time-Lag, 4 Amp) VDE APPROVED ( ⁄ dia. 1 ⁄...
-
Page 13: Specifications
Specifications Section 6 - Specifications Target Plate Temperature Range: 66°C to 343°C (150°F to 650°F) Ambient Environmental Conditions: Temperature: 10 to 35°C (50 to 95°F) Humidity: 0 to 90% RH, non-condensing Power: BB2A 120 VAC~, 50/60 Hz, 750W BB2A-230VAC 240 VAC~, 50/60 Hz, 750W Internal Control Sensor: Bimetallic Thermostat Accuracy:... -
Page 14: Troubleshooting Guide
Troubleshooting Guide Section 7 - Troubleshooting Guide Problem Solution 1. Unit will not turn on. a. Check all electrical connections. b. Check top panel fuse. c. Unit requires service, contact our customer service department. 2. Unit turns on but the target a. -
Page 15: Glossary Of Terms
Glossary of Terms Glossary of Terms Used in This Manual Blackbody A theoretical object that radiates the maximum amount of energy at a given temperature, and absorbs all the energy incident upon it. Calibration The process of adjusting an instrument or compiling a deviation chart so that its reading can be correlated to the actual value being measured. - Page 16 Power: 115/230V, 50/60 Hz, 400W For a complete, updated specification sheet and price on any of the calibrators listed here visit our website at www.omega.com. Please call our sale or customer service department for information and pricing on any new models available.
- Page 17 OMEGA be liable for consequential, incidental or special damages. CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity;...
- Page 18 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop online at omega.com TEMPERATURE M U Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies M U Wire: Thermocouple, RTD & Thermistor M U Calibrators & Ice Point References M U Recorders, Controllers &...
