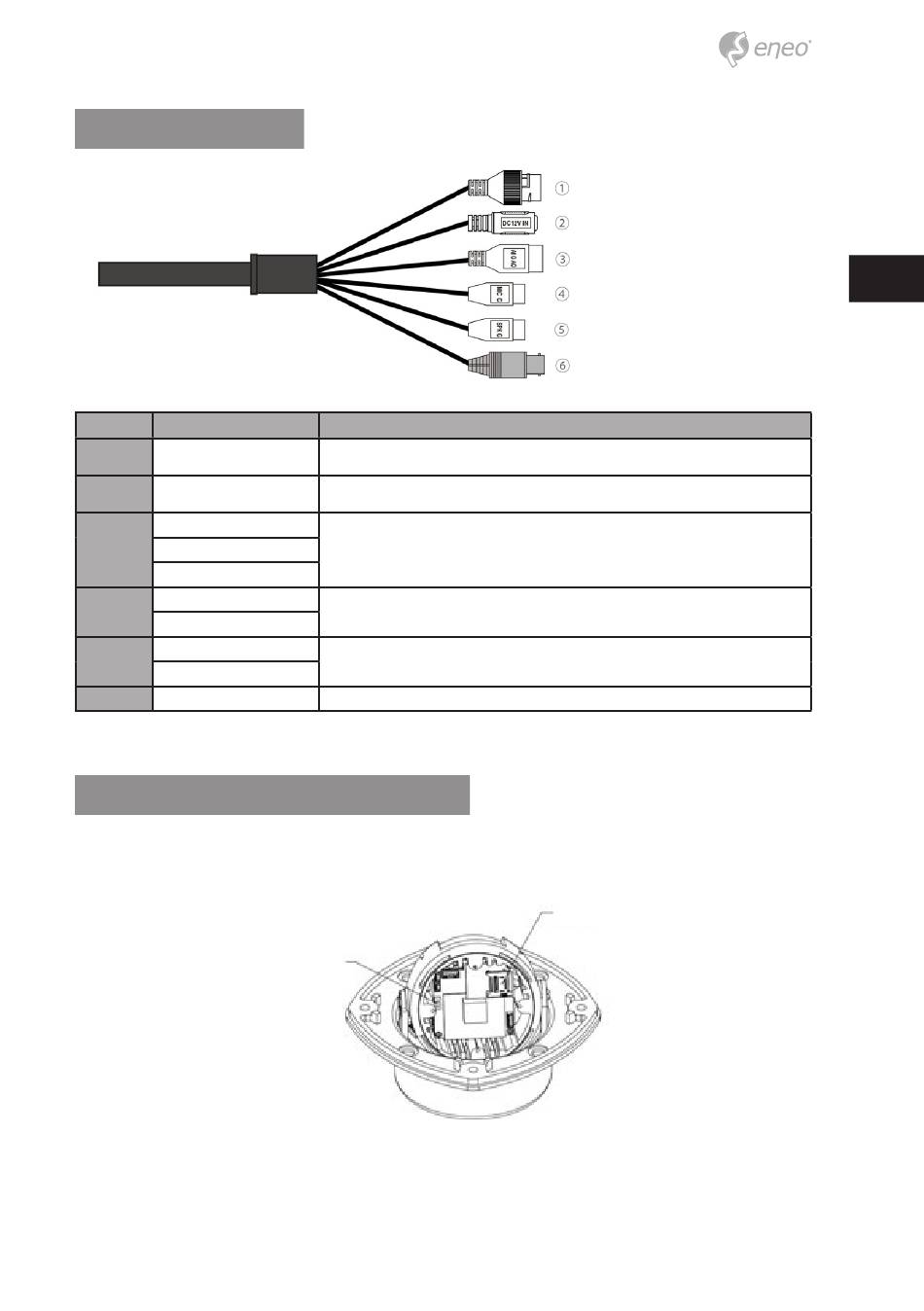

Cavo di prolunga

N.
Connettore
1
RJ-45
2
Jack CC
AI: ingresso allarme
3
G: terra
AO: uscita allarme
MIC: ingresso audio
4
G: terra
SPK: uscita audio
5
G: terra
6
BNC

Inserimento della scheda microSD

Togliere la copertura dalla parte inferiore della telecamera per inserire la scheda di
memoria microSD.
Descrizione
Porta Ethernet RJ-45 compatibile con 10/100Mbps, jack modulare PoE
Alimentazione principale, jack CC, 12 VCC
Ingresso e uscita allarme, terminale a 3 pin
Ingresso linea audio, terminale a 2 pin
Uscita linea audio, terminale a 2 pin
Uscita CVBS
Pulsante Reset
Alloggiamento scheda microSD
