- Page 1 (217) 352-9330 | Click HERE Find the Acromag / Xembedded / Xycom APCe8650 at our website:...
- Page 2 USER’S MANUAL ACROMAG INCORPORATED 30765 South Wixom Road P.O. BOX 437 Wixom, MI 48393-7037 U.S.A. Tel: (248) 295-0310 Fax: (248) 624-9234 Copyright 2016, Acromag, Inc., Printed in the USA. Data and specifications are subject to change without notice. 8500-912 D...
-
Page 3: Table Of Contents
IP Module ID Space- (Read Only) ..................... 19 IP Module I/O Space - (Read/Write) ....................19 IP Module Memory Space - (Read/Write) ..................20 GENERATING INTERRUPTS ........................20 Sequence of Events for Processing an Interrupt ................20 Acromag, Inc. Tel: 248-295-0310 - 2 - www.acromag.com... - Page 4 Connectors ............................25 Power ............................... 25 Fuses ..............................25 PCIe BUS COMPLIANCE .......................... 26 INDUSTRIAL I/O PACK COMPLIANCE ..................... 26 ENVIRONMENTAL ..........................26 Certificate of Volatility ........................... 27 Revision History ............................. 31 Acromag, Inc. Tel: 248-295-0310 - 3 - www.acromag.com...

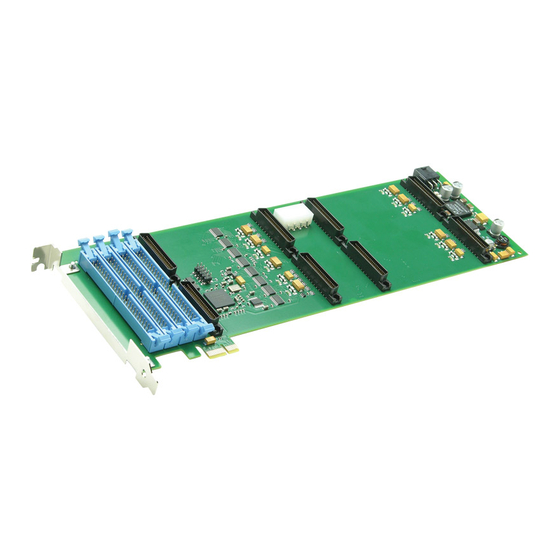

- Page 5 INDUSTRIAL I/O PACK SERIES APCe8650 PCI BUS CARRIER BOARD The information contained in this manual is subject to change without notice. Acromag, Inc. makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
-
Page 6: General Information
Interface for IP Modules – The APCe8650 provides an electrical and mechanical interface for up to four industry standard IP modules. IP Modules are available from Acromag and other vendors in a wide variety of input/output configurations to meet the needs of varied applications. -
Page 7: Pci Express Bus Interface Features
SIGNAL INTERFACE PRODUCTS This IP carrier board will mate directly to all industry standard IP modules. Acromag provides the following interface products (all connections to field signals are made through the carrier board which passes them to the individual IP modules):... -
Page 8: Supported Operating Systems
For repairs to a product damaged in shipment, refer to the Acromag Service Policy to obtain return instructions. It is suggested that salvageable shipping Acromag, Inc. -
Page 9: Card Cage Considerations
See diagram 4502-135 located in the drawings portion of this manual for jumper location and settings. The jumper must be present in one of the two configurations for proper board operation. Factory default is memory space disabled. Acromag, Inc. Tel: 248-295-0310 - 8 - www.acromag.com... -
Page 10: Interrupt Configuration
IP modules. This provides excellent connection integrity and utilizes gold plating in the mating area. Threaded metric M2 screws and spacers (supplied with Acromag IP modules) provide additional stability for harsh environments (see Drawing 4502-148 for assembly details). -
Page 11: Pci Express Bus Connections
IP modules. This provides excellent connection integrity and utilizes gold plating in the mating area. Threaded metric M2 screws and spacers (supplied with Acromag IP modules) provide additional stability for harsh environments (see Drawing 4502-148 for assembly details). -
Page 12: Field Grounding Considerations
This is particularly important for analog I/O applications when a high level of accuracy/resolution is needed (12-bits or more). Contact your Acromag representative for information on our many isolated signal conditioning products that could be used to interface to the IP input/output modules. -
Page 13: Data Transfer Timing
This Section provides the specific information necessary to program and operate the APCe8650 non-intelligent carrier board. This Acromag APCe8650 is a PCIe Specification version 1.1 compliant PCIe bus slave carrier board. The carrier connects a PCIe host bus to the IP module’s 16-bit data bus per the Industrial I/O Pack logic interface specification on the mezzanine (IP) boards that are installed on the carrier. -
Page 14: Configuration Transactions
Configuration Address space. This PCI carrier provides 256 bytes of configuration registers for this purpose. The PCI carrier contains the configuration registers, shown in Table 3-2, to facilitate Plug-and-Play compatibility. Acromag, Inc. Tel: 248-295-0310 - 13 - www.acromag.com... -
Page 15: Memory Map
000B IP B Interrupt 1 Select Space 000A 000D IP C Interrupt 0 Select Space 000C 000F IP C Interrupt 1 Select Space 000E 0011 IP D Interrupt 0 Select Space 0010 Acromag, Inc. Tel: 248-295-0310 - 14 - www.acromag.com... - Page 16 037F 037E 0381 Not Used Not Used 0380 07FFFFF 07FFFFE 0800001 IP A 0800000 Memory Space 0FFFFFF 0FFFFFE 1000001 IP B 1000000 Memory Space 17FFFFF 17FFFFE Acromag, Inc. Tel: 248-295-0310 - 15 - www.acromag.com...
- Page 17 Table 3-3. A 32-bit PCI bus access will result in two 16-bit accesses to the IP module. A 16-bit or 8-bit PCI bus access results in a single 16-bit or 8-bit access to the IP module respectively. Acromag, Inc. Tel: 248-295-0310 - 16 - www.acromag.com...
-
Page 18: Carrier Status/Control Register - (Read/Write, Pcibar2 + 00H)
When set to “1”, this bit will enable the generation of IP module interrupts. The reset condition is “0”, (IP module interrupt Write generation disabled). Interrupts must also be supported and configured in the IP modules. Acromag, Inc. Tel: 248-295-0310 - 17 - www.acromag.com... -
Page 19: Ip Interrupt Pending Register - (Read, Pcibar2 + 02H)
The Clock Control Register is used to select the clock frequency of the individual IP modules. A “0” (default) selects the 8MHz clock. A “1” selects the 32MHz clock. A reset will set all bits of this register to “0”. Acromag, Inc. Tel: 248-295-0310 - 18 - www.acromag.com... -
Page 20: Id Register - (Read/Write, Pcibar2 + 01Ah)
IP module I/O spaces are accessible at fixed offsets from PCIBar2. IP modules may not fully decode their I/O space and may use byte or word only accesses. See each IP module’s User Manual for details. Acromag, Inc. Tel: 248-295-0310 - 19 - www.acromag.com... -
Page 21: Ip Module Memory Space - (Read/Write)
The IP module receives an active INTSEL* signal from the carrier and supplies its interrupt vector to the host system during this interrupt acknowledge cycle. An IP module designed to release its interrupt request on acknowledge Acromag, Inc. Tel: 248-295-0310 - 20 - www.acromag.com... -
Page 22: Theory Of Operation
PCIe bus if an IP module that provides this isolation (between the logic and field side) is utilized. A wide variety of IP modules are currently available (from Acromag and other vendors) that interface with many external devices for digital I/O, analog I/O, and communication applications. -
Page 23: Carrier Board Registers
When an IP module places data on the bus, for all data read cycles, any undriven data lines are read by the PCI bus as high because of pull-up resisters on the carrier board’s data bus. Acromag, Inc. Tel: 248-295-0310 - 22 - www.acromag.com... -
Page 24: Carrier Board Clock Circuitry
The +5V supply lines to each of the IP modules are individually fused with a current limit of 2 amps minimum. In addition, the +12 V, and -12 V supply lines to each of the IP modules are individually fused with a current limit of 1 Acromag, Inc. Tel: 248-295-0310 - 23 - www.acromag.com... -
Page 25: Power Supply Filters
SERVICE AND REPAIR ASSISTANCE Surface-Mounted Technology (SMT) boards are generally difficult to repair. It is highly recommended that a non-functioning board be returned to Acromag for repair. The board can be damaged unless special SMT repair and service tools are used. Further, Acromag has automated test equipment that thoroughly checks the performance of each board. -
Page 26: Specifications
An email question can also be submitted from within the Knowledge Base or directly from the “Contact Us” tab. Acromag’s application engineers can also be contacted directly for technical assistance via telephone or FAX through the numbers listed below. When needed, complete repair services are also available. -
Page 27: Pcie Bus Compliance
Electric Fast Transient Immunity Designed to comply with IEC61000-4-4: 2007 Level 3 (1kV at field input and output terminals, capacitive coupling clamp used) Radiated Emissions ......Designed to comply with CISPR 16-2-3 class A Acromag, Inc. Tel: 248-295-0310 - 26 - www.acromag.com... -
Page 28: Certificate Of Volatility
Modifiable FLASH 4 Mbit Storage of FPGA Factory programmed, not accessible by configuration data user Acromag Representative Name: Title: Email: Office Phone: Office Fax: Russ Nieves Dir. of Sales solutions@acromag.com 248-295-0310 248-624-9234 Acromag, Inc. Tel: 248-295-0310 - 27 - www.acromag.com... - Page 29 Field I/O IP Module B Serial FLASH +12V Field I/O IP Module C Refclk PCIe Bus Reset Altera Cyclone Level IV FPGA Shifters Field I/O IP Module D Figure 1 APCe8650 Block Diagram Acromag, Inc. Tel: 248-295-0310 - 28 - www.acromag.com...
- Page 30 INDUSTRIAL I/O PACK SERIES APCe8650 PCI BUS CARRIER BOARD __________________________________________________________________________________________ DRAWINGS - 29 -...
- Page 31 INDUSTRIAL I/O PACK SERIES APCe8650 PCI BUS CARRIER BOARD __________________________________________________________________________________________ - 30 -...
-
Page 32: Revision History
Version EGR/DOC Description of Revision 31-MAY-11 Initial Acromag release. 18-OCT-13 Added Certificate of Volatility 29-OCT-13 Added detail to Certificate of Volatility 03-MAY-16 CAB/MJO Updated 3M P/N’s to TE Connectivity P/N’s for A-D Connectors. Updated Acromag Contact Information. - 31 -...
