ACPS3310 CompactPCI-Serial AcroPack Carrier Board
USER'S MANUAL
ACROMAG INCORPORATED
30765 South Wixom Road
Wixom, MI 48393-2417 U.S.A.
Tel: (248) 295-0310
Email: solutions@acromag.com
Copyright 2019, Acromag, Inc., Printed in the USA.
Data and specifications are subject to change without notice.
8501136A
Advertisement
Table of Contents
Related Manuals for Acromag ACPS3310
Summary of Contents for Acromag ACPS3310
- Page 1 ACPS3310 CompactPCI-Serial AcroPack Carrier Board USER’S MANUAL ACROMAG INCORPORATED 30765 South Wixom Road Wixom, MI 48393-2417 U.S.A. Tel: (248) 295-0310 Email: solutions@acromag.com Copyright 2019, Acromag, Inc., Printed in the USA. Data and specifications are subject to change without notice. 8501136A...
-
Page 2: Table Of Contents
Trademark, Trade Name and Copyright Information ................4 Radio Frequency Interference Statement ....................4 Environmental Protection Statement ..................... 4 ACPS3310 Overview ..........................4 KEY ACPS3310 FEATURES ........................5 SIGNAL INTERFACE PRODUCTS ........................ 5 Cable ..............................5 Termination Panel ..........................6 Software Support............................. - Page 3 AcroPack Series ACPS3310 CompactPCI-Serial Carrier Board Power Supply Fuses .......................... 19 SERVICE AND REPAIR ..........................19 PRELIMINARY SERVICE PROCEDURE ....................19 WHERE TO GET HELP ........................19 SPECIFICATIONS ............................. 20 PHYSICAL ..............................20 Physical Configuration ........................20 Connectors ............................20 Isolation ............................
-
Page 4: General Information
ACPS3310 Overview The ACPS3310 is a Compact Peripheral Component Interconnect – Serial (CPCI-S) card and is a carrier for mini-PCIe or AcroPack mezzanine modules. This carrier board provides a modular approach to system assembly, since each carrier can be populated with any combination of analog input/output, digital input/output, communication, etc. -
Page 5: Key Acps3310 Features
AcroPack Series ACPS3310 CompactPCI-Serial Carrier Board replace several dedicated function PCI or PCIe bus boards. The ACPS3310 non- intelligent carrier board provides impressive functionality at low cost. Model Input/Output AcroPack Slots Operating Temperature Range ACPS3310 Front I/O 2 (A, B) -40 to +85C... -
Page 6: Termination Panel
Acromag AcroPack modules. Linux Acromag provides a software product consisting of Linux software. This software (Model APSW-API-LNX) is composed of Linux libraries for all AcroPack modules, VPX I/O board products, and PCIe I/O Cards. The software is implemented as a library of “C”... -
Page 7: Preparation For Use
It is important that the user employ satisfactory overall system design. It is understood and agreed by the Buyer and Acromag that this is the Buyer's responsibility. WARNING: This board utilizes static sensitive components and should only be handled at a static-safe workstation. -
Page 8: Power And Cooling Considerations

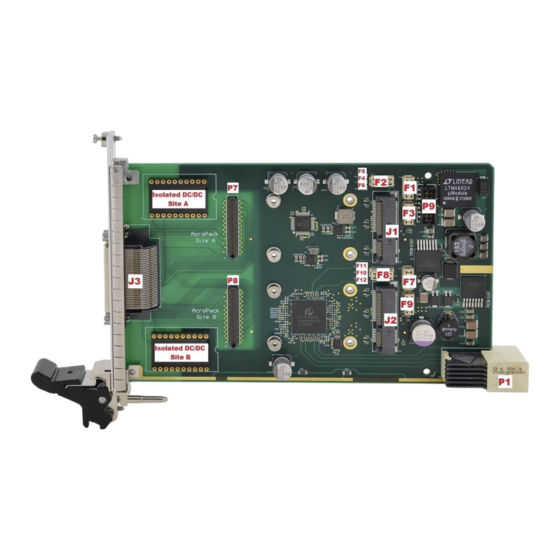

AcroPack Series ACPS3310 CompactPCI-Serial Carrier Board Figure 1 Connector and Fuse Locations Power and Cooling Considerations Refer to the specifications for loading and power requirements. Be sure that the system power supplies are able to accommodate the power requirements of the carrier board, plus the installed AcroPack modules within the voltage tolerances specified. -
Page 9: Carrier Fuses
CompactPCI-Serial Carrier Board Carrier Fuses CAUTION: Acromag has used pins labeled as reserved in the Mini-PCIe specification for additional power connections. If you are installing a Mini-PCIe card from another manufacturer in slot A remove fuses F1(+12V), F2(+5V) and F3 (-12V). When installing a Mini-PCIe card in from another manufacturer in slot B remove fuses F7(+12V), F8(+5V) and F9 (-12V). -
Page 10: Acropack Module Installation
This is particularly important for analog I/O applications when a high level of accuracy/resolution is needed (12-bits or more). Contact your Acromag representative for information on our many isolated signal conditioning products that could be used to interface to the AcroPack input/output modules. -
Page 11: Connectors
AcroPack Series ACPS3310 CompactPCI-Serial Carrier Board CONNECTORS The ACPS3310 carrier uses two AcroPack module field I/O connectors, two mini-PCIe connectors, two field I/O Champ connectors and one CompactPCI- Serial backplane connector. These are discussed in the following sections. Front Panel Field I/O Connectors Field I/O connections are made via one 68 pin, stacked, 0.8 mm Champ cable... - Page 12 AcroPack Series ACPS3310 CompactPCI-Serial Carrier Board Carrier Carrier Module Pin Field I/O Signal J3 and P7, P8 Number Termination Panel Field I/O 9 Field I/O 10 Reserved/isolation Reserved/isolation Field I/O 11 Field I/O 12 Reserved/isolation Reserved/isolation Field I/O 13 Field I/O 14...
- Page 13 AcroPack Series ACPS3310 CompactPCI-Serial Carrier Board Carrier Carrier Module Pin Field I/O Signal J3 and P7, P8 Number Termination Panel Reserved/isolation Field I/O 27 Field I/O 28 Reserved/isolation Reserved/isolation Field I/O 29 Field I/O 30 Reserved/isolation Reserved/isolation Field I/O 31...
-
Page 14: Mini-Pcie Connectors
AcroPack Series ACPS3310 CompactPCI-Serial Carrier Board Carrier Carrier Module Pin Field I/O Signal J3 and P7, P8 Number Termination Panel Reserved/isolation Reserved/isolation Field I/O 45 Field I/O 46 Reserved/isolation Reserved/isolation Field I/O 47 Field I/O 48 Reserved/isolation Reserved/isolation Field I/O 49... -
Page 15: Compactpci-Serial Backplane Connections
AcroPack Series ACPS3310 CompactPCI-Serial Carrier Board Table 3 Mini-PCIe Connectors J1 and J2 Pin Assignments Pin # Name Pin # Name +3.3V +12V -12V +1.5V Present N.C. (LED_WPAN#) N.C. (LED_WLAN#) +3.3V N.C. (LED_WWAN#) +3.3V USB_D+ USB_D- PETp0 PETn0 SMB_DATA SMB_CLK +1.5V... - Page 16 AcroPack Series ACPS3310 CompactPCI-Serial Carrier Board Refer to the PICMG CPCI-S specification for additional information on the CPCI-S signals. Table 4 CPCI-S P1 CONNECTIONS +12V STANDBY C_SCL C_SDA 1_USB3_Tx+ 1_USB3_Tx- 1_USB2+ 1_USB2- 1_PE_Tx00+ 1_PE_Tx00- 1_PE_Tx02+ 1_PE_Tx02- +12V +12V reserved reserved...
-
Page 17: Jtag Programming/Debug Connector
JTAG Programming/Debug Connector A JTAG programming/debug connector is provided for developing applications that use Acromag’s FPGA AcroPack modules. See reference designator P9 in Figure 1. This is a standard 14-pin Xilinx programming header for connecting a Xilinx Platform USB II programming device (or equivalent). The pin assignment for P9 is shown in Table 5. -
Page 18: Theory Of Operation
AcroPack Series ACPS3310 CompactPCI-Serial Carrier Board TMS – JTAG Test Mode Select. This pin is the JTAG mode signal establishing appropriate TAP state transitions for target ISP devices sharing the same data stream. TCK – JTAG Test Clock. This pin is the clock signal for JTAG operations and should be connected to the TCK pin on all target ISP devices sharing the same data stream. -
Page 19: Pcie Switch
Important Note: The ACPS3310 board is not hot-swappable. DC/DC Converter The ACPS3310 has four DC/DC converters to provide the power supply voltages to the AcroPack modules that are not present on the CPCI-S backplane. The +3.3 Volt, +5 Volt and -12 Volt supplies are sourced from +12 Volt power. -
Page 20: Service And Repair
4. SERVICE AND REPAIR Surface-Mounted Technology (SMT) boards are generally difficult to repair. It is highly recommended that a non-functioning board be returned to Acromag for repair. The board can be damaged unless special SMT repair and service tools are used. Further, Acromag has automated test equipment that thoroughly checks the performance of each board. -
Page 21: Where To Get Help
Go to the “Support” tab or your specific AcroPack model ordering page. Acromag’s application engineers can also be contacted directly for technical assistance via email, telephone, or FAX through the contact information listed below. Note that an email question can also be submitted from within the Knowledge Base or directly from the “Contact Us”... -
Page 22: Isolated Power
AcroPack. Isolated Power The use of an optional isolated DC/DC Converter is required for use with isolated Acromag AcroPack modules. See section 2 and Figure 1 for carrier board locations of the isolated DC/DC converters corresponding to each AcroPack module. -
Page 23: Cpci-S Compliance
Note: This is a Class A product Vibration and Shock Standard The ACPS3310 is designed to pass the following Vibration and Shock standards. Vibration, Sinusoidal Operating ..Designed to comply with IEC 60068-2-6: 10-500Hz, 5G, 2 Hours/axis Vibration, Random Operating ..Designed to comply with IEC 60068-2-64: 10-500Hz, 5G-rms, 2 Hours/axis Shock, Operating ...... -
Page 24: Certificate Of Volatility
AcroPack Series ACPS3310 CompactPCI-Serial Carrier Board 6. CERTIFICATE OF VOLATILITY Certificate of Volatility Acromag Model Manufacturer: ACPS3310 Acromag, Inc. 30765 Wixom Rd Wixom, MI 48393 Volatile Memory Does this product contain Volatile memory (i.e. Memory of whose contents are lost when power is removed) ■... -
Page 25: Revision History
AcroPack Series ACPS3310 CompactPCI-Serial Carrier Board 7. REVISION HISTORY The following table shows the revision history for this document: Release Date Version EGR/DOC Description of Revision 26-JUL-2018 Preliminary release. 23-APR-2019 ENZ/ARP Release. - 25 -...
