Acromag 961EN-4006 User Manual

Busworks 900en series – modbus tcp/ip 10/100m industrial ethernet i/o modules
Hide thumbs
Table of Contents

Advertisement

Quick Links

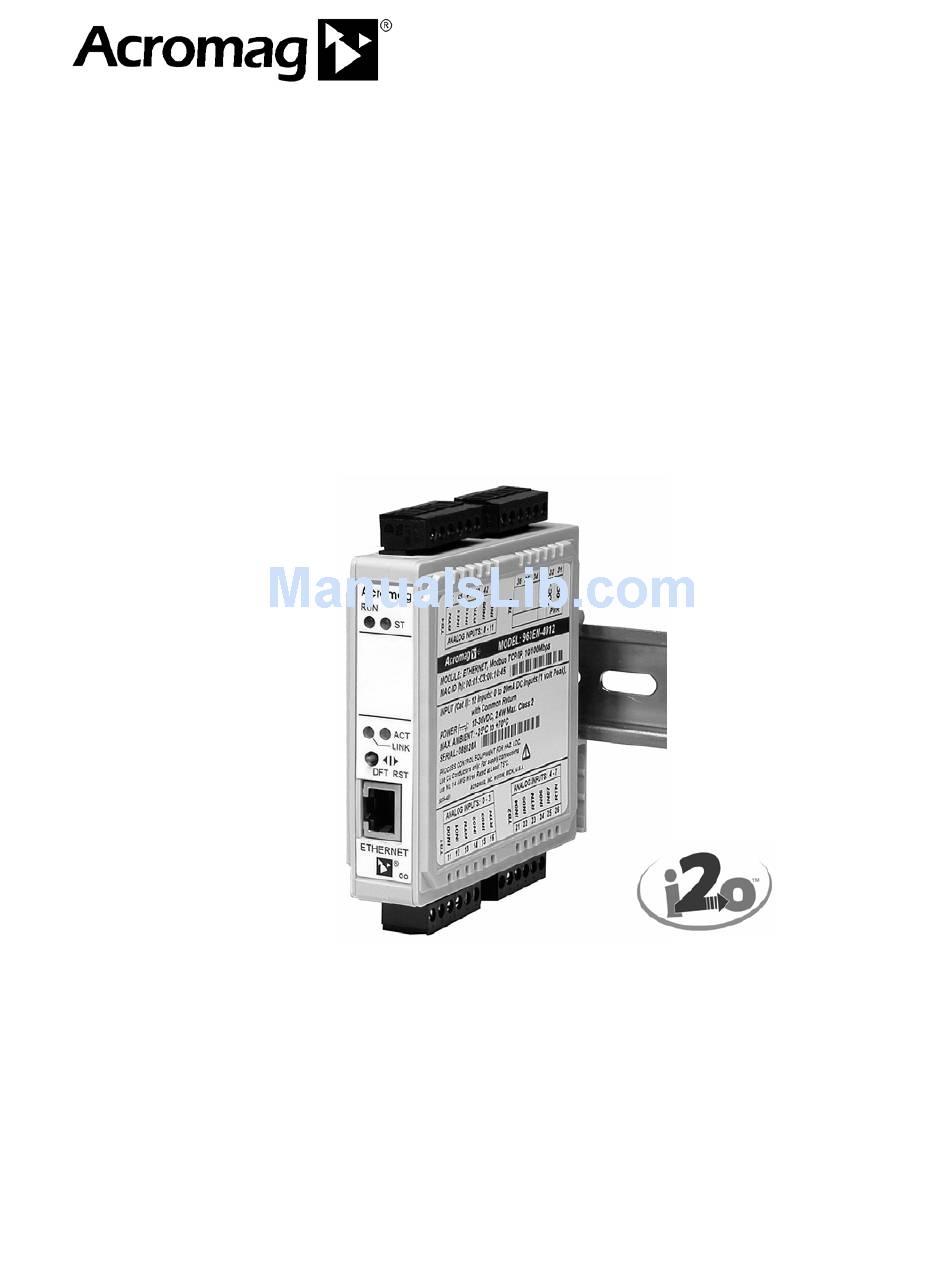

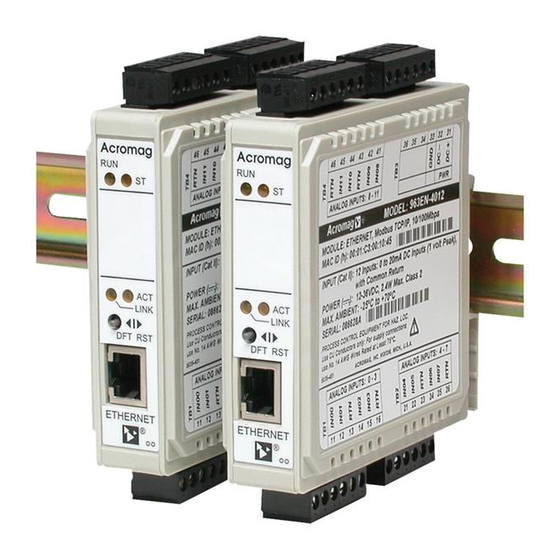

BusWorks® 900EN Series – Modbus TCP/IP
10/100M Industrial Ethernet I/O Modules
Model 961EN-4006 Six Differential Current Inputs
Model 962EN-4006 Six Differential Voltage Inputs
USER'S MANUAL
ACROMAG INCORPORATED
Tel: (248) 624-1541
30765 South Wixom Road
Fax: (248) 624-9234
P.O. BOX 437
Wixom, MI 48393-7037 U.S.A.
Copyright 2003, Acromag, Inc., Printed in the USA.
8500-720-E06B001
Data and specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 961EN-4006 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acromag 961EN-4006

Summary of Contents for Acromag 961EN-4006

  • Page 1 Model 962EN-4006 Six Differential Voltage Inputs USER’S MANUAL ACROMAG INCORPORATED Tel: (248) 624-1541 30765 South Wixom Road Fax: (248) 624-9234 P.O. BOX 437 Wixom, MI 48393-7037 U.S.A. Copyright 2003, Acromag, Inc., Printed in the USA. 8500-720-E06B001 Data and specifications are subject to change without notice.

  • Page 2: Table Of Contents

    This is very important where property loss or human life is Symbols on equipment: involved. It is important that you perform satisfactory overall system design and it is agreed between you and Acromag, that this is your responsibility. GETTING STARTED MOUNTING AND DIMENSIONS………………………...

  • Page 3: Mounting And Dimensions

    The input circuit, network, and INPUTS 4, 5 power circuit are isolated from TRANSFORMER 5V/3V each other for safety and noise TRANSFORMER immunity. 961/962EN ISOLATION DIAGRAM INPUTS 0, 1 INPUTS 2, 3 ANALOG I/O ANALOG I/O _______________________________________________________________________________________ Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:sales@acromag.com http://www.acromag.com...

  • Page 4: Connections

    FOR DIRECT PC TO when connecting to a hub or PINS: 1 TO 3 ETHERNET MODULE switch port, which are 2 TO 6 CONNECTIONS 3 TO 1 generally wired MDI-X. 6 TO 2 _______________________________________________________________________________________ Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:sales@acromag.com http://www.acromag.com...
  • Page 5 THE USE OF STRAIGHT-THROUGH (MDI) AND CROSSOVER (MDI-X) UP TO 100 METERS CABLE CONNECTIONS. Acromag (Straight-Through or Crossover Cable) Acromag offers a straight-through patch cable (Model 5035-355), or a ETHERNET crossover cable (Model 5035-360) for use with Series 9xxEN modules. CAT-5 UTP CABLE LINK...

  • Page 6: Power

    BLACK WIRE (-) Connections to an optional AC 2-WIRE XMTR current sensor or two-wire IN0+ IN0+ transmitter (961EN Only) IN0- IN0- IN1+ IN1+ IN1- IN1- NOTE 1 AC CURRENT 2-WIRE TRANSMITTER (961EN) SENSOR INPUT (961EN) _______________________________________________________________________________________ Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:sales@acromag.com http://www.acromag.com...

  • Page 7: Earth Ground

    Failure to use good The plastic module housing does not require earth ground. wiring and grounding practices may be unsafe and hurt performance. _______________________________________________________________________________________ Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:sales@acromag.com http://www.acromag.com...

  • Page 8: Web Browser

    Then the password and username will revert to the original defaults noted above, allowing you to re-invoke the Password Configuration Page and change the username and password settings as required. _______________________________________________________________________________________ Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:sales@acromag.com http://www.acromag.com...

  • Page 9: Password Configuration Page

    You can click the “Network Configuration Page” button to set the network Network Configuration configuration parameters for the module. You may have to consult your network administrator for help to complete the contents of this page. _______________________________________________________________________________________ Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:sales@acromag.com http://www.acromag.com...
  • Page 10 128.1.1.100 (refer to product side label). may take from 3-30 seconds to boot upon power-up, NOTE: In order to network your PC with an Acromag module, you may have depending on your network to consult with your network administrator and either temporarily change...
  • Page 11 In this mode, the module’s green RUN LED will blink to confirm identification as an aide to locating a specific module on a network. Refer to the Technical Reference section of this manual to learn more about IP Addressing terms and concepts. _______________________________________________________________________________________ Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:sales@acromag.com http://www.acromag.com...

  • Page 12: I/O Mapping Page (Optional I2O Function)

    The I/O Mapping Page of model 962EN-4006 is slightly different than the +163.835% (+32767 decimal). 961EN-4006 as it requires that the mapping method be selected. That is, For example, -100%, 0% & the 962EN input signal range is bipolar and you must additionally select...

  • Page 13: Test Page

    Test Page shown at left to operate your module. The Test Page will allow you to read inputs and change input ranges on this model. _______________________________________________________________________________________ Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:sales@acromag.com http://www.acromag.com...
  • Page 14 For the 962EN, you may select ±10V, ±5V, ±2.5V, ±1.25V, ±625mV, ±313mV, ±156mV, or ±78mV DC voltage ranges. Note that your range selection will apply to all channels of the group. Click on “submit” to execute your range change. _______________________________________________________________________________________ Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:sales@acromag.com http://www.acromag.com...

  • Page 15: Calibration Page

    The following table gives the calibration values for the input ranges of these models. These are the input signals required to calibrate the range endpoints. Note that on the 961EN-4006, the 4-20mA range is a sub-range of the 0-20mA range and is automatically calibrated at the same time.

  • Page 16: Input Calibration

    BusWorks® 961/962EN User’s Manual Modbus TCP/IP Differential I/V Input __________________________________________________________________ WEB BROWSER Model 961EN-4006 Range ZERO Calibration FS Calibration 0-20mA DC, 4-20mA DC 1.0mA 20.0mA 0-11.17mA DC 1.0mA 11.17mA Input Calibration 0-1mA DC 0.25mA 1.00mA Model 962EN-4006 Range ZERO Calibration FS Calibration ±10V DC...

  • Page 17: Troubleshooting

    Missing earth ground Connect earth ground to exchange the module with a connection. TB3-33 GND terminal known good unit. Acromag’s adjacent to power terminal. Application Engineers can Cannot Browse Your browser may be Temporarily disable the use provide further technical Module.

  • Page 18: Trouble Browsing Your Module

    (located on the CDROM shipped SHOOTING with your module or via download from our web site at www.acromag.com). This document gives details for changing your PC’s TCP/IP configuration in order to communicate with your module (see TCP/IP Properties of Network Configuration in Windows).

  • Page 19: Technical Reference

    TCP default port number 502. • I/O Mapping (i2o) Feature – I/O Mapping feature allows the inputs of this device to control the outputs of an Acromag 972EN-400x or 973EN-400x analog output module. • Built-In Web Pages - Allows unit to optionally be configured, controlled, calibrated, and monitored with a standard web browser over ethernet.

  • Page 20: How It Works

    1, and 2 may be configured differently from channel 3, 4, and 5. Inputs are not isolated channel-to-channel, except for small common mode voltage differences in the range of ±5V (961EN), or ±12V (962EN). _______________________________________________________________________________________ Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:sales@acromag.com http://www.acromag.com...

  • Page 21: About Modbus Tcp/Ip

    Acromag’s 913/914MB ModBus modules. The operation over Ethernet is essentially transparent to the Modbus register/command structure. If you are already familiar with Modbus or with Acromag Series 900MB modules, then you are already familiar with the operation of the 961/962EN modules.
  • Page 22 (10000000.00000001.00000001.01100100) for any other purpose may Subnet Address: 128.1.1.0 (1000000.00000001.00000001.00000000) yield poor performance. Subnetwork address 128.1.1.0 has 254 possible unique node addresses. We are using node 100 of 254 possible for our module. _______________________________________________________________________________________ Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:sales@acromag.com http://www.acromag.com...

  • Page 23: Dynamic Host Configuration Protocol

    IP address. The DNS is actually a distributed database of domain names and corresponding IP addresses. The DNS allows us to use Acromag.com as an IP address rather than a complicated string of numbers. Note that name servers contain information on some segment of the domain name space and make this information available to clients called resolvers.

  • Page 24: Register Mirroring

    03 (Illegal Data Value) will be returned in the response message. You may refer to the Modbus specification for a complete list of possible error codes. 961EN-4006 Report Slave ID Example Response FIELD DESCRIPTION...

  • Page 25: Data Types

    “Write Multiple Coils” function for that. Note that with respect to Acromag 9xxMB Modbus RTU modules, only 3xxxx Input Registers are mirrored into 4xxxx space, not Coil or Input Status registers as noted here for 9xxEN models.

  • Page 26: Register Map

    BusWorks® 961/962EN User’s Manual Modbus TCP/IP Differential I/V Input __________________________________________________________________ The following table outlines the register map for the Model 961EN-4006 and Register Map 962EN-4006 network input modules. The Modbus functions operate on these registers using the data types noted above (except for the Reset Slave Model 961EN-4006 and Report Slave ID functions).
  • Page 27 1=±5V 0010 2=0-11.17mA 2=±2.5V 0011 3=0-1mA 3=±1.25V 0100 Reserved 4=±625mV 0101 Reserved 5=±313mV 0110 Reserved 6=±156mV 0111 Reserved 7=±78mV 1000-1111 Reserved 0001 Input Range Format is same as Above. 40002 (CH 3,4,5 ) _______________________________________________________________________________________ Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:sales@acromag.com http://www.acromag.com...
  • Page 28 This register operation will be degraded. is not This register always reads back 0. maintained After a reset, this register is set back to 0 in flash. (write protection enabled and no wink). _______________________________________________________________________________________ Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:sales@acromag.com http://www.acromag.com...
  • Page 29 CH1 Cal Lo Raw A/D Count Value (See Note 2). 40045 Range 3 0-1mA (961EN) or ±1.25V (962EN) 40046 002D CH1 Cal Hi Raw A/D Count Value (See Note 2). Range 4 ±625mV (962EN) _______________________________________________________________________________________ Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:sales@acromag.com http://www.acromag.com...
  • Page 30 Raw A/D Count Value (See Note 2). Range 0 0-20mA (961EN) or ±10V (962EN) 40071 0046 CH3 Cal Lo Raw A/D Count Value (See Note 2). Range 0 0-20mA (961EN) or ±10V (962EN) _______________________________________________________________________________________ Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:sales@acromag.com http://www.acromag.com...
  • Page 31 0-1mA (961EN) or ±1.25V (962EN) CH4 Cal Hi 40094 005D Raw A/D Count Value (See Note 2). Range 4 ±625mV (962EN) 005E CH4 Cal Lo Raw A/D Count Value (See Note 2). 40095 Range 4 ±625mV (962EN) _______________________________________________________________________________________ Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:sales@acromag.com http://www.acromag.com...
  • Page 32 Ideal A/D Count Value (See Note 2). 40119 Range 0 Lo 0-20mA (961EN) or ±10V (962EN) 40120 0077 Ideal Ideal A/D Count Value (See Note 2). Range 1 Hi 4-20mA (961EN) or ±5V (962EN) _______________________________________________________________________________________ Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:sales@acromag.com http://www.acromag.com...
  • Page 33 Register (Register 40021) before attempting calibration. This block Refer to Register Mirroring. 3xxxx Input 43001 Mirrors Registers are mapped to the 43xxx 3xxxx Holding Register space using an address Registers. offset of 43000. _______________________________________________________________________________________ Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:sales@acromag.com http://www.acromag.com...

  • Page 34: Specifications

    A/D converter. An optional external sensor is required to monitor AC current signals (Acromag Model 5020-350). This sensor generates a DC milliampere signal of 0 to 11.17mA for the module (see Table 1 below for scaling to AC current).

  • Page 35: General Specifications

    Measurement Temperature Drift: Better than ±50ppm/°C (±0.005%/°C). Analog to Digital Converter (A/D): A 16-bit Σ-∆ converter. Resolution: 0.005% or 1 part in 20000 (961EN), 0.0025% or 1 part in 40000 (962EN, full bipolar range). _______________________________________________________________________________________ Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:sales@acromag.com http://www.acromag.com...

  • Page 36: Agency Approvals

    TVS). Connections are wired MDI, as opposed to MDI-X. You must use a CAT-5 crossover cable to connect this module to a PC. Otherwise you may use an auto-crossing Ethernet switch, such as the Acromag 900EN-S005 to make connections. RJ-45 Signal (MDI)

  • Page 37: Environmental

    Electrical Fast Transient Immunity (EFT): 2KV to power, and 1KV to cases. signal I/O per EN61000-4-4. Conducted RF Immunity (CRFI): 10V rms, 150KHz to 80MHz, per EN61000-4-6. Surge Immunity: 0.5KV per EN61000-4-5. _______________________________________________________________________________________ Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:sales@acromag.com http://www.acromag.com...

  • Page 38: Ethernet Interface

    Port Status Indicators: Green LED indicates link status (ON if auto- negotiation has successfully established a connection), yellow LED indicates activity (ethernet connection is busy/traffic is present). Refer to Acromag Application Address: As shipped from the factory, the IP address is static and set to Note 8500-734 for instructions 128.1.1.100.

  • Page 39: Controls & Indicators

    RJ45 sockets. The socket shield may make direct contact with earth ground, or it may be capacitively coupled to earth ground. In the Acromag 9xxEN modules, it makes contact with earth ground via a high voltage capacitor and transient voltage suppressor.
  • Page 40 Note that you do not need to use a crossover cable to connect your PC to this module if the Acromag 900EN-S005 switch is used between the PC and module, as the switch is auto-crossing. However, you must use a crossover cable when directly connecting your PC to a Series 9xxEN I/O Module without the use of an auto-crossing switch or hub.
