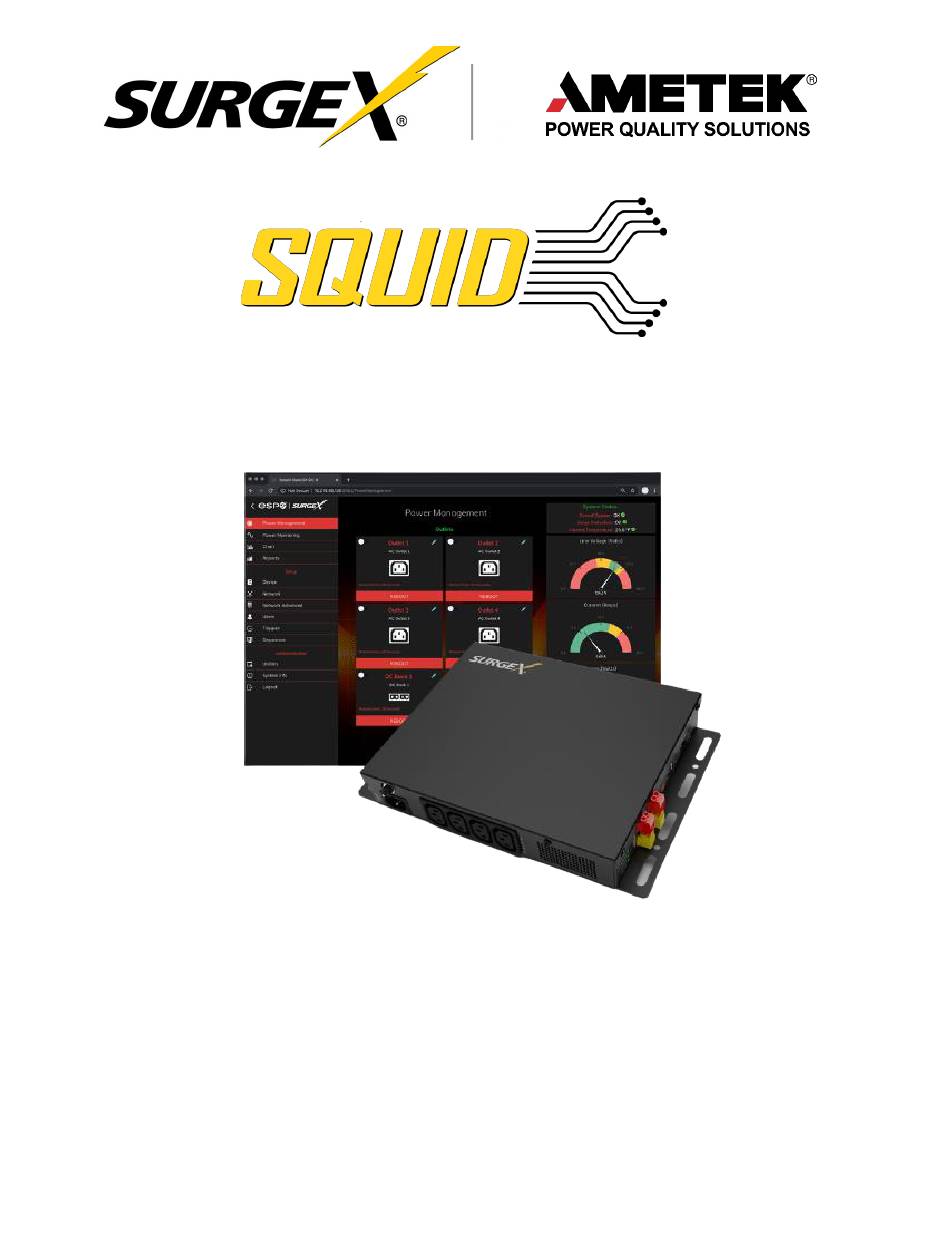

- Page 1 SX-DC-8-12-120, SX-DC-8-24-120, SX-DC-8-1224-120 SX-DC-8-12-230, SX-DC-8-24-230,SX-DC-8-1224-230 Networked Power Conditioning and Energy Management AC/DC PDU User Manual © AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com | UM-Squid-Rev-A...
- Page 2 User Manual © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com...
-
Page 3: Table Of Contents
Statement of Volatility ............................... 28 Application Programming Interfaces (APIs)..........................29 HTTP/HTTPS REST ................................29 SNMP ....................................29 Ordering Information ................................. 30 Part Number Scheme ................................. 30 Specifications..................................... 31 © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com... -
Page 4: Introduction
AC/DC converter feeding the DC Output 1 and DC Output 2 banks through the REST API. Squid models: Model DC Output 1 DC Output 2 Configuration (May be changed) 120V SX-DC-8-12-120 230V SX-DC-8-12-230 120V SX-DC-8-24-120 230V SX-DC-8-24-230 120V SX-DC-8-1224-120 230V SX-DC-8-1224-230 © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com... -
Page 5: Installation
The default username is admin, and the default password is Adm1n-XXXXXX where XXXXXX are the last six characters of the MAC address. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com... -
Page 6: Usb Otg
10 seconds, the unit resets itself to factory defaults, and all custom configurations are erased. If the button is held for less than 10 seconds, the unit will perform a software reset that will not reset any data, or power cycle the connected equipment. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com... -
Page 7: Web Server
Internet time server, and backed up by an internal battery. For the most accurate time stamps and to eliminate clock drift, we suggest verifying the NTP connection. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com... - Page 8 The minimum crest factor calculated during the measurement period. Neutral - Ground Voltage Current Energy Usage Total Device The accumulated energy consumed by connected equipment during the measurement period. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com...
-
Page 9: Setup
Threshold with Samples Configure triggers based on measurements AutoPing Configure triggers based on pinging IP addresses Schedule Configure triggers based on time Sequences Create and modify custom Sequences © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com... -
Page 10: Device Setup
Specifies how frequent the Squid will send pings to an IP Address or Hostname in an autoping Auto Ping Frequency trigger. Auto Ping Timeout Specifies the amount of time the Squid will wait for a ping response before calling the attempt a failure. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com... - Page 11 Using this setting, the outlet will still turn off during Shutdown state. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com...
- Page 12 Member Name Specifies the expected voltage on the input receptacle. This selection does NOT change any settings for over/under voltage shutoff. This is only for visual coloring on gauges. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com...
- Page 13 Time Zone Specifies the desired time zone adjustment for the Squid device. NTP Server Specifies the hostname or IP address of the NTP server to use for time synchronization. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com...
-
Page 14: Network Setup
Specifies if the web server is enabled or disabled. NOTE: If disabling the web server, the web interface and REST API will be disabled, only limited functionality over SNMP will remain if enabled. HTTP Port Port number to use for the web server. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com... -
Page 15: Network Advanced Setup
The Network Advanced Setup page allows for the specification of more advanced network security and monitoring options. 5.4.3.1 SNMP The SNMP tab allows for the specification of parameters for the SNMP agent, supporting V1 through V3. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com... - Page 16 Specifies which specific traps are to be sent. Triggers send traps for Triggering and Clearing. Manual Control sends traps for outlet state changes, and Authentication sends traps for failed authentication attempts. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com...
- Page 17 Authentication Type Specify the authentication method used during the 802.1x EAP negotiation. Different authentication options and settings will be displayed based on the selected Authentication Type. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com...
- Page 18 5.4.3.3 LDAP Client Settings The LDAP Client Settings tab allows for the specification of the LDAP Authentication server and authentication method, and a test interface to test the server setup. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com...
- Page 19 A button to send an authentication request using the given settings for the user and password above. NOTE: Settings should be saved using the “Save Settings” button at the bottom of the page before testing a configuration change. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com...
-
Page 20: Triggers Setup
Clear the device’s shutdown state. Clearing the device’s shutdown state will cause the outlets to follow the Clear Shutdown State logic defined by the On Shutdown Clear setting. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com... - Page 21 Trigger. Out Of 1 – 20 The number of consecutive measurements to be evaluated to trigger or clear the Trigger. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com...
- Page 22 Fail Count Number of consecutive failed ping responses needed to trigger the AutoPing trigger. Success Count Number of consecutive successful ping responses needed to clear the AutoPing trigger. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com...
- Page 23 A month of the year to be used in the Annually trigger. Time 12:00 AM – 11:59 PM A given time to be used in all scheduling triggers. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com...
-
Page 24: Users Setup
To run a sequence to test it, press “Run Sequence”. To edit an existing sequence, press the pencil icon. To delete a sequence, press the minus “-“ icon. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com... -
Page 25: Utilities
HTTPS is enabled. A different certificate can be uploaded for use by the HTTPS server by selecting “HTTPS SSL Certificate” under the File Type drop down. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com... -
Page 26: Backup/Restore
A soft reboot will not change the outlet state or disconnect power from connected equipment. This request will add a message in the event log “Rebooting Adapter Due to User Request”. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com... -
Page 27: Security
(HTTP) to TLS 1.2 (HTTPS), as well as change its port. These settings also apply to the REST API. • SNMP: Squid supports SNMP V3 for secure communications, with the ability to enable and disable. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com... -
Page 28: Statement Of Volatility
Model Memory Size Memory Type Volatility User Data (Bytes) SX-DC-8-12-X 128 Mb Flash Non-Volatile SX-DC-8-24-X 256 Mb SDRAM Volatile SX-DC-8-1224-X 64 Bytes SRAM Volatile 128 Bytes EEPROM Non-Volatile © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com... -
Page 29: Application Programming Interfaces (Apis)
SNMP V3 communications are intended to provide essential items for management. Read, Write, Table, and Trap objects will be included. Full protocol details, and the SNMP MIB, are available at http://www.ametekesp.com. © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com... -
Page 30: Ordering Information
24 = Dual 24V DC Banks 1224 = 12V DC Bank and 24V DC Bank Factory Default Software Configuration 120 = Set for 120V nominal voltage 230 = Set for 230V nominal voltage © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com... -
Page 31: Specifications
5.5 lb. Temperature Range: 100% Load SX-DC-8-12-X 5C to 39C SX-DC-8-24-X 5C to 47C SX-DC-8-1224-X 5C to 42C Humidity Range 0% to 95% R.H. Non-condensing Agency Listings UL/CUL/CB 62368 © 2021 AMETEK Power Quality Solutions | Technical Support 800-645-9721 | surgex.com...
