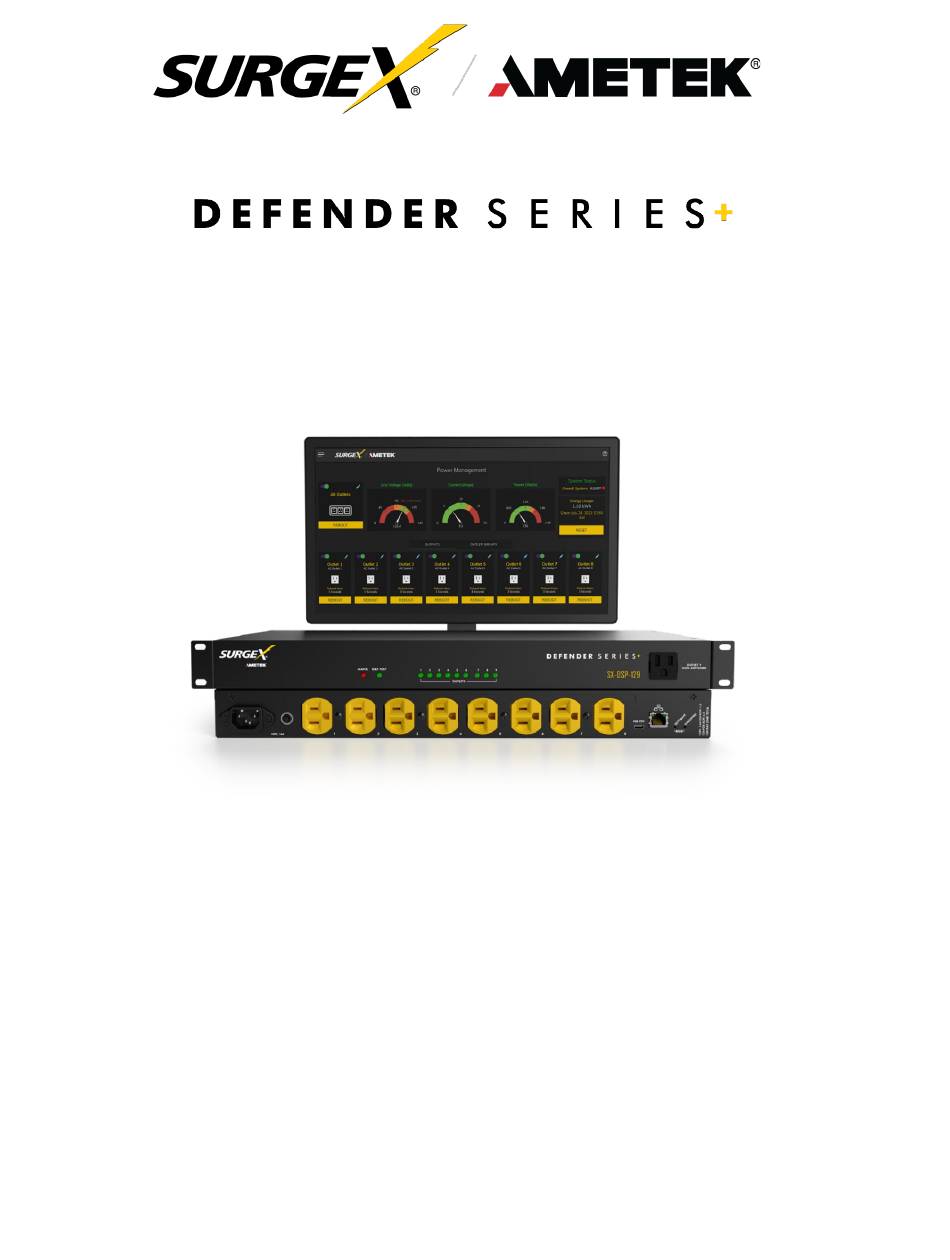

- Page 1 User Manual Switched IP Controllable Surge Protected PDU SX-DSP-129 | SX-DSP-169 | SX-DSP-109i | SX-DSP-169i © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010...
- Page 2 User Manual © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010...
-
Page 3: Table Of Contents
Sequences Setup ............................. 27 4.5 Utilities ..................................28 4.5.1 File Upload ..............................28 4.5.2 Backup/Restore .............................. 29 4.5.3 Factory Reset ..............................29 4.5.4 Soft Reboot ..............................29 Security .................................... 30 © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010... - Page 4 Application Programming Interfaces (APIs) ........................31 HTTP/HTTPS REST ..............................31 Interfaces ................................31 Part Numbers .................................. 32 Part Number Scheme ............................. 32 Troubleshooting ................................33 9. Specifications ..................................34 © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010...
-
Page 5: Introduction
User Manual Introduction The SurgeX Defender Series+ is an AC power distribution unit with power conditioning, control, and monitoring, with independently IP switchable AC receptacles and current monitoring for the inlet. Design for mounting on the rack. The internal web server provides configuration, output control, monitoring, and retrieval of data logs. -
Page 6: Rated & Maximum Current
Rated Full Load Current Maximum Current SX-DSP-129 SX-DSP-169 SX-DSP-109i SX-DSP-169i 1.4 Voltage Requirements Model Input Voltage SX-DSP-129 120V AC SX-DSP-169 120V AC SX-DSP-109i 240V AC SX-DSP-169i 240V AC © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010... -
Page 7: Installation And Components
The receptacles have individual power indicator LEDs (F). These are paralleled in the control interface. In addition, the unit has an LED indicating power (G). Self -Test is indicated by (C). © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010... -
Page 8: Buttons
If the button is held for less than 10 seconds, the unit will perform a software reset that will not reset any data or power cycle the connected equipment. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010... -
Page 9: Rack Installation
Defender Series+ is designed to be installed horizontally in the equipment rack. The supplied nuts, bolts, and washers must be used to mount the Defender Series+ to the rack through the mounting holes (A) following the appropriate local regulations and requirements. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010... - Page 10 User Manual © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010...
-
Page 11: Web Server
(RTC) synced to an Internet time server and backed up by an internal battery. For the most accurate time stamps and to eliminate clock drift, we suggest verifying the NTP connection. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010... - Page 12 The maximum crest factor calculated during the measurement period. Neutral - Ground Voltage Crest Factor Min Line Voltage The maximum crest factor calculated during the measurement period. Neutral - Ground Voltage © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010...
-
Page 13: Setup
Threshold with Samples Configure triggers based on measurements AutoPing Configure triggers based on pinging IP addresses Schedule Configure triggers based on time Sequences Create and modify custom sequences © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010... -
Page 14: Device Setup
Hostname in an AutoPing trigger. AutoPing Timeout Specifies the amount of time the Defender Series+ device will wait for a ping response before calling the attempt a failure. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010... - Page 15 Using this setting, the outlet will still turn off during Shutdown state. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010...
- Page 16 Outlet Group Configuration Item Description Group Name Specifies the name label to be associated with the outlet group. Member Name Specifies the outlet members of this outlet group. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010...
- Page 17 Specifies the desired time zone adjustment for the Defender Series+ device. Specifies the hostname or IP address of the NTP server to use for time NTP Server synchronization. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010...
-
Page 18: Network Setup
REST API will be disabled, only limited functionality over SNMP will remain enabled. HTTP Port Port number to use for the web server. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010... -
Page 19: Network Advanced Setup
The hostname or IP address of the SNMP Manager that is going to receive traps. Port The port number that the SNMP Manager is listening for traps on. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010... - Page 20 Authentication Type Specify the authentication method used during the 802.1x negotiation. Different authentication options and settings will be displayed based on the selected Authentication Type. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010...
- Page 21 %Full Name% macro, and the second part (username) is accessible with the %User Name% macro. Password The password for the given user to test the LDAP server configuration. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010...
-
Page 22: Triggers Setup
Reboot a specific outlet if the outlet configuration allows it. If an outlet is already off when this command is issued, the outlet will simply turn on after the outlet specific reboot delay time. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010... - Page 23 Clear Shutdown State Clear the device's shutdown state. Clearing the device's shutdown state will cause the outlets to follow the logic defined by the On Shutdown Clear setting. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010...
- Page 24 1-20 The number of measurements out of the given number of samples being evaluated that must meet the criteria to trigger or clear the trigger. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010...
- Page 25 Fail Count Number of consecutive failed ping responses needed to trigger the AutoPing trigger. Success Count Number of consecutive successful ping responses needed to clear the AutoPing trigger. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010...
- Page 26 A month of the year to be used in the Annually trigger. Time 12:00 AM - 11:59 PM A given time to be used in all scheduling triggers. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010...
-
Page 27: Users Setup
To run a sequence to test it, press “Run Sequence”. To edit an existing sequence, press the pencil icon. To delete a sequence, press the minus “-“ icon. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010... -
Page 28: Utilities
HTTPS certificate if HTTPS is enabled. A different certificate can be uploaded for use by the HTTPS server by selecting “HTTPS SSL Certificate” under the File type drop down. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010... -
Page 29: Backup/Restore
Series+ processor. A soft reboot will not change the outlet state or disconnect power from connected equipment. This request will add a message in the event log “Rebooting Adapter Due to User Request”. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010... -
Page 30: Security
(HTTP) to TLS 1.2 (HTTPS), as well as change its port. These settings also apply to the REST API. • SNMP: SQUID supports SNMP V3 for secure communications with the ability to enable and disable. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010... -
Page 31: Application Programming Interfaces (Apis)
SNMP V3 communications are intended to provide essential items for management. Read, Write, Table, and Trap objects will be included. Full protocol details, and the SNMP MIB, are available at https://www.ametekesp.com. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010... -
Page 32: Part Numbers
( Defender Series+ ) Rated Current 15A Max Current 15A Max Current 20A Max Current Number of Receptacles 9 Receptacles NEMA / IEC Model IEC Model (240V) blank NEMA Model (120V) © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010... -
Page 33: Troubleshooting
8) Contacting customer support - If the above troubleshooting methods do not resolve the issue, the user may be advised to contact customer support for further assistance. © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010... -
Page 34: Specifications
EN 61000-3-2:2019 + A1:2021 EN 61000-3-3:2013 + A2:2021 Surge Protection Multi Stage Surge Protection IP Protection Class IPX0 AC Power System Type Pollution Rating Pollution degree (PD) PD 2 © 2024 AMETEK SurgeX | Technical Support: 800-645-9721 | surgex.com | B01-00010...
