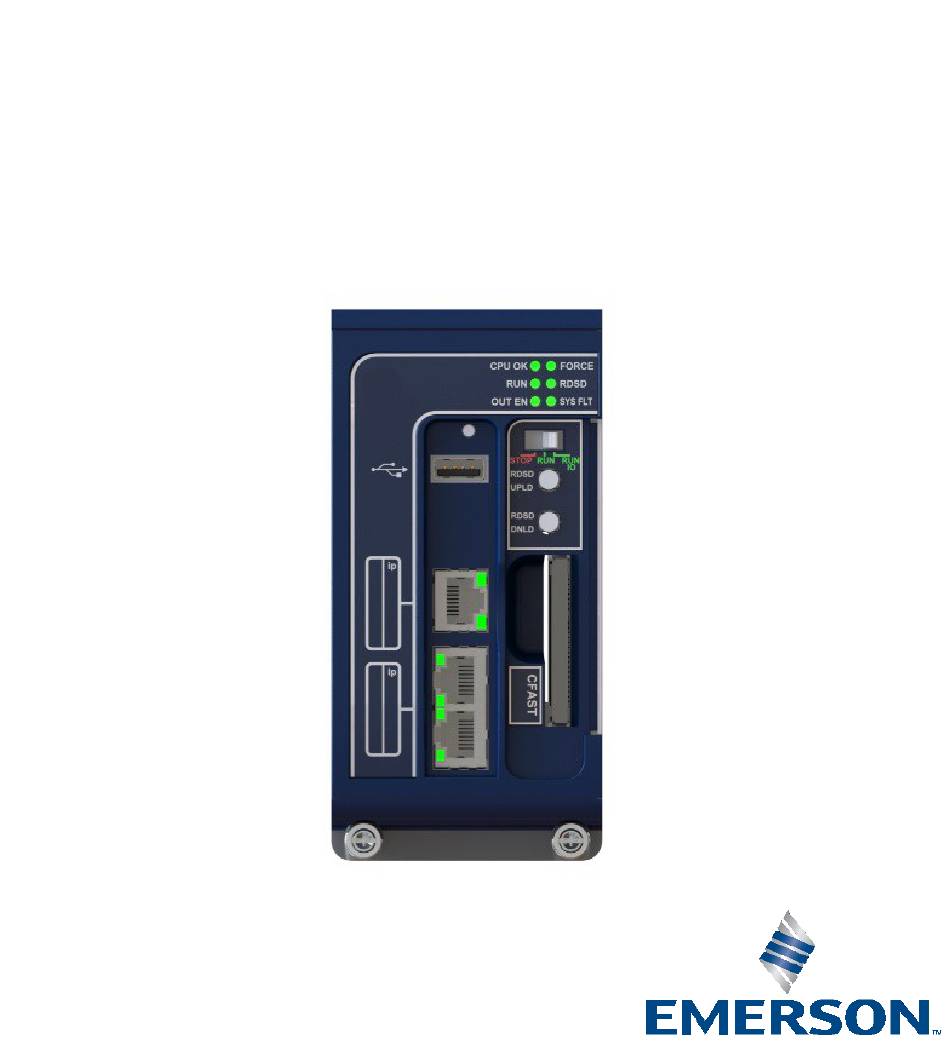

- Page 1 PACSystems™ RX3i 64 MB CPU w/Ethernet IC695CPE330 Quick Start Guide GFK-2941K Sept 2019...
-
Page 2: Table Of Contents
Contents User Features ..............3 Switches . - Page 3 Redundancy Configuration ................17 PROFINET Controller Configuration ..............18 Backward Com patibility with CPU320/CRU320/CPU315 ........18 Removable Data Storage Device (RDSD) ............21 Periodic Maintenance ........... . . 21 Real-Time Clock Battery..................21 Spare Parts ......................23 Additional Information .
-
Page 4: User Features
User Features The PACSystems™ RX3i CPE330 is a richly featured programmable controller CPU equipped with 64 Mbytes of built-in program memory and two independent high-speed Ethernet interfaces. It is ideally suited for multi-tier communications and for synchronizing large amounts of data. Its metal housing provides superior noise immunity. - Page 5 and faster are possible with 16 or fewer devices. When there are more than 16 devices configured, update rates of 16 ms and higher are available. Supports the Remote Get HART ® Device Information COMMREQ, which ▪ allows the user application to read information from a HART device connected to an RX3i Analog module in an IC695PNS001 RX3i PROFINET Scanner.
-
Page 6: Switches
Contains reference tables include 32k bits for discrete %I and %Q and up to ▪ 32k words each for analog %AI and %AQ. Bulk memory (%W) also supported for data exchanges. Supports up to 768 program blocks. Maximum size for a block is 128KB. ▪... - Page 7 RDSD Function Pushbuttons RDSD UPLD Loads user program or data from CPU to RDSD. RDSD DNLD Stores user program or data from RDSD to CPU. A three-position switch which operates as follows: Run/Stop S wi tch P osition C P U and Sweep Mode Me m ory Protection The CPU runs with I/O User program memory is read...
-
Page 8: Light-Emitting Diode Indicators (Leds)
Light-Emitting Diode Indicators (LEDs) Status Indicators LED State Operating State CPU OK CPU has passed its power-up diagnostics and Green is functioning properly. (After initialization sequence is complete.) Power is not applied, or CPU has a problem, which may be indicated by blink pattern. Blinking CPU in Stop-Halt state;... - Page 9 LED State Operating State RU N CPU is in Run mode. Green CPU is in Stop mode. OUT EN Output scan is enabled. Green Output scan is disabled. FORCE Override is active on a bit reference. Amber No Overrides active in I/O Reference Tables. RDSD USB Device detected (No Activity) Green...
- Page 10 CPE330 Ethernet Indicators LED State Operating State LINK The corresponding link is physically (upper) Green connected. Blinking Traffic is detected at the corresponding port. Green No connection detected at corresponding port. 1Gbps Corresponding network data speed is 1 (lower) Amber Gbps.
-
Page 11: Ethernet Ports
(SRTP, a proprietary Emerson protocol, used primarily for communication with the programmer). To establish Ethernet communications between PME and the CPE, Emerson recommends inserting an ETM with a known IP address into the rack to store a hardware configuration for the CPE330 with the desired IP address. - Page 12 C P E330 LAN1 C P E330 LAN2 I P A ddress: 192.168.0.100 10.10.0.100 S ubnet 255.255.255.0 255.255.255.0 Mas k: Gate way: 0.0.0.0 0.0.0.0 Figure 1: Typical Multi-Tier LAN Application A typical application will take advantage of the two independent LANs. The dedicated LAN1 port will be used for communications with plant-level or supervisory layers.
-
Page 13: Hardware Installation
As the consignee, it is your responsibility to register a claim with the carrier for damage incurred during shipment. Emerson Automation Solutions will fully cooperate with you, however, should such action be necessary. After unpacking the RX3i equipment, record all serial numbers. Serial numbers are required if you should need to contact Customer Care during the warranty period. -
Page 14: Installation In Hazardous Areas
accessible to users) and must be installed in an ultimate enclosure that is manufactured to provide safety. At a minimum, the enclosure shall provide a degree of protection against solid objects as small as 12mm (e.g. fingers). This equates to a NEMA/UL Type 1 enclosure or an IEC60529 IP20 rating providing at least a pollution degree 2 environment. -
Page 15: Atex Zone 2
• WA RNING - EXPLOSION HAZARD - SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2. • WA RNING - EXPLOSION HAZARD - WHEN IN HAZARDOUS AREAS, TURN OFF POWER BEFORE REPLACING OR WIRING MODULES. ATEX Zone 2 This module must be mounted in an enclosure certified in accordance with EN60079-15 for use in Zone 2, Group IIC and rated IP54. -
Page 16: Module Start-Up
Module Start-up You Will Need: An RX3i Universal Backplane: IC695CHS007, IC695CHS012 or ▪ IC695CHS016. This PACSystems RX3i CPU. This CPU occupies two backplane slots. ▪ An RX3i rack-mounted Power Supply Module and compatible power ▪ source or DC). A computer running PAC Machine Edition (PME) configuration and ▪... -
Page 17: Basic Installation Steps
Basic Installation Steps For startup and configuration of the CPE330, complete the following steps. For full details on CPE330 operation, refer to the PACSystems RX3i & RSTi-EP CPU Reference Manual, GFK-2222 or later. 1. Turn power off at the RX3i rack and install the CPE330 in a double- slot which is CPU-compatible (refer to PACSystems RX3i System Manual, GFK-2314 Chapter 3). -
Page 18: Redundancy Configuration
6. Using a Phillip’s head screwdriver, secure the two captive M3 x 5 mm machine screws into the matching threaded holes in the backplate of the RX3i I/O rack. The two screws are located at the bottom rear of the CPU module. Tighten. 7. -
Page 19: Profinet Controller Configuration
To enable redundancy in a CPE330 project, select the CPE330 target in the PME Navigator and use the Property Inspector to change the Enable Redundancy target property to True. PROFINET Controller Configuration PAC Machine Edition 8.60 SIM 13, PME 9.00 SIM 4 or later may be used to configure an Embedded PROFINET Controller in the CPE330 Hardware Configuration on LAN 2. - Page 20 To change the compatibility setting, perform the following operations: Power off the CPE330 and remove any USB stick that might be attached to its USB connector. Place the CPE330’s RUN/STOP switch in the STOP position. Hold down the RDSD UPLD button and turn power on to the CPE330. Continue to depress the RDSD UPLD button until the CPE330 powers up and displays one of the following patterns on the LEDs.
- Page 21 To toggle the compatibility setting, press the RDSD DNLD button. The compatibility indication will toggle between the Normal (CPU320) and CRU320 compatibility patterns each time the RDSD DNLD button is pressed. When the desired compatibility setting is displayed, press the RDSD UPLD button to save the setting and allow the CPE330 to continue its normal startup procedures with the new setting.
-
Page 22: Removable Data Storage Device (Rdsd)
The compatibility setting may be viewed at any time using the CPE330’s firmware update web page. When the compatibility setting is Normal (CPU320), the catalog number is listed as “IC695CPE330.” When the compatibility setting is CRU320 compatibility mode, the catalog number is listed as “IC695CPE330 CRU320 Compatibility Mode.”... - Page 23 missing RTC battery; however, the initial CPU time-of-day (TOD) clock information will be incorrect. Figure 2: RTC Battery There are no diagnostics or indicators to monitor RTC battery status. The RTC battery has an estimated life of 5 years and must be replaced every 5 years on a periodic maintenance schedule.
-
Page 24: Spare Parts
PACSystems RXi, RX3i & RSTi-EP Controller Secure Deployment Guide GFK-2830 PACSystems RX3i Energy Pack IC695ACC402 Quick Start Guide GFK-2939 PACSystems RX3i IC695CPE330 CPU Important Product Information GFK-2942 PACSystems RX3i & RSTi-EP CPU Programmer’s Reference Manual GFK-2950 PACSystems HART Pass Through User Manual... - Page 25 All Rights Reserved. We reserve the right to modify or improve the designs or specifications of the products mentioned in this manual at any time without notice. Emerson does not assume responsibility for the selection, use or maintenance of any product.
