Summary of Contents for Emerson Leroy-Somer R220

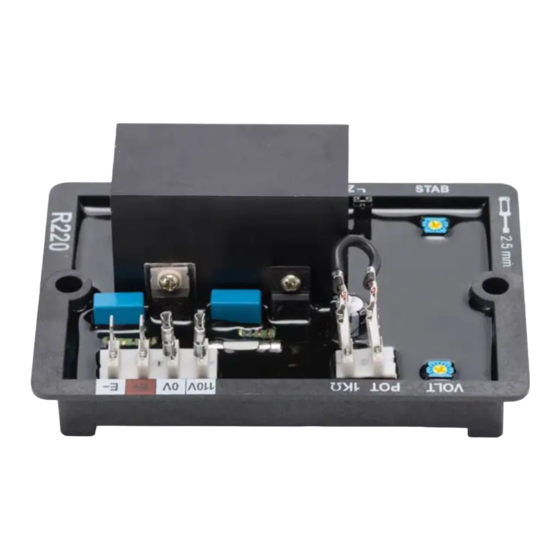

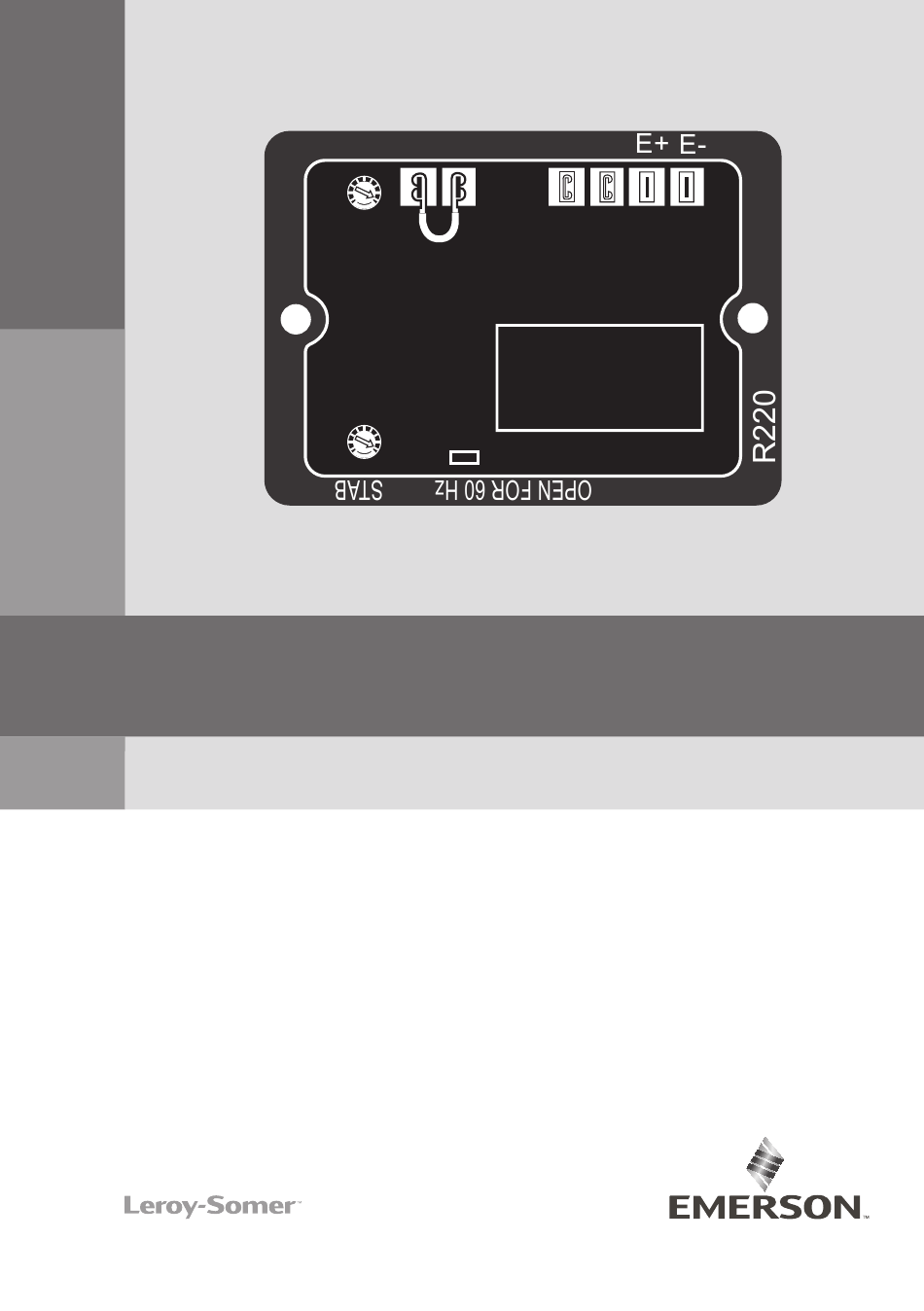

- Page 1 VOLT POT 1K A.V.R. R220 Installation and maintenance...
- Page 2 Installation and maintenance 4291 en - 2016.05 / g Electric Power Generation R220 A.V.R. This manual concerns the alternator A.V.R. which you have just purchased. We wish to draw your attention to the contents of this maintenance manual. SAFETY MEASURES Before using your machine for the first time, it is important to read the whole of this installation and maintenance manual.
-
Page 3: Table Of Contents
Installation and maintenance Electric Power Generation 4291 en - 2016.05 / g R220 A.V.R. CONTENTS 1 - SUPPLY ..........................4 1.1 - SHUNT excitation system ....................4 2 - R220 A.V.R......................... 4 2.1 - Characteristics ......................4 2.2 - R220 AVR option ......................4 3 - INSTALLATION - COMMISSIONING .................5 3.1 - Electrical checks on the AVR ..................5 3.2 - Settings ........................5... -
Page 4: Supply
Installation and maintenance 4291 en - 2016.05 / g Electric Power Generation R220 A.V.R. 1 - SUPPLY - Power supply protected by 8 A fuse, slow- blow action (tolerates 10 A for 10 s) 1.1 - SHUNT excitation system The fuse is impregnated in the resin, The alternator with Shunt excitation is self- therefore it can not be replaced. -
Page 5: Installation - Commissioning
Installation and maintenance Electric Power Generation 4291 en - 2016.05 / g R220 A.V.R. 3 - INSTALLATION - 3.2.2 - Special type of use COMMISSIONING WARNING 3.1 - Electrical checks on the AVR Excitation circuit E+, E- must not be left - Check that all connections have been open when the machine is running : AVR made properly as shown in the attached... -
Page 6: Electrical Faults
Installation and maintenance 4291 en - 2016.05 / g Electric Power Generation R220 A.V.R. 3.3 - Electrical faults Fault Action Effect Check/Cause The alternator builds up and its - Lack of residual magnetism voltage is still correct when the battery is removed. No voltage at Connect a new battery The alternator builds up but its... -
Page 7: Spare Parts
Installation and maintenance Electric Power Generation 4291 en - 2016.05 / g R220 A.V.R. 4 - SPARE PARTS 4.1 - Designation Description Type Code A.V.R. R220 AEM 110 RE 028 4.2 - Technical support service Our technical support service will be happy to provide any information you require. -
Page 8: Disposal And Recycling Instructions
Installation and maintenance 4291 en - 2016.05 / g Electric Power Generation R220 A.V.R. Disposal and recycling instructions The oil and grease from the lubrication We are committed to limit the environmental system should be considered as a hazardous impact of our activity. We continuously waste and has to be handled according to survey our production processes, material local legislation. - Page 9 Installation and maintenance Electric Power Generation 4291 en - 2016.05 / g R220 A.V.R.
- Page 10 Installation and maintenance 4291 en - 2016.05 / g Electric Power Generation R220 A.V.R.
- Page 11 Service & Support Our worldwide service network of over 80 facilities is at your service. This local presence is our guarantee for fast and efficient repair, support and maintenance services. Trust your alternator maintenance and support to electric power generation experts. Our field personnel are 100% qualified and fully trained to operate in all environments and on all machine types.
- Page 12 4291 en - 2016.05 / g...
